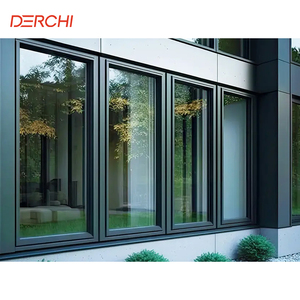

DERCHI Chian Aluminum Frame Double Glazed Casement Windows For Home Casement Window And Door
ZEKIN Modern American Design House Heat Insulation Fire Prevention Luxury Entrance Pivot Door House Front Entry Doors

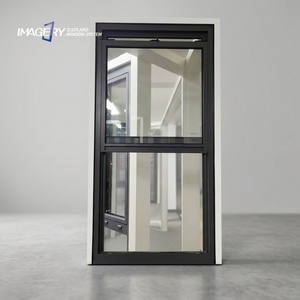

Custom Modern Vertical Sliding Aluminium Single-hung Tempered Glass Windows for Bathroom Houses
YY Windows High Quality Energy Efficient Aluminium Double Tempered Glass Patio Three Rail Sliding Doors
Bolang Aluminum Alloy Grill Roller Shutter Door Hollowed-out Remote Control Breathable Anti-theft Security Corrosion Resistant
Electric Roller Shutters Triple Glazed Windows Aluminum Profiles For House Security Awning Sliding Glass Window
Modern Large Panoramic Micro Ventilation Window Aluminum Window Double Tempered Glass for House Living Room Villa View
The Technical Standard for CE Certified Aluminium Flush Doors
In modern architectural design, the demand for frameless, flush, and minimalist fenestration solutions has transitioned from a niche luxury preference to an essential structural specification. As a leading premier manufacturer and exporter, supplying direct-to-developer and direct-to-contractor solutions worldwide, our engineering paradigm revolves around absolute compliance with European Construction Products Regulations (CPR EU No 305/2011) and the rigorous EN 14351-1 harmonized standard.
A true CE Certified Aluminium Flush Door is defined by its ability to merge frame invisibility with high structural integrity. By installing sub-frame aluminum profiles flush with plastered drywalls or architectural masonry, the door leaf sits coplanar with the adjacent wall surfaces, presenting a clean 0mm reveal. Achieving this standard requires deep metallurgical control, precise thermal break integration, and concealed heavy-duty hardware capability.
Information Gain Insight: Standard door suppliers often utilize basic architectural aluminum with post-applied surface trims. Enterprise-grade CE-certified flush door suppliers integrate extruded sub-frames crafted from high-tensile 6063-T5 aluminum alloy, utilizing polyamide thermal barrier strips (PA66GF25) to eliminate thermal bridging, control deflection under wind pressure, and guarantee acoustic insulation up to Rw 42 dB.
Structural Anatomy & Engineering Specifications
Understanding the micro-engineering behind CE-certified flush door systems is vital for specifiers, architectural firms, and procurement officers evaluating global suppliers. The structural assembly comprises three main system components:
- Concealed Structural Sub-Frame: Formed from extruded 6063-T5 aluminum profiles subjected to artificial aging for optimal yield strength. Designed to be completely embedded within wall structures, accommodating wall thicknesses from 100mm to 300mm.
- Thermally Broken Door Leaf: Utilizing dual or triple chamber aluminum profiles joined by 24mm to 34mm fiberglass-reinforced Polyamide (PA66) insulation strips. This achieves Thermal Transmittance values ($U_f$) as low as $1.3 \text{ W/m}^2\text{K}$.
- 3D Adjustable Concealed Hinges & Magnetic Locks: Invisible structural hardware capable of supporting door leaf weights up to 160kg per sash while offering 3-way millimetric adjustment ($\pm 2.5\text{mm}$ height, $\pm 1.5\text{mm}$ depth, $\pm 1.5\text{mm}$ lateral shift) to maintain perfect perimeter tolerances over decades of continuous operation.
| Performance Indicator | Test Standard | Achieved Class / Value | Architectural Relevance |
|---|---|---|---|
| Air Permeability | EN 12207 | ✓ Class 4 | Maximum airtightness; blocks drafts and HVAC energy loss. |
| Watertightness | EN 12208 | ✓ Class E900 | Resists wind-driven water ingress up to 900 Pa pressure. |
| Wind Load Resistance | EN 12210 | ✓ Class C5 / B5 | Structural stability under extreme hurricane-force pressure. |
| Acoustic Performance | EN ISO 140-3 | ✓ Rw (C; Ctr) = 42 dB | Attenuates ambient urban noise for luxury hotels & offices. |
| Operating Forces | EN 12217 | ✓ Class 1 | Effortless manual door leaf opening & closing forces. |
Procurement & Technological Trends: 2025–2030 Analysis
As building codes across the European Union, the Middle East, and North America tighten energy efficiency requirements, procurement managers must anticipate technological evolutions in aluminum door manufacturing. Below are the key industry trends shaping future procurement decisions:
1. Smart Access Integration
Future-ready flush doors feature embedded biometric scanners, motorized drop-down perimeter seals, and electromagnetic multi-point latching systems seamlessly wired inside the aluminum profile extrusions.
2. Ultra-Low Embodied Carbon
Global procurement directives prioritize suppliers utilizing hydro-electric powered aluminum smelting, increasing recycled content (post-consumer aluminum scrap) to achieve Environmental Product Declarations (EPD).
3. Fire-Rated Flush Assemblies
The convergence of zero-sightline aesthetic design with EI30 and EI60 European fire-resistance standards, utilizing intumescent core fills and fire-resistant ceramic silicate glazing units.
Why Partnering With a Direct CE-Certified Manufacturer Matters
Procuring architectural aluminum door systems for commercial, residential, or hospitality developments involves managing supply chain risk. Standard trading houses frequently white-label generic systems that fail rigorous third-party audits. As an integrated manufacturer, our facility guarantees end-to-end quality assurance:
- Precision CNC Milling: Sub-frames and door sashes are machined on 5-axis CNC processing centers, ensuring latch cutouts, hinge pockets, and drainage channels achieve sub-millimeter positioning tolerances.
- Surface Finishing Excellence: Offering Qualicoat Class 2 standard powder coatings, PVDF coatings for marine/coastal environments, and Anodizing (up to 25 microns) to protect against severe atmospheric corrosion.
- Pre-Shipment Factory Assembly: 100% of custom orders undergo preliminary factory framing, hardware alignment testing, gasket seating verification, and glass drop clearance checking before protective film wrapping and crate packing.
Frequently Asked Procurement Questions
Clear, technical answers to assist developers, architects, and procurement agents during project evaluation.
