Engineered Aluminium Double Doors & Window Systems
Explore our flagship export catalog featuring ultra-narrow sightlines, structural thermal break integration, multi-point locking security, and high wind-load ratings compliant with AS2047, ASTM, and EN standards.

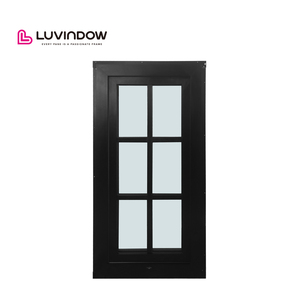

Black Wooden Windows Double Glazed Aluminum Clad Wood Burglar Proof Horizontal Opening
EBA House Australian Standard Aluminium Windows & Skylight AS2047 Fixed Roof Systems

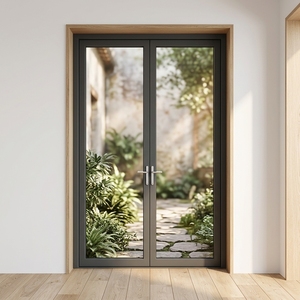

Waterproof & Thermal Insulated Aluminum Double Front Door with Multi-Point Locking System

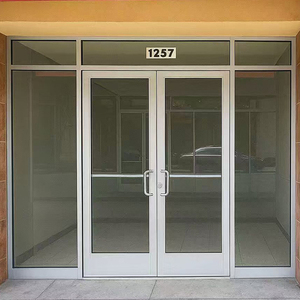

Long-Lasting Aluminum Glass Door for Shop Entrance, Professional Commercial Grade
Hotel Commercial Hurricane Impact Aluminum Triple Glass French Swing Patio Double Doors

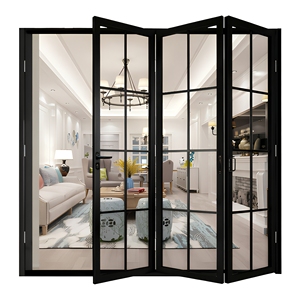

Aluminum Folding Front Entrance Door 4-Panel Glass Grille Water Resistant Villa Door
Modern Low-E Double Tempered Glass Sound Heat Insulation Swing Aluminum Casement Door

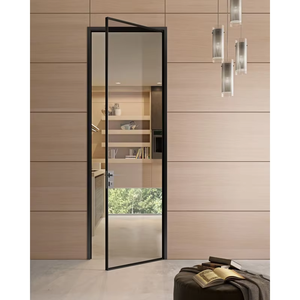

Modern French Design Narrow Frame Aluminum Glass Hinged Casement Door with Mesh
Technical Excellence: Anatomy of Premium Commercial & Residential Double Doors
Modern architectural specifications demand seamless transitions between interior spaces and exterior environments without compromising building envelope integrity. China's top-tier manufacturers lead global exports by engineering structural aluminium profile systems optimized for U-factor, Solar Heat Gain Coefficient (SHGC), and Sound Transmission Class (STC).
6063-T5 Architectural Extrusion
Utilizing primary magnesium-silicon aluminium alloy with wall thicknesses ranging from 2.0mm to 3.0mm, ensuring minimal structural deflection under high wind pressure loads up to 5000 Pa.
Polyamide Thermal Barriers
Imported PA66-GF25 (25% Glass Fiber Reinforced) thermal break strips physically isolate inner and outer aluminum extrusions, preventing thermal bridging and surface condensation.
Advanced Glazing Packages
Configuration flexibility including double/triple-pane Low-E insulated glass units (IGU), argon gas fills, laminated hurricane-impact safety layers, and warm-edge spacer technology.
Performance Specification Comparison Matrix
Use this empirical matrix to select the ideal system based on geographic climate zone and structural building codex.
| System Type | Thermal U-Value (W/m²K) | Acoustic Rating (STC) | Air Tightness Class | Water Resistance (Pa) | Primary Application |
|---|---|---|---|---|---|
| Ultra-Narrow French Double Doors | 1.4 - 1.8 | 38 - 42 dB | Class 4 (EN 12207) | 600 Pa | Luxury Villas, Patios, Coastal Residences |
| Heavy-Duty Commercial Swing Doors | 1.8 - 2.2 | 32 - 36 dB | Class 3 (EN 12207) | 450 Pa | Retail Outlets, Hotels, High-Traffic Entrances |
| Lift & Slide Double Door Systems | 1.1 - 1.5 | 40 - 45 dB | Class 4 (EN 12207) | 900 Pa | High-Rise Penthouses, Harsh Climate Zones |
| Hurricane-Impact Double Glazed Doors | 1.5 - 1.9 | 42 - 48 dB | Class 4 (EN 12207) | 1050 Pa | Tropical Cyclone Regions, Coastal Projects |
Industry Evolution & Future Trends in Aluminium Door Manufacturing (2025–2030)
Driven by global net-zero carbon mandates and contemporary architectural aesthetics, leading Chinese exporters are shifting from standard fabrication to high-precision engineering and sustainability.
1. Minimalist Sightlines & Concealed Hardware
Architects are demanding vertical interlock widths under 20mm. Micro-frame design integrates structural glass bonding techniques where the glass unit bears a fraction of dynamic wind load, allowing ultra-slim profile frames while maximizing natural daylight harvest.
2. Smart Door Access Integration
Modern double door manufacturing incorporates motorized concealed locking mechanisms, biometrics (fingerprint & facial recognition), electromagnetic multi-point latching, and seamless integration into Building Management Systems (BMS).
3. High-Durability Surface Treatments
Adoption of Qualicoat Class 2 & 3 powder coatings and 25μm fluorocarbon (PVDF) finishes guarantees color retention and corrosion resistance against salt spray for up to 30 years in extreme coastal and industrial environments.
Future Global B2B Procurement & Sourcing Strategies
Navigating international supply chains requires a shift from lowest-unit-cost evaluation to Total Cost of Ownership (TCO) and compliance risk mitigation.
Key Strategic Pillars for Global Importers & Developers
1. EPD Verification & Low-Carbon Aluminium
European and North American green building frameworks (LEED, BREEAM) now mandate Environmental Product Declarations (EPD). Sourcing aluminum double doors fabricated with hydro-powered recycled aluminum extrusions significantly lowers embodied carbon metrics.
2. BIM Integration & Digital Twin Schedules
Leading manufacturers provide Revit BIM models containing embedded metadata (thermal performance, frame geometry, hardware tolerance). This accelerates architectural approval phases and reduces site installation errors to near zero.
3. Modular Knock-Down (KD) vs. Pre-Assembled Crate Shipping
Optimizing freight economics without compromising quality: Large project developers utilize Knock-Down (KD) frame assembly with pre-cut gaskets for high container volume packing, while luxury villa projects mandate 100% pre-glazed, factory-tested assembled crates.
4. Strict Factory Acceptance Testing (FAT)
To prevent expensive site remediation, top exporters provide third-party or live video FAT covering cyclic opening tests (over 50,000 operation cycles), water ingress testing, and corner crimping torque checks prior to container loading.
Why Partner With Us: Engineering Strength & Export Advantage
Meric Window Systems Co., Ltd. is a dedicated system designer and manufacturer operating state-of-the-art aluminum extrusion and window fabrication facilities. We bridge the gap between complex architectural concepts and robust industrial production.
Tailored Architectural Engineering
Every door schedule undergoes rigorous structural wind pressure calculation and shop drawing validation by in-house facade engineers before extrusion cutting begins.
Certified Quality Assurance
Fully compliant with AS2047 (Australia), ASTM/AAMA (USA), and CE EN14351-1 standards. Systems undergo 100% pre-assembly inspection before export packing.
Heavy-Duty Export Crating
Units are wrapped in anti-scratch protective film, fitted with corner edge guards, and secured in fully enclosed plywood crates or steel A-frame racks for sea freight handling.
Frequently Asked Questions for Global Procurement Officers
Comprehensive engineering and logistics answers designed to resolve technical inquiries during project specification and vendor evaluation.
What parameters define an "Ultra-Narrow" sightline double door system?
An ultra-narrow system minimizes the visible face width of the frame profile—typically reducing vertical interlocks or mullions down to 20mm–30mm. Despite the reduced aluminum visual profile, structural stability is maintained by using thick-walled 6063-T5 alloy profiles and utilizing structural silicone sealant to bond glass units directly to frame rebates, transferring wind load to the glass.
How do Chinese thermal break profiles compare with European standards?
Top-tier Chinese manufacturers utilize polyamide (PA66-GF25) thermal break strips identical to European profiles (such as Technoform or CWD). Combined with double or triple Low-E insulated glass units (argon-filled), system overall U-values achieve 1.1 to 1.6 W/m²K, easily passing energy efficiency codes across North America, Australia, and Northern Europe.
What documentation is required to initiate a project custom quote?
To provide an accurate structural quotation and CAD shop drawings, our engineering team requires: (1) Architectural window & door elevation drawings/schedules, (2) Target performance standards (e.g., AS2047, NFRC, EN standards), (3) Preferred glass specification (tint, reflective, Low-E, laminated), and (4) Project location wind load design requirements (Pa or MPH).
What hardware brand options are integrated into your double doors?
We offer complete customization regarding door hardware integration. Buyers can select high-end European brand hardware (Siegenia, Hoppe, GU, Sobinco) or premium certified domestic brand systems (Kessen, Kinlong) equipped with stainless steel 304 multi-point locks, concealed friction hinges, and heavy-duty adjustable rollers rated up to 400kg per panel.
Ready to Engineering Your Project's Custom Aluminium Double Doors?
Send us your architectural door schedule or project floor plans today. Receive a comprehensive engineering proposal, structural glass calculation, and competitive direct factory quote within 24 hours.
