Customized 6000 Series Aluminum Extrusion Profiles for Doors with Precision Cutting
Alloy: 6063-T5 / T6 Architectural
Finish: PVDF / Anodized / Powder
Product Catalog
Engineered External Aluminium Glass Doors & Window Systems
Precision-manufactured utilizing premium 6063-T5 alloy, PA66GF25 polyamide thermal barriers, and AS2047 / ASTM certified structural glazing assemblies.
Aluminum Fold Up & Vertical Bifold Glass Window-Door Systems for Kitchen & Commercial Bars
Glass: Double Tempered Low-E
Operation: Gas-Strut / Motorized
High-Strength Canopy Glass Garage Doors & Modern Residential Single Panel Aluminum Gates
Structure: Reinforced Heavy Frame
Glazing: Frosted / Tinted Safety Glass
Modern Thermal Break Folding Exterior Glass Door with Integrated Mosquito Mesh
Break: Polyamide PA66 Barrier
Hardware: Heavy-Duty Stainless Steel
Architectural Exterior Entrance Security Pivot Door System with Aluminum Slab Details
Capacity: Up to 500kg Sash Weight
Locking: Multi-Point Automatic Lock
AS2047 Standard Low-E Double Glazed Aluminium Awning Windows with Hand Crank System
Standard: AS2047 / NFRC Certified
Water Rating: Up to 600Pa Ultimate

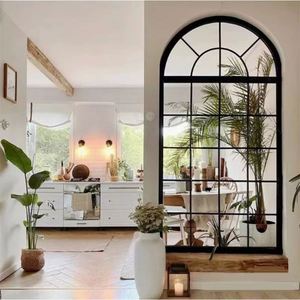

Custom Villa House Storefront French Insulating Glass Picture Windows & Fixed Facade Systems
Frame Depth: 140mm - 200mm Custom
Acoustics: Sound Insulation up to 45dB

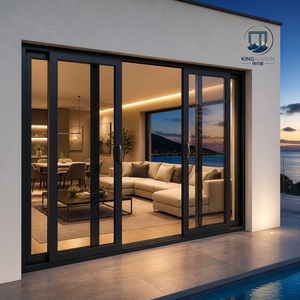

Hurricane Impact Double Tempered Glass Sliding Door for Coastal Villa & Courtyard Access
Impact Rating: Florida HVHZ / AS2047
Interlock: Ultra-Narrow 22mm Sightline
6063-T5
Prime Billet Alloy
0.8-1.2
U-Factor Range (W/m²K)
100%
Pre-Shipment Inspection
AS2047
Global Standard Tested
Executive Procurement Guide: Sourcing Premium Exterior Aluminium Glass Doors from China
The global demand for high-performance architectural fenestration has elevated China into the premier manufacturing center for engineered exterior aluminium glass doors, minimalist sliding systems, and ultra-thermal curtain wall assemblies. For commercial developers, facade consultants, project architects, and volume importers, navigating China’s factory landscape requires an analytical understanding of metallurgy, structural glass engineering, structural silicone application, and thermal barrier technologies.
This technical whitepaper breaks down the essential criteria for specifying, evaluating, and procuring exterior aluminium glass door systems directly from leading Chinese manufacturers, providing actionable insights that drive project value, compliance, and long-term durability.
Metallurgical Superiority
Leading Chinese suppliers exclusively extrude architectural profiles from virgin 6063-T5 or T6 aluminium billets. High-precision extrusion dies ensure wall thickness tolerances comply with EN 755-9 and GB/T 5237 standards, preventing structural deflection under high wind pressure.
Thermal Barrier Engineering
By incorporating imported PA66GF25 (25% glass fiber reinforced polyamide) thermal break strips, Chinese factories disconnect outer and inner aluminium profiles. This reduces thermal conductivity, eliminating condensation and yielding system U-values down to 0.8 W/m²K.
Severe Weather & Impact Compliance
Modern coastal architecture demands compliance with Florida HVHZ (High-Velocity Hurricane Zone) and Australian AS2047 standard tests. Chinese manufacturers integrate laminated SGP interlayer glass, multi-point lock hardware, and triple EPDM perimeter gaskets.
Performance Benchmarks for Modern Aluminium Door Systems
When selecting a supplier, technical submittals must be validated against recognized laboratory test reports. Below is a standard performance comparison matrix for high-tier Chinese external glass door typologies:
| System Typology | Interlock Sightline | Thermal U-Factor (W/m²K) | Water Tightness (Pa) | Acoustic Rating (Rw) | Target Architectural Application |
|---|---|---|---|---|---|
| JW157 Minimalist Panoramic Slider | 20mm – 25mm | 1.1 – 1.4 | 600 Pa | 38 – 42 dB | Luxury Residential Villas, Penthouse Balconies |
| Heavy-Duty Lift & Slide Door | 35mm – 50mm | 0.9 – 1.2 | 750 Pa (Extreme weather) | 40 – 45 dB | High-Exposure Coastal Structures & Resorts |
| Exterior Thermal Break Bifold Door | 55mm – 68mm | 1.3 – 1.6 | 450 Pa | 36 – 40 dB | Indoor-Outdoor Transition Spaces, Patios |
| Architectural Slab Security Pivot Door | Concealed Frame | 1.2 – 1.5 | 500 Pa | 35 – 38 dB | Main Luxury Entrance Gates & Storefronts |
| FW142 Ultra-Narrow Curtain Wall Door | 30mm Structural Mullion | 0.8 – 1.1 | 1000 Pa (Facade Tier) | 42 – 48 dB | Commercial Facades, Villa Double-Height Atriums |
Product Development Trends Shaping the Aluminium Door Industry (2025–2030)
As architectural trends favor biophilic design, carbon neutral building envelopes, and seamless visual transitions, Chinese door factories are pioneering key technological advancements:
1. Ultra-Narrow Sightlines & Structural Glass Bonding
Conventional frame-supported doors are rapidly giving way to structural glazing systems. In minimalist sliding series like the JW157, structural silicone adhesives bond double or triple insulated glass units (IGUs) directly into hidden aluminium sashes. This transfers wind load directly to the glass pane, enabling ultra-slim interlocks as narrow as 20mm while supporting panel heights exceeding 4.5 meters.
2. Advanced Surface Finishes & Corrosion Resistance
External doors installed in harsh marine environments require superior surface treatment. Top China factories utilize automated horizontal and vertical anodizing lines alongside PVDF (Fluorocarbon) spray coating systems. PVDF coatings containing 70% Kynar 500 resin provide exceptional resistance against UV radiation, salt spray corrosion, chalking, and color fading, achieving AAMA 2605 compliance.
3. Smart Motorization & Building Automation (BMS) Integration
Modern luxury estates and commercial facilities increasingly specify motorized heavy-duty sliders and vertical lift systems. Premium Chinese suppliers incorporate concealed brushless DC motors, magnetic drive levitation operators, and smart sensor arrays compatible with KNX, Crestron, and Control4 systems, delivering ultra-quiet motorized operation for sliding sashes weighing up to 800kg.
Future Procurement Trends for Global B2B Buyers
The international supply chain for building materials is evolving toward direct factory collaboration, verified environmental compliance, and complete digital integration.
BIM & 3D Shop Drawing Integration
Importers and general contractors now require factories to provide Revit BIM models and detailed CAD shop drawings prior to production. Leading Chinese engineering teams conduct structural calculations (wind load, deflection) to verify frame inertia before extrusion cutting.
Environmental Product Declarations (EPD)
Global green building standards (LEED, BREEAM) require verified low carbon footprints. Top Chinese aluminium suppliers are adopting recycled aluminium billets processed via clean hydro-electric power, providing certified EPD documentation for international projects.
Factory Acceptance Testing (FAT) via Live-Video
To streamline international procurement, leading factories utilize standardized pre-shipment FAT procedures. Air leakage, water penetration, and hardware cycle testing are conducted under third-party supervision and streamed live to project specifiers.
Why Partner with China's Premier Aluminium Door Manufacturers?
Sourcing directly from established Chinese factories provides significant strategic advantages over regional distributors. The integration of raw material extrusion, CNC precision fabrication, surface finishing, and assembly under a single quality management system (ISO 9001) guarantees technical consistency across large project orders.
- In-House Custom Extrusion Dies: Ability to engineer customized profile molds tailored to unique architectural structural loads, thermal break depths, and glass pocket thicknesses.
- Automated 4-Axis CNC Machining: Precision milling of lock slots, corner key slots, hinge recesses, and drainage ports ensures sub-millimeter tolerances and smooth hardware installation.
- Corner Crimping & Dual-Component Gluing: Mechanical corner crimping combined with injected dual-component corner adhesives creates structural joints with high torsional rigidity and watertight integrity.
- Comprehensive Export Crating: Finished glass units are protected with peelable protective film, corner rubber guards, moisture-resistant wrap, and packed inside steel-reinforced fumigated plywood crates designed for sea container loading.
Frequently Asked Questions
Procurement & Engineering FAQ
Clear answers to crucial technical, quality, and shipping questions asked by global specifiers and project buyers.
Q: What alloy grade and temper are recommended for structural external aluminium doors?
We strongly recommend specifying 6063-T5 or 6063-T6 architectural aluminium alloy. T5 temper offers excellent surface finish quality and structural strength suitable for residential and commercial sliding/hinged doors, while T6 provides elevated tensile strength for tall structural curtain wall mullions.
Q: How do thermal break profiles prevent condensation and reduce energy costs?
A thermal break profile inserts a low-conductive polyamide strip (PA66GF25) between the interior and exterior aluminium extrusions. Because polyamide has a thermal conductivity thousands of times lower than aluminium, it stops heat transfer, keeps inner frame temperatures warm in winter, and prevents moisture condensation on internal metal surfaces.
Q: Can Chinese manufacturers produce doors compliant with local standards like AS2047, NFRC, or CE?
Yes. Leading export-oriented factories design and test their systems specifically to meet Australian (AS2047/AS1288), North American (NFRC/AAMA/ASTM), and European (CE EN14351-1) standards. Project-specific certified laboratory test reports for wind pressure, water tightness, air infiltration, and U-values are provided upon technical submittal.
Q: What technical drawings and details are needed to receive an accurate factory quotation?
To provide an accurate technical quote, factories require: (1) Window/Door schedule indicating overall wall opening dimensions, (2) Desired opening typology (sliding, bifold, pivot, fixed), (3) Glass specifications (e.g., 6mm Low-E + 12Ar + 6mm Clear Tempered), (4) Profile color/surface finish requirement (PVDF or Powder Coat), and (5) Project location for wind load calculation.
Q: How are fragile glass panels and heavy door assemblies packaged for ocean transport?
Products undergo a multi-layer protective packaging process: surface protective film, EPDM foam corner guards, shock-absorbing bubble wrap, and full encapsulation within customized, steel-banded fumigated plywood crates or A-frame steel racks tailored for safe forklift handling and container transport.
Request Technical Drawings & System Specifications
Partner with China's leading engineering factory for your next architectural project. Get complete product catalogs, test reports, and direct factory pricing within 24 hours.
