What is an ultra-narrow sightline aluminium system?

It is a window or sliding door system where the visible aluminium frame at the interlock or mullion is reduced to a minimum, typically around 20–30 mm, maximising glass area and daylight while the structural load is carried by reinforced profiles and the glass unit.

Can Meric Window systems be tested to local standards?

Yes. Project-specific performance testing for air tightness, water tightness and wind load resistance can be arranged to the relevant EN, ASTM/AAMA or AS standards required by the destination market. Test documentation is shared during the technical review stage.

Which aluminium alloy and thermal break are used?

Profiles are extruded from 6063-T5 aluminium alloy with polyamide thermal break strips, combined with double or triple insulated glazing to meet energy performance requirements for cold, temperate and tropical climates.

What information is needed for a project quotation?

Please send architectural drawings or a window schedule with opening sizes, opening types, glass specification, finish colour, project location and the target performance standard. This allows engineers to verify profile selection and wind load before pricing.

How are windows and doors packed for international shipping?

Finished units are protected with surface film, corner guards and foam, then fixed in reinforced wooden crates or steel racks designed for container shipping, with each unit labelled to match the project window schedule.

China Best Aluminium Openable Door Manufacturer & Supplier

Engineered Architectural Swing, Casement & Thermal Break Openable Systems | High-Performance OEM/ODM Solutions for Global Commercial & Residential Megaprojects

Architectural Aluminium Openable & Sliding Systems

Precision-engineered with 6063-T5/T6 structural aluminum alloy, multi-chamber thermal barriers, and heavy-duty concealed hardware. Directly sourced from China’s leading certified fabrication facility.

Slim Black Frame Aluminum Wood Interior Door Aluminum Honeycomb Core Soundproof Pure Aluminum Bedroom Door Customized

Inquire Now

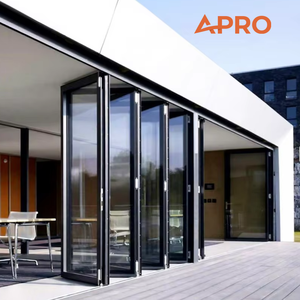

APRO Aluminium Folding Door Price Thermal Break Glass Bifold Door Exterior Patio Bifold Door

Inquire Now

Strong Hardware Aluminum Ceiling Trapdoor Access Panel / Secret Access Door with Gypsum Board and Snap Lock for Drywall and Ceil

Inquire Now

Custom Design Anti-corrosion Waterproof Thermal Insulated Aluminium Sliding Glass Door for Kitchen

Inquire Now

Window Aluminum windows and Doors Big Sliding Skylight with Armored Glass Awning

Window Aluminum windows and Doors for Houses Big Sliding Skylight with Armored Glass Aluminium Awning Double Glazed Fenetre

Inquire Now

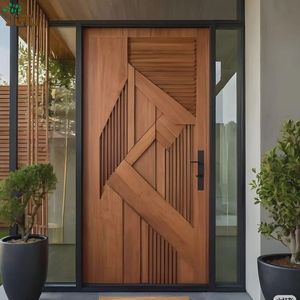

3D Wood Grain Aluminum Security Door, Dutch Style Exterior Entry Door for Apartment and Residential Projects

Inquire Now

California Title 24 Thermal Break Aluminum Lift Slide Door Double Glazed Anti-UV Waterproof Patio Balcony Entry Door

Inquire Now

Rogenilan Custom Size Soundproof Aluminum Shutters Windows Exterior Manual Adjustable Louver Window for Houses

Inquire Now

6063-T5

Primary Alloy Standard

U < 1.2

Thermal Value (W/m²K)

48 dB

Acoustic Reduction

100%

QC Factory Pre-Assembly

Manufacturing Rigor & Authority

Why Global Developers Source Aluminium Openable Doors From Us

As China's premier specialized manufacturer of high-end aluminium window and door systems, we bridge modern architectural vision with stringent metallurgical and mechanical precision.

Aerospace-Grade Alloy Extrusions

We utilize non-recycled virgin 6063-T5 and T6 structural aluminum profiles with wall thicknesses exceeding national standards (up to 3.0mm for heavy-duty swing entry sashes), providing maximum wind load resistance and zero frame deflection under extreme environmental stresses.

PA66GF25 Thermal Barrier Engineering

Incorporating 25% glass fiber reinforced Polyamide 66 (PA66GF25) thermal break strips, our openable doors minimize thermal conductivity, eliminate interior condensation, and satisfy strict European Passive House energy standards and North American NFRC/California Title 24 efficiency criteria.

Precision CNC & Corner Jointing

Every openable sash frame is cut using 5-axis German CNC machining centers, followed by high-pressure hydraulic corner crimping with dual-component structural glue injection, establishing dynamic shear strength and lifelong seal integrity.

Acoustic Honeycomb & Multi-Gasket Sealing

Interior openable bedroom doors incorporate high-density aluminum honeycomb cores alongside continuous automotive-grade EPDM triple-sealing gaskets. This architectural matrix reduces noise transmission by up to 48 dB, creating serene acoustic environments.

Advanced Surface Treatments

From AkzoNobel Qualicoat Class 2 powder coating and PVDF fluorocarbon spraying for harsh coastal saline environments to authentic 3D wood grain thermal transfer printing, our finishes carry up to 25-year anti-fading, anti-corrosion warranties.

Global System Hardware Compatibility

Fully integrated with tier-1 European hardware brands including Siegenia, Hoppe, Sobinco, GU, and Giesse, offering heavy-duty 3D adjustable concealed hinges, multi-point anti-burglary gearboxes, and motorized biometric keyless locks.

Technical Engineering Matrix

System Performance Specifications Overview

Comparative analysis of our key aluminium openable, swing, and architectural door profile configurations verified through ISO 9001 and certified laboratory testing.

System Category	Alloy & Temper	Frame Depth	Thermal Transmittance (U-Value)	Acoustic Rating (Rw)	Wind Pressure Standard	Target Architectural Application
Thermal Break Casement Openable Door	6063-T6 Aluminum	70mm - 90mm	1.1 - 1.5 W/m²K	42 - 46 dB	Class 9 (ASTM E330 / 5000 Pa)	Exterior Villa Entry, Balcony, Luxury Residential
Slim Frame Honeycomb Interior Swing Door	6063-T5 Aluminum	40mm - 50mm	N/A (Interior Use)	38 - 45 dB	N/A (Interior Wall Partition)	Bedroom, VIP Suite, Hotel Guestroom, Office Executive Door
Heavy-Duty Folding Patio Openable Door	6063-T6 Structural	75mm - 80mm	1.3 - 1.8 W/m²K	35 - 40 dB	Class 7 (EN 12207 Air / EN 12208 Water)	Resort Patio, Restaurant Veranda, Full Open Elevation
Dutch-Style Security Openable Door	Reinforced 6063-T6	85mm - 100mm	1.2 - 1.6 W/m²K	40 - 48 dB	PAS 24 Anti-Burglary / High Wind Load	Residential Main Front Door, Courtyard Security Access
Curtain Wall Integrated Openable Sash	6063-T6 Architectural	140mm - 160mm System	0.9 - 1.2 W/m²K	44 - 48 dB	Hurricane-Resistant (Miami-Dade Approved)	High-Rise Facades, Double-Height Villa Atriums

Industry Insight & Market Vision

Future Procurement & Product Development Trends

As global building standards evolve toward net-zero carbon footprints and intelligent automated building envelopes, purchasing criteria for aluminium openable doors are shifting rapidly.

1. Ultra-Low U-Values & Vacuum Insulated Glazing (VIG)

Future-ready procurement mandates total window assembly thermal transmittance below 0.8 W/m²K. Manufacturers in China are actively pairing thermal break profiles with Vacuum Insulated Glass (VIG) and aerogel-filled polyamide chambers, reducing profile depth while doubling insulation efficacy.

2. Minimalist Sightlines with Maximum Structural Rigidity

Architectural demand leans heavily toward ultra-narrow visible stiles (less than 20mm-30mm) without compromising structural integrity. Advanced bonding techniques—where insulated glass units act as structural load-bearing components glued directly to aluminum frames—are replacing heavy traditional profile profiles.

3. Smart Access Automation & Invisible Electromechanical Hardware

B2B buyers are requiring seamless integration of smart home IoT protocols (KNX, Zigbee, Matter). Modern openable doors are designed with fully concealed electromagnetic multi-point latches, motorized soft-close operators, facial recognition sensors, and automated micro-ventilation settings.

4. Low-Carbon Recycled Aluminum & EPD Transparency

International green building schemes (LEED, BREEAM, DGNB) require suppliers to provide Environmental Product Declarations (EPD). Purchasing trends show a preference for manufacturers utilizing low-carbon hydroelectric aluminum smelting and post-consumer recycled billets to satisfy corporate ESG benchmarks.

Sourcing Guidance & FAQ

Frequently Asked Questions for Global Procurement

Addressing key technical, financial, and operational concerns raised by international architects, facade engineers, and general contractors during the sourcing process.

What makes 6063-T5/T6 aluminum alloy superior for openable door systems compared to standard aluminum?

Aluminum alloy 6063 with a T5 or T6 artificial aging temper offers the ideal balance of tensile strength (yield strength ≥ 170 MPa), corrosion resistance, and exceptional surface finish quality. T6 temper provides enhanced hardness for oversized structural openable doors exposed to high wind zones, while T5 offers excellent dimensional stability for complex extruded multi-chamber profiles with tight manufacturing tolerances.

How do you guarantee air tightness, water tightness, and acoustic isolation in heavy rain and wind zones?

Our openable doors employ a triple-seal system utilizing continuous EPDM (Ethylene Propylene Diene Monomer) synthetic rubber gaskets. Combined with pressure-equalized rain screen drainage channels, multi-point lock driving rods that compress the sash uniformly against the frame, and insulated double/triple glass units, our door systems reliably achieve Class 4 Air Permeability (EN 12207) and E1050 Water Tightness (EN 12208).

Can custom sizes, colors, and opening configurations be executed for specific architectural drawings?

Yes. We operate a complete OEM/ODM engineering workflow. We accept CAD, BIM (Revit), and PDF architectural window/door schedules. Opening styles include inward turn, outward swing, tilt-and-turn, French double open, Dutch doors, and secret access panels. Finishes can be customized to any RAL color, metallic anodized shade, or realistic 3D timber grain pattern.

What is the standard production lead time and international export packing protocol?

Standard fabrication lead time is 25 to 35 calendar days following shop drawing approval and deposit receipt. For ocean shipping, each finished unit is wrapped in protective scratch-resistant film, padded with corner guards, sealed in moisture-proof vacuum bags, and mounted inside custom fumigated wooden crates or heavy-duty steel A-frames to guarantee damage-free arrival.

Are your door systems compliant with local building codes such as AS2047, CE, ASTM, or Title 24?

Yes. Our product lines are certified under relevant international performance benchmarks. We provide factory test reports and third-party certifications for ASTM E330 (wind load), ASTM E283 (air leakage), ASTM E331 (water penetration), AS2047 (Australian window standard), CE marking for the European Union, and NFRC/California Title 24 energy performance documentation.

Ready to Spec High-Performance Aluminium Openable Doors?

Send us your architectural drawings, window schedules, or project specifications today. Our senior facade engineering team will return custom shop drawings and a detailed factory-direct quotation within 24 hours.
