Engineered Aluminum Overhead & Architectural Door Systems
Direct export configurations compliant with international building codes (AS2047, NFRC, CE, ASTM). Double-glazed, thermal-break, and precision-extruded aluminum solutions.

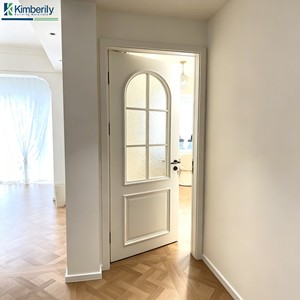

Simple Modern Aluminum Casement Door Smooth Surface Color Custom Sound Insulated Door
Send an Inquiry

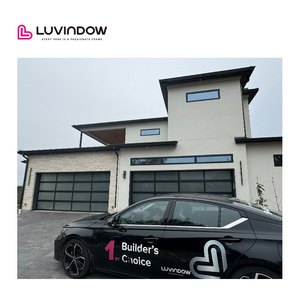

Insulated Security Easy Operate Aluminum Sliding Garage Doors for Residential Modern Homes
Send an Inquiry

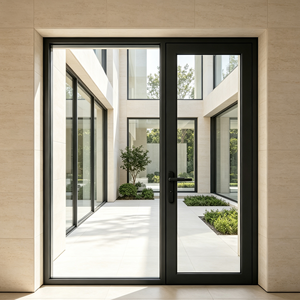

Custom Australian Standard Casement Door Stable Aluminum Alloy Double Glazed Modern Interior Doors
Send an Inquiry

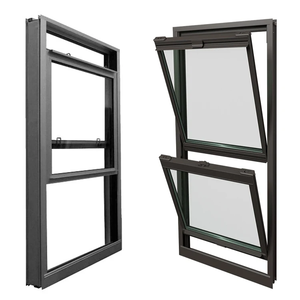

Customized Double Glazed Simple Design Aluminum Narrow Frame Balcony Window & Door Systems
Send an Inquiry

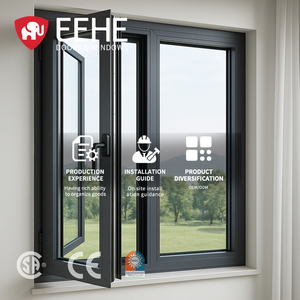

EEHE Modern Arched Thermal Insulation Casement Windows NFRC Certified Double Glazed Soundproof Door
Send an Inquiry

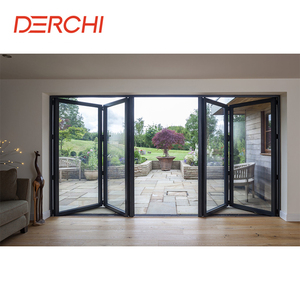

Latest Design Balcony Patio Hurricane Proof Aluminum Double Tempered Glass Folding Door System
Send an Inquiry
Electric Aluminium Roller Shutter Rolling Up Overhead Shutter Door with Smart Motorization
Send an Inquiry

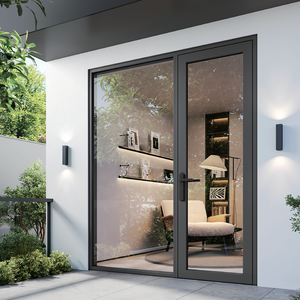

Australian Standard AS2047 Certificated Luxury Swing Door Thermal Break Double Glazed Glass
Send an InquiryExecutive Overview: The Evolution of China’s Aluminum Overhead Door Industry
The global market for industrial, commercial, and high-end residential overhead door systems has undergone a structural shift toward high-strength aluminum alloys, thermal separation engineering, and panoramic full-view architectural aesthetics. As international building codes mandate stricter envelope energy compliance (such as ASHRAE 90.1, Title 24, and EN ISO 10077), procurement directors, real estate developers, and commercial contractors are increasingly turning to top-tier Chinese manufacturers for custom OEM/ODM solutions.
China's leading aluminum overhead door factories have evolved from low-cost fabricators into highly automated engineering centers utilizing 5-axis CNC machining, robotics-assisted glass insertion, and automated powder coating certified under AAMA 2605. By leveraging localized extrusion clusters (e.g., Foshan, Shandong, and Yangtze River Delta industrial zones), top Chinese manufacturers offer unmatched lead times, structural precision, and cost efficiencies compared to traditional European or North American suppliers.
Information Gain Insight: Structural integrity in overhead doors is not merely determined by panel thickness. Premium Chinese manufacturers incorporate internal structural ribs made from extruded 6063-T5 or 6060-T66 aluminum alloys combined with Polyamide PA66GF25 thermal break strips. This construction mitigates profile thermal bridging while supporting large-span glass panels exceeding 8 meters in width.
Material Metallurgy: Why 6063-T5 Extruded Aluminum Dominates
In overhead door manufacturing, material fatigue and structural deformation under wind loading represent critical engineering risks. Primary virgin billet 6063-T5 extruded aluminum provides an optimal tensile strength-to-weight ratio:
- Tensile Strength: Yield strength exceeding 170 MPa, preventing panel sagging across spans up to 10,000 mm.
- Corrosion Resistance: High resistance to atmospheric oxidation, further enhanced by anodizing (minimum 15μm) or PVDF fluorocarbon coatings (minimum 30μm) for coastal environments.
- Dimensional Precision: Precision tolerances under EN 12020-2, ensuring air-tight interlocking between door panels during vertical articulation.
Aluminum Overhead Door Selection & Specification Matrix
Compare structural performance, thermal capabilities, and application suitability across primary overhead door configurations.
| Door System Type | Primary Alloy / Core | Thermal Rating (U-Value) | Wind Resistance Class | Max Span / Width | Optimal Application |
|---|---|---|---|---|---|
| Full-View Glass Sectional Overhead | Extruded 6063-T5 + Double Tempered Glass | 1.6 – 2.0 W/(m²·K) | Class 4 (120 km/h) | 8,000 mm | Commercial Showrooms & Fire Stations |
| Thermal Break Insulated Sectional | PA66GF25 Strip + PU Foam Core (42kg/m³) | 0.9 – 1.3 W/(m²·K) | Class 5 (140+ km/h) | 10,000 mm | Cold-Chain Logistics & Luxury Villas |
| Insulated Aluminum Roller Shutter | Double-Walled Aluminum Slats + Polyurethane | 2.2 – 2.6 W/(m²·K) | Class 3 (90 km/h) | 6,500 mm | High-Security Storage & Retail Garages |
| Hurricane-Proof Overhead Folding System | Reinforced Steel Core + Heavy Aluminum Frame | 1.4 – 1.8 W/(m²·K) | ASTM E330 (3500 Pa) | 12,000 mm | Coastal Resorts & Aviation Hangars |
Smart Automation & Servo Motors
Integration of variable-frequency direct-drive DC brushless motors with battery backup and IoT remote telematics, enabling soft-start/soft-stop motion profile customization and operational telemetry.
Ultra-Low Energy Envelopes
Transition toward passive house certified sectional doors featuring aerogel-infused panel cavities, quadruple EPDM weather-stripping seals, and Low-E argon-filled triple-glazed panels.
Direct Factory Transparency
B2B procurement is shifting from trading intermediaries to direct factory integration, backed by BIM/CAD modeling, automated shop drawings, and real-time production tracking systems.
Factory Auditing: Evaluating China's Leading Overhead Door Manufacturers
When selecting a manufacturing partner in China for large-scale commercial or residential projects, procurement teams must evaluate beyond FOB pricing. Verifying technical infrastructure, quality assurance protocols, and structural engineering guarantees safe and long-lasting field performance.
1. Automated Extrusion & CNC Machining Capabilities
Tier-1 factories operate automated extrusion lines capable of producing 6063-T5 aluminum profiles with uniform wall thicknesses (minimum 2.0 mm to 3.0 mm for structural overhead tracks). CNC processing centers handle mortising, track slotting, and hinge placement with zero manual error tolerances, ensuring smooth, low-friction roller track travel.
2. Advanced Thermal Isolation & Sealing Architecture
Cold-bridge prevention relies on high-grade Polyamide PA66GF25 (25% fiberglass-reinforced) strips crimped tightly into twin extrusion chambers. Combined with UV-stabilized EPDM top, bottom, and side perimeter seals, high-performance systems prevent water infiltration under driving wind pressure (up to 700 Pa / EN 12425 Class 3).
3. Counterbalance & Safety Brake Mechanisms
Standard safety protocols must include spring-break protection devices and cable-break safety brakes. High-cycle torsion springs rated for 25,000 to 100,000 duty cycles ensure operational reliability in industrial and commercial high-traffic installations.
Export Protective Packaging
Overhead door sections and tracks require protective film wrap, thick polyethylene corner shields, and heavy-duty steel-framed wooden crates to prevent flexing or finish scratching during ocean freight transit.
Standardized Testing Reports
Ensure your factory supplier provides certified laboratory test reports covering wind load (ASTM E330 / EN 12424), thermal transmittance (ISO 10077-2), and sound reduction index (STC ratings up to 38 dB).
Frequently Asked Questions for B2B Sourcing
Technical clarity on engineering specifications, structural compliance, custom fabrication, and international logistics.
Q: How do Chinese aluminum overhead door manufacturers compare in structural integrity and pricing against European suppliers?
Leading Chinese manufacturers utilize identical high-grade primary aluminum alloys (6063-T5 / 6060-T66) and hardware systems as top European brands, often sourcing thermal breaks from world-class suppliers like Technoform. Due to integrated supply chain ecosystems and scaled production, Chinese factories deliver equivalent structural and thermal performance (U-values ≤ 1.4 W/m²K) at a 30% to 50% cost advantage, supported by custom CAD shop drawings for global project compliance.
Q: What wind-load engineering parameters are critical for coastal or typhoon-prone building projects?
For high-wind regions, aluminum overhead doors must be calculated according to ASTM E330 or EN 12424 standards (Class 4 or Class 5). Key engineering modifications include heavy-duty internal steel or aluminum wind-load stiffeners (struts), reinforced double-end hinges, heavy-duty 3-inch steel roller tracks, and impact-resistant laminated glass units capable of withstanding cyclic pressure up to 4500 Pa.
Q: What are the main differences between full-view aluminum glass doors and polyurethane-filled sectional panels?
Full-view aluminum overhead doors utilize extruded hollow frame sections filled with double or triple insulated tempered glass, prioritizing architectural visibility, natural light transmission, and modern aesthetics (ideal for auto dealerships, fire houses, and luxury residential garages). Polyurethane (PU) foamed aluminum sandwich panels feature solid metal skins with a high-density (42 kg/m³) insulating core, offering higher R-values and thermal retention for climate-controlled warehouses or cold storage facilities.
Q: How can international buyers verify powder coating durability and surface finish quality before placing bulk orders?
Specify standard compliance such as AAMA 2604 or AAMA 2605 (for fluorocarbon PVDF finishes). Request factory quality control documentation detailing salt spray testing (ASTM B117 exceeding 2,000 to 3,000 hours without blistering), coating thickness verification (minimum 60-80 microns for powder coating; 30+ microns for PVDF), cross-hatch adhesion testing (ISO 2409), and gloss level certification.
Q: What is the typical lead time, and how are shipping logistics handled for custom overhead doors?
Standard production lead times range from 20 to 30 business days following shop drawing approval. For container shipping, units are wrapped in protective surface film, edged with foam protectors, and fixed in reinforced wooden crates or customized steel pallets. Each panel and component crate is individually labeled according to your architectural window and door schedule to facilitate quick site sorting and installation.
Request an Architectural Engineering & Price Quote
Submit your project CAD drawings, window/door schedules, or technical performance specifications. Our senior engineering team will provide detailed thermal evaluations, structural calculations, and factory-direct pricing within 24 hours.
