Engineered Architectural Window & Door Solutions
Explore our high-performance product lineup certified to international standards. Built with precision 6063-T5 aluminium alloy profiles, advanced thermal breaks, and structural glass integration.
Aluminium Tilt And Turn Casement Windows With Insect Screen For European Residential Projects Custom Size OEM ODM CE Certified

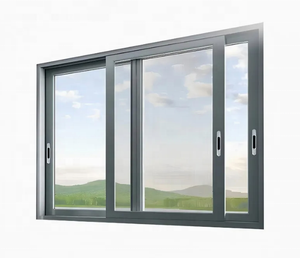

Custom Aluminum Sliding Windows Double Glazed Thermal Break Low-E Glass Durable Corrosion Resistant Horizontal Slider Window
Modern Simple Design 45mm Insert Plate Durable Waterproof Aluminum Wooden Door with Windproof Feature for Interior House Bedroom

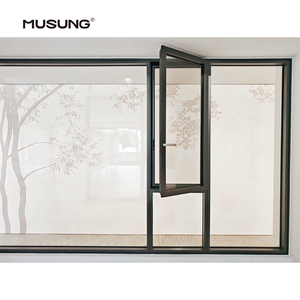

New Arrival Casement Windows House Casement Windows HurricaneImpact Casement Windows Aluminum Casement Windows

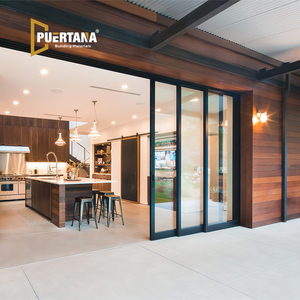

Exterior Conceal Stacking Door Sliding Patio Door Aluminium Hidden Glass Pocket Slide Doors Inside the Wall

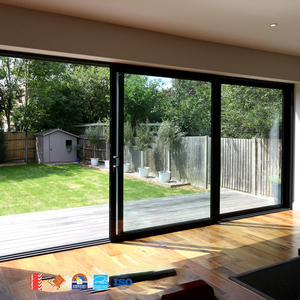

AMJ As2047 Australian Windows and Doors Panoramic Double Glazed Stacker Doors Commercial Exterior Patio Aluminum Sliding Doors
Electric Aluminium Roller Shutter Rolling up Shutter Door
Aluminium Scaffold Trap Door Deck With Ladder for Construction Use
Engineering Principles of High-Performance Double Sliding Systems
Understanding profile metallurgy, thermal barrier mechanics, structural dynamics, and optical clarity parameters for wholesale B2B procurement.
6063-T5 Structural Alloy
Extruded strictly using virgin primary aluminium ingots. Tensile strength $\ge 160 \text{ MPa}$ and yield strength $\ge 110 \text{ MPa}$ guarantee high structural integrity under extreme wind loads, preventing deflection on oversized glass panels.
PA66-GF25 Thermal Barriers
Polyamide 66 reinforced with 25% glass fiber matches the thermal expansion coefficient of aluminium alloys. Achieves profile U-values ($U_f$) down to $1.3 \text{ W/m}^2\text{K}$, eliminating thermal bridging and condensation risks.
Heavy-Duty Carriage Rollers
Precision-engineered dual stainless steel roller assemblies supporting leaf weights up to $400 \text{ kg}$. Tested for over $100,000$ continuous operational cycles under full design weight without acoustic degradation.
Structural Wind Load & Air-Tightness Performance Standard
When specifying China top aluminium double sliding doors for high-rise residential or exposed coastal resorts, structural calculation is paramount. System designs utilize reinforced vertical interlocks with moments of inertia ($I_x$) up to $120 \text{ cm}^4$. This engineering architecture guarantees deflection limits of $\le L/300$ under severe wind pressures up to $5000 \text{ Pa}$ (ASTM E330 / EN 12210 Class C5 compliance).
| Performance Indicator | Standard Double Sliding System | Meric Thermally Broken Double Slider | Testing & Compliance Standard |
|---|---|---|---|
| Thermal Transmittance ($U_w$) | $2.8 - 3.5 \text{ W/m}^2\text{K}$ | $1.1 - 1.6 \text{ W/m}^2\text{K}$ (Low-E IGU) | ISO 10077-2 / NFRC 100 |
| Acoustic Insulation ($R_w$) | $25 - 28 \text{ dB}$ | $38 - 45 \text{ dB}$ (Laminated Double Glazed) | EN ISO 140-3 / ASTM E90 |
| Air Infiltration Rating | Class 2 ($300 \text{ Pa}$) | Class 4 ($600 \text{ Pa}$) High Airtightness | EN 12207 / ASTM E283 |
| Water Penetration Resistance | $150 - 250 \text{ Pa}$ | $\ge 750 \text{ Pa}$ (Concealed Sub-Sill Drainage) | EN 12208 / ASTM E331 |
| Visible Interlock Profile Width | $50\text{mm} - 80\text{mm}$ | $20\text{mm} - 32\text{mm}$ (Ultra-Slim Sightline) | Architectural Design Standard |
Future Procurement Trends in Aluminium Sliding Door Systems
Key technological shifts and procurement standards shaping global supply chains, architectural specifications, and bulk sourcing strategies.
1. Ultra-Narrow Sightlines & Panoramic Glass Ratios
Modern architectural philosophy centers on seamless indoor-outdoor connectivity. Global buyers are transitioning from bulky traditional frames to ultra-narrow interlocks ($20\text{mm}$ visible profile). By shifting the structural loads onto structural silicone glazing and concealed outer frames buried within wall cavities, daylight transmission is increased by up to 18% while maintaining structural safety.
2. Carbon Neutrality & EPD Environmental Standards
With stringent decarbonization goals in Europe (EU Energy Performance of Buildings Directive) and North America (LEED v4.1 certification), aluminum extrusions must incorporate recycled content and low-carbon smelting processes. B2B procurement now demands Environmental Product Declarations (EPD), life-cycle carbon mapping, and non-toxic PVDF surface coatings free of volatile organic compounds (VOCs).
3. Smart Automation & Concealed Motorization
High-end residential and commercial projects increasingly require motorized double sliding door systems with smart home integration (KNX, Zigbee, Crestron). Electric drive systems embedded within the top frame head track offer obstacle detection, automated weather sensor closing, and ultra-quiet belt-driven movement, serving accessibility requirements (ADA compliance) without compromising aesthetics.
4. Severe Weather Resilience & Multi-Cavity Sub-Sills
Global climate volatility has heightened demand for hurricane-impact rated sliding systems and advanced water management solutions. Multi-cavity stepped drainage tracks, concealed non-return check valves, and high-performance EPDM triple gasket seals prevent water ingress under wind-driven rainfall exceeding $750 \text{ Pa}$, safeguarding luxury interior finishes.
Why Source From Meric Window Systems Co., Ltd.?
Extensive manufacturing capacity, fully integrated production cycles, and rigorous quality control for international project delivery.
Custom Extrusion Die Engineering
We operate in-house CAD/CAM tooling facilities capable of developing custom extrusion profile dies tailored to unique architectural system requirements. Our engineering team calculates load dynamics to minimize metal consumption while maximizing section moduli.
Surface Finishing & Anodizing
Equipped with fully automated vertical powder coating and anodizing lines. Finishing options include Qualicoat Class 2/3 fluorocarbon (PVDF) coatings, wood grain thermal transfer, and hard-coat anodizing resistant to salt spray corrosion ($\ge 3000 \text{ hours}$ ASTM B117 testing).
Export Packing & Logistics Security
All window and door assemblies undergo protective film application, blue foam corner guards, and vacuum plastic wrapping. Units are packed into heavy-duty reinforced fumigated wooden crates or steel A-frame containers designed for safe ocean transportation and rapid site unloading.
Frequently Asked Sourcing & Technical Questions
Essential answers covering specifications, international standards compliance, OEM capabilities, and global freight handling.
Accelerate Your Project With Custom Fenestration Engineering
Partner directly with China's premier manufacturer of high-performance aluminium double sliding door systems. Request a detailed engineering review and competitive quotation for your development project.
