Next-Generation Architectural Mesh & Aluminium Door Engineering
An authoritative procurement report on high-precision thermal break profiles, high-tensile stainless steel security screen doors, and integrated insect screening technologies for international architectural projects.
Balcony Patio Aluminum Windows and Doors Energy Efficiency Hurricane Impact Sliding Door
Modern Aluminum Windows Doors Double Tempered Glass Heat Insulation Stainless Steel Screen Netting

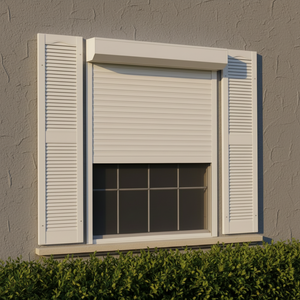

Factory Wholesale European Design Roll Down Door Exterior Metal Hidden Rolling Shutters Windows
House Main Door Aluminium Security Door with Integrated Mesh System Catalogue
Silent And Smooth Open Double Glazed Glass Load-bearing Aluminum Alloy Sliding Pocket Doors
French Exterior Entry Main Modern Glass Arch CE Certified Powder Coated Aluminium Doors
AMJ American Style NFRC Aluminum Bifold Doors with Retractable Mosquito Screen Integrated
6063-T5
Premium Alloy Grade Standard
0.8 mm
SS304/SS316 Mesh Wire Gauge
PA66-GF25
Structural Thermal Insulation Strips
AAMA 2605
Fluorocarbon Coating Specification
Technical Deep-Dive
1. Material Science and Structural Integrity of Chinese Aluminium Mesh Doors
In contemporary architectural design, the convergence of perimeter security, natural ventilation, and insect defense has driven immense innovation in specialized aluminium door systems. As leading Chinese manufacturers scale technical capabilities, modern aluminium mosquito mesh doors have evolved far beyond lightweight secondary screens. Today, they represent integrated structural building envelope solutions that combine thermal break extrusion technology, high-tensile marine-grade stainless steel wire netting, and multi-point security locking systems.
Key Engineering Metric: Tensile Strength vs. Airflow Efficiency
Modern 0.8mm wire diameter SS304/316 woven security mesh maintains an aperture size of 1.5mm x 1.5mm, delivering over 850 MPa shear strength while offering up to 68% open area visual transparency and optimal natural ventilation.
1.1 Extrusion Profile Metallurgy: The 6063-T5 Advantage
The structural backbone of high-performance mosquito mesh doors manufactured in China relies on precision-extruded 6063-T5 aluminium alloy profiles. The T5 temper treatment—achieved through artificial aging immediately following hot extrusion—provides an ideal ratio of tensile yield strength (minimum 170 MPa) to workability. Profile wall thicknesses are strictly engineered according to project wind pressure loads, ranging from 1.4mm for standard interior residential partitions to 2.0mm–3.0mm heavy-duty outer wall profiles designed for hurricane impact zones.
1.2 Polyamide Thermal Break Technology (PA66-GF25)
To prevent thermal bridging between outdoor climatic conditions and conditioned indoor environments, premier manufacturers integrate PA66-GF25 (Polyamide 66 reinforced with 25% glass fiber) insulating strips into the multi-chamber aluminium extrusions. This composite construction drastically reduces the profile's heat transfer coefficient (U-value), lowering total thermal conductivity while accommodating differential thermal expansion between indoor and outdoor structural aluminum frames.
1.3 Technical Matrix: Mosquito & Security Mesh Material Selection
Selecting the correct screen mesh material is paramount for matching regional climate demands, salt spray exposure levels, and physical security needs:
| Mesh Material Grade | Wire Diameter | Corrosion Resistance | Vandal / Shear Security | Optimal Project Application |
|---|---|---|---|---|
| SS316 Marine Grade | 0.80 mm / 0.90 mm | Extreme (1500h Salt Spray) | High-Impact / Anti-Cut | Coastal Villas & High-Humidity Resorts |
| SS304 Architectural | 0.70 mm / 0.80 mm | High (1000h Salt Spray) | Anti-Theft Security | Urban Apartments & Gated Communities |
| High-Tensile King Kong Mesh | 0.90 mm | Superior Powder Coated | Maximum Intrusion Resistance | Ground-Floor Residential Entrances |
| Polymer Plisse (Pleated) | N/A (Fiberglass/PET) | Moderate (Insect Protection) | Flexible Retractable | Ultra-Narrow Sightline Balcony Doors |
Global Market Insights
2. Future Trends in Aluminium Mosquito Mesh Door Manufacturing
As the international construction industry accelerates toward zero-energy buildings (ZEB), smart home automation, and minimalist visual sightlines, top-tier Chinese manufacturers are setting global trends through advanced engineering research and automated production processes.
Ultra-Narrow Sightlines
Concealed frame profiles with minimal interlock sightlines down to 20mm maximize clear glass viewing areas without sacrificing screen mesh tension or structural frame rigidity.
Motorized Smart Integration
Smart home integration with automated roll-up mosquito screens controlled by Tuya/Zigbee protocol, featuring automated rain sensors and obstacles detection micro-motors.
Multi-Track Monorail Systems
Seamless embedding of glass panel tracks and heavy-duty mesh tracks within a unified flush threshold, complying with barrier-free ADA architectural guidelines.
2.1 B2B Procurement Trends for International Buyers
Global architectural importers, facade contractors, and real estate developers sourcing from China have shifted focus from simple FOB unit price comparisons to whole-life value engineering. Key procurement trends include:
- Integrated System Sourcing: Procuring unified window and door packages from a single qualified manufacturer to guarantee exact anodizing color match, consistent hardware keying, and shared thermal performance warranties.
- Compliance Certification Pre-requisites: Requesting verified third-party laboratory test reports including NFRC thermal ratings, CE EN 14351-1 compliance, AS2047 structural water penetration standards, and ASTM E1300 structural glass load validations.
- DFMA (Design for Manufacture and Assembly): Customizing profile knock-down (KD) packaging solutions that drastically optimize 40ft HQ container loading space while reducing on-site fabrication labor.
Manufacturing Excellence
3. Enterprise Manufacturing Capabilities & Quality Assurance Matrix
As an industry-leading manufacturer specializing in high-performance aluminium window and door systems, Meric Window Systems Co., Ltd. combines modern metallurgic science with rigorous European production standards. We provide fully customizable solutions for residential luxury villas, commercial towers, and resort hospitality developments across the globe.
Precision CNC Automated Fabrication
State-of-the-art 5-axis CNC machining centers ensure corner miter tolerances within 0.05mm, delivering perfect gasket sealing and flawless multi-point locking pin alignment.
Strict 5-Step Quality Inspection Protocol
Every fabricated door unit undergoes raw aluminum hardness testing, anodizing film depth check, corner crimping tensile validation, air/water tightness chamber testing, and 100% pre-shipment trial assembly.
Advanced Surface Finishing Options
Qualicoat-certified fluorocarbon (PVDF) powder coating, ultra-durable wood grain heat transfer, and architectural anodizing designed to withstand 2000+ hours of continuous salt spray exposure.
Export Logistics & Heavy-Duty Crating
Products are wrapped in protective PE anti-scratch film, cushioned with corner foam, and packed inside fully enclosed fumigated plywood crates or steel shipping racks for zero-damage transit.
Procurement Guide
4. Frequently Asked Questions (FAQ) for Global Sourcing & Engineering
What is an ultra-narrow sightline aluminium mosquito mesh door system?
It is an advanced door system where the visible aluminium profile frame at the interlocks or mullions is reduced to a minimal width (typically between 20mm to 30mm). This maximizes clear glass vision and natural sunlight transmission while relying on reinforced alloy wall profiles and high-tensile stainless steel security screen netting to maintain full wind-load structural performance and pest defense.
How do stainless steel security screens compare to standard fiberglass mesh?
High-tensile SS304 or SS316 security screens (0.7mm to 0.9mm wire diameter) provide multi-functional protection: they prevent insect entry, resist knife cutting, withstand extreme blunt force impacts (anti-burglary), and offer fall-prevention safety for high-rise buildings. Standard fiberglass mesh only provides insect protection and has minimal mechanical shear resistance.
Can Meric Window systems be certified to specific overseas building codes?
Yes. Project-specific testing for air permeability, static water tightness, wind pressure resistance, and thermal insulation can be arranged according to EN (European Norms), ASTM/AAMA (North America), or AS2047 (Australia/New Zealand) standards. Fully validated test documentation is supplied during the shop-drawing review process.
What specific thermal break materials are utilized in your profile systems?
We exclusively utilize high-precision PA66-GF25 (Polyamide 66 reinforced with 25% structural glass fibers) thermal insulation strips inserted into extruded 6063-T5 aluminium profile chambers. Combined with double or triple insulated glass units (IGUs) filled with Argon gas, our door systems maintain low U-values suitable for both cold climate heating retention and tropical air-conditioning efficiency.
What architectural technical drawings are required to receive a precise quotation?
To receive an engineered project estimate, clients should provide architectural elevations, floor plans, or a detailed window and door schedule indicating structural opening rough dimensions (width x height), opening configuration types (sliding, casement, folding), glass build-up requirements, screen mesh specification, profile finish color, and destination project wind-zone loads.
How are heavy finished window and door units protected against international sea freight damage?
All finished products are wrapped in protective surface film, fitted with impact-resistant plastic corner guards, wrapped in shock-absorbing foam, and fixed inside custom reinforced fumigated plywood crates or rigid heavy-duty steel A-frames designed for direct forklift container loading and unloading.
Partner with Meric Window Systems
Request a Custom Engineering Review & Technical Quotation
Submit your architectural elevation drawings or project window schedule to consult directly with our senior facade engineering team. We provide structural wind load verification, thermal analysis, and optimized factory-direct pricing.
