6063-T5
High-Precision Extruded Alloy
U ≤ 0.8
Ultra-Low Thermal Transmittance (W/m²K)
PA66GF25
Polyamide Structural Thermal Breaks
100%
Pre-Shipment Structural QA Inspection
Architectural Aluminum Fabrication Excellence: Enterprise Whitepaper Overview
As a top-tier Chinese aluminum fabrication manufacturer and global exporter, we supply high-performance thermal break doors, custom curtain wall systems, and narrow-frame architectural glazing directly to project developers, contractors, and architectural specifiers worldwide.
In modern commercial and high-end residential architecture, building envelopes demand an optimized convergence of structural rigidity, thermal decarbonization, wind-load resistance, and refined optical sightlines. Our manufacturing engineering framework leverages advanced Finite Element Analysis (FEA) to calculate wind pressure dynamics, deflection parameters, and thermal bridging vulnerabilities across multi-story and coastal installation environments.
Utilizing primary virgin 6063-T5/T6 billet extrusions combined with high-grade PA66GF25 polyamide insulating strips, our complete door systems consistently achieve verified ratings under AS2047, NFRC, ASTM, and EN standards. By operating fully integrated CNC machining, automated corner-crimping matrix lines, and multi-stage surface treatment facilities (including 70% Kynar 500 PVDF fluorocarbon coatings and 25-micron anodic oxidation films), we guarantee decades of durability against severe weathering, air infiltration, and acoustic distortion.
Engineered Architectural Door Systems & Featured Products
Explore our factory-direct export product lines designed for luxury villas, hospitality resorts, high-rise developments, and commercial facade applications.
Custom Australian Standard Casement Door Stable Aluminum Alloy Double Glazed Tempered Glass Modern Interior Doors With AS2047

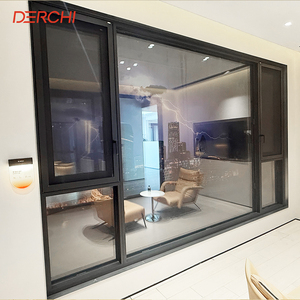

DERCHI Simple Design Customized Size Aluminium Insulated Glass Windows Casement Window Modern Aluminium windows
Modern Style Aluminum Double Entry Door Custom Design Exterior Front Door With Smart Lock Long Pull Handle for Luxury Villa
YY Facades As2047 Australian Windows and Doors Stacker Doors Australian Standard 3 Panel Glass Aluminum Sliding Doors
Modern Glass Aluminum Folding Door with Stainless Steel Mosquito Net Finished Surface Indoor/Outdoor Use
Modern Exterior 4 Panel Aluminum Sliding Glass Door Double Glazed Tempered Patio Entrance For Residential Villa Projects
Aluminum Transparents Glass Overhead Sectional Commercial Doors
Engineering Metrics & Material Performance Specifications
Information Gain Matrix: Comparing high-efficiency thermal break profiles, structural load capabilities, and acoustic mitigation values across international engineering benchmarks.
| Door System Classification | Alloy & Temper | Thermal Break Insert | U-Factor Rating (W/m²K) | Acoustic Mitigation (STC) | Max Wind Load (Pa) | Target Certifications |
|---|---|---|---|---|---|---|
| Narrow-Sightline Panoramic Sliding Doors | 6063-T6 Structural Profile | 24mm - 34mm PA66GF25 | 0.9 - 1.2 | 38 - 42 dB | ≥ 4500 Pa | AS2047, NFRC, ISO9001 |
| Heavy-Duty Heavy Lift & Slide Doors | 6063-T5 High-Precision | 30mm Polyamide Strip | 0.8 - 1.1 | 40 - 45 dB | ≥ 5000 Pa | CE, ASTM/AAMA 101 |
| Thermal Break Bi-Fold / Folding Doors | 6063-T5 Commercial Grade | 20mm - 28mm Technoform | 1.2 - 1.5 | 36 - 40 dB | ≥ 3800 Pa | AS2047, EN 14351-1 |
| Architectural Entrance & French Doors | 6063-T6 Heavy Wall Profile | Integrated Multi-Cavity | 1.0 - 1.4 | 38 - 44 dB | ≥ 4200 Pa | NFRC, Florida Product Approval |
| Commercial Glass Sectional Overhead | 6060-T6 Anodized Frame | Optional Thermal Barrier | 1.8 - 2.2 | 30 - 35 dB | ≥ 3200 Pa | ISO14001, CE Certified |
Aluminum Alloy Billet Quality
We strictly utilize 100% primary aluminum ingot extrusions meeting ASTM B221 standards. 6063-T5 and T6 tempers provide optimized yield strength (≥ 170 MPa) and ultimate tensile strength (≥ 205 MPa), preventing frame bowing or warping under extreme thermal expansion cycles.
EPDM Continuous Triple Sealing
Air tightness and water penetration resistance rely on vulcanized EPDM (Ethylene Propylene Diene Monomer) composite gaskets. Combined with multi-point perimeter locking systems, our door assemblies maintain maximum water resistance up to 700 Pa under driving storm conditions.
Advanced Glazing Integration
Engineered to accept double, triple, or vacuum insulated glass units (IGUs) with argon gas fills, warm-edge flexible spacers, and selective Low-E coatings (such as Solarban 60/70), dramatically reducing overall building HVAC cooling and heating loads.
Global Sourcing Trends & Architectural Fabrication Forecast (2025–2030)
Strategic intelligence for international B2B procurement managers, real estate developers, and envelope engineers.
1. Decarbonization and Low-Embodied-Carbon Extrusions
Global building energy codes (such as Europe’s EPBD directive and North American LEED v4.1 standards) are shifting focus from operational carbon to embodied carbon. As a forward-thinking Chinese manufacturer, our factory integrates solar-powered aluminum extrusion lines and utilizes low-carbon smelted aluminum billets, backed by verified Environmental Product Declarations (EPD).
2. Ultra-Narrow Sightlines & Motorized Smart Actuation
The architectural demand for minimal visible frames (interlocks as thin as 20mm) continues to dominate high-end residential and hospitality sectors. Future door systems feature hidden frame perimeter tracks, automated sensor-driven motorized concealed operators, and smart home connectivity via Zigbee/KNX protocols integrated directly into hardware lock gearboxes.
3. Extreme Weather Adaptation & Hurricane Impact Certification
With increasing frequency of extreme weather events in coastal markets (Australia, Caribbean, Southeastern US), B2B buyers are prioritizing doors with Florida Product Approval (FPA) and High-Velocity Hurricane Zone (HVHZ) ratings. Impact-resistant laminated glass combined with reinforced structural steel stuffer bars inside aluminum profile mullions is becoming a baseline procurement requirement.
Why Source From Our China Fabrication Facility?
Delivering robust OEM/ODM capabilities, stringent quality assurance, and seamless international shipping logistics.
5-Axis CNC Precision Machining
Automated German-built 5-axis milling centers execute corner joints, hardware lock slots, and concealed drainage slots with tolerances within ±0.1mm, ensuring flawless field assembly on site.
Customized Surface Finishing
In-house powder coating lines certified by Qualicoat Class 2 standards, offer over 200 RAL custom colors, wood-grain heat transfer textures, and anti-corrosion anodizing designed for marine environments.
Full Export Crating Logistics
Every custom door unit is protected with anti-scratch protective films, shock-absorbing corner caps, vacuum desiccant packaging, and packed inside steel-reinforced fumigated wooden crates tailored for FCL sea freight.
Frequently Asked Questions (B2B Procurement FAQ)
Detailed technical and commercial answers to assist project specifiers, importers, and general contractors during the sourcing process.
Q1: How do your aluminum door systems achieve compliance with Australian Standard AS2047?
Our AS2047-compliant door series undergo NATA-accredited lab testing for structural deflection (ultimate limit state wind pressure), air infiltration (AS4420.4), water penetration resistance (AS4420.5), and operating force tests. Profiles are engineered with heavy wall thicknesses and reinforced thermal strips tailored specifically to Australian building codes.
Q2: What is the technical difference between 6063-T5 and 6063-T6 aluminum profiles?
Both alloys belong to the Al-Mg-Si series. 6063-T5 is air-cooled after extrusion and artificially aged, offering excellent surface finish quality, extrudability, and sufficient structural strength for standard door frames. 6063-T6 undergoes solution heat treatment and water quenching, yielding higher tensile strength and hardness suitable for structural curtain wall mullions and heavy-span sliding glass doors subjected to severe wind loads.
Q3: How do polyamide thermal breaks (PA66GF25) prevent condensation and heat loss?
Aluminum has a high thermal conductivity (~200 W/m·K). A polyamide thermal break strip reinforced with 25% glass fiber has a conductivity of only ~0.3 W/m·K. By mechanically crimping this insulating strip between outer and inner aluminum profile chambers, thermal bridging is effectively broken, maintaining indoor frame surface temperatures above dew point and reducing total HVAC thermal loss by up to 60%.
Q4: What project documentation is provided before order manufacturing begins?
Upon contract confirmation, our technical engineering team generates comprehensive CAD shop drawings, 3D section details, structural calculation reports, glass build-up schedules, hardware brand specifications, and color sample coupons for formal sign-off by the project architect or developer.
Q5: Can you supply smart electronic lock integration and multi-point hardware options?
Yes. Our aluminum entry doors and lift-slide systems integrate seamlessly with world-leading hardware brands including German Roto, Siegenia, Hoppe, and CMECH. Options include biometric fingerprint scanners, keypad entry, electric strike plates, motorized lock body drives, and continuous 5-point locking mechanisms for maximal forced-entry resistance.
Q6: What are the minimum order quantities (MOQ) and production lead times for custom exports?
For standard profile systems and stock RAL finishes, our MOQ is flexible (typically starting from 50 square meters or project-based custom packages). Customized extrusion dies or special PVDF color matches take approximately 15-20 days for sample approval, with mass production finished in 25-35 calendar days ready for ocean container loading.
Request a Direct Technical Quotation & CAD Shop Drawing Review
Partner with China's leading aluminum door fabrication engineering factory. Send us your architectural drawings, window schedules, or performance specifications for an immediate proposal.
