Factory Direct Catalog
Featured Wholesale Aluminium Sliding & Architectural Systems
Precision-engineered aluminium patio doors, ultra-narrow sliding frames, and heavy-duty thermal break glazing systems customized for international developers, wholesalers, and architects.
Glass Cabinet Door Air Smart 4Mm Tempered Glass Aluminum Frame Picture Windows For Office And Display Furniture
4 Panel Center Opening Europe Exterior Aluminium Sliding Patio Doors With Screen
Foshan Aluminum Alloy Entry Doors Factory High Quality Modern Finished Swing Glass Door for Villa CE Certified
Exterior Conceal Stacking Sliding Patio Door Large Double Tempered Aluminumdoor Hidden Glass Pocket Slide Doors Inside

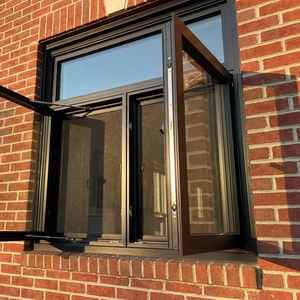

French Style Multi Chamber Design Project Solution Total Service Custom High Quality Aluminum Casement Window
Optional Low-E Glass Eco-Friendly Simline Frame Aluminium Heritage French Doors Thermal Polyamide Break Exterior Living Room
HENNISSY AC 100 Modern French Design Aluminum Glass Sliding Door Top Seller Commercial Flyscreen with Finished Surface Wholesale
B2B Procurement Whitepaper
Engineering Excellence in China Wholesale Aluminium Framed Sliding Doors Manufacturing
In modern architectural design, the demand for high-performance structural glazing has driven significant advancements in aluminium framed sliding door manufacturing. As a leading manufacturer base in Foshan, China, specialized window systems providers like Meric Window Systems Co., Ltd. integrate advanced European extruding standards with precision manufacturing technologies. Sourcing architectural aluminium sliding doors from certified Chinese OEM/ODM suppliers offers international developers, general contractors, and trade wholesalers an optimal balance of structural strength, thermal efficiency, design versatility, and procurement economy.
Information Gain Insight: The structural performance of slimline sliding doors relies heavily on moment of inertia ($I_x$) calculations. By employing 6063-T5 aluminium profiles with structural steel reinforcements embedded within interlocks, manufacturers achieve interlock sightlines as narrow as 20mm while supporting glass sash weights exceeding 400kg and wind load resistance ratings up to 4.5 kPa (Class 5 standard under EN 12210).
1. Key Technical Specifications & Metallurgy of Aluminium Sliding Doors
Procuring commercial-grade aluminium sliding door systems requires strict evaluation of raw profile compositions, thermal break strip configurations, glazing units, and operational hardware. Understanding these key variables ensures long-term weatherability and compliance with regional building standards such as AS2047 (Australia), CE EN14351-1 (Europe), and ASTM E330 (USA).
6063-T5 Extruded Aluminium Profile
Utilizes primary billet aluminium with magnesium and silicon additives, heat-treated to T5 temper for optimal yield strength (≥110 MPa) and corrosion resistance under marine exposure.
PA66GF25 Thermal Break Strips
Employs 24mm to 34mm Polyamide (PA66) reinforced with 25% fiberglass, physically isolating interior and exterior profile sections to reduce thermal transmittance (U-frame values below 2.0 W/m²K).
Double & Triple Low-E Glazing
Configured with insulated glass units (IGU) featuring argon gas filling, warm-edge spacers, and double-silver Low-E coatings to achieve Solar Heat Gain Coefficients (SHGC) down to 0.28.
Technical Matrix: Profile & System Engineering Parameters
| Performance Parameter | Standard Specification | High-Performance / Coastal Option | Testing & Compliance Standard |
|---|---|---|---|
| Profile Alloy & Temper | 6063-T5 Primary Aluminium Billet | 6063-T6 / Structural Steel Inserts | GB/T 5237 / EN 755 |
| Profile Wall Thickness | 1.4mm – 2.0mm Nominal | 2.2mm – 3.0mm Structural Heavy Duty | AS2047 / BS 8118 |
| Thermal Transmittance (U-Value) | 2.2 – 2.8 W/m²K (Standard Break) | 1.0 – 1.6 W/m²K (Triple Low-E + PA66GF25) | ISO 10077-2 / NFRC 100 |
| Air Tightness / Permeability | Class 4 (600 Pa) | Class 4 High Sealing (EPDM Multi-Gasket) | EN 12207 / ASTM E283 |
| Water Tightness Resistance | Class 7A (300 Pa) | Class 9A (600 Pa) Concealed Drainage Track | EN 12208 / ASTM E331 |
| Wind Load Resistance | P2 = 2500 Pa (Serviceability) | P3 = 4500 Pa (Ultimate Structural Limit) | EN 12210 / AS4055 |
| Acoustic Insulation (Rw) | 32 dB – 36 dB (Standard IGU) | 40 dB – 45 dB (Laminated Acoustic Glass) | ISO 717-1 / ASTM E413 |
2. Future Procurement Trends in Wholesale Aluminium Sliding Doors (2025–2030)
The global construction and building envelope sector is undergoing a rapid transition toward carbon-neutral construction materials, smart home automation, and hyper-minimalist design aesthetics. B2B buyers, architectural specifiers, and wholesale distributors sourcing from China must realign their procurement strategies to capture these emerging commercial shifts:
Ultra-Narrow Interlock Sightlines (16mm to 22mm)
Architectural visual trends demand maximum glass area with minimal frame interference. Next-generation sliding systems feature interlocks under 20mm width while embedding concealed multi-point lock rods inside structural dynamic profiles.
Motorized & Smart Home Integration
Heavy panel sliding doors (exceeding 300kg per panel) are increasingly specified with hidden brushless magnetic motor drives, linear actuator automation, obstacle sensors, and smart-home access control sync (Zigbee/KNX protocols).
EPD & Low-Carbon Recycled Aluminium
Green building ratings (LEED, BREEAM, Green Star) now require Environmental Product Declarations (EPD). Leading Chinese manufacturers utilize secondary recycled aluminium billets (saving up to 95% embedded processing energy) without compromising structural tensile integrity.
3. Product Evolution & Manufacturing Technological Innovations
The wholesale manufacturing landscape in China has shifted from low-cost manual assembly to high-precision CNC automation and advanced mechanical finishing. Sourcing modern aluminium sliding doors involves appreciating key manufacturing innovations:
- Concealed Threshold & Flush Track Systems: Zero-threshold barrier-free drainage systems designed with stainless steel linear gutters prevent water ingress during storm surges while providing seamless interior-to-exterior floor transitions.
- Fluorocarbon (PVDF) & Electrostatic Powder Coating: Utilizing AkzoNobel or PPG powders guarantees color retention, UV resistance, and salt-spray durability exceeding 3000 hours under ASTM B117 standards—essential for beachfront resort developments.
- Heavy-Duty Stainless Steel Roller Assemblies: Precision CNC-machined tandem rollers with sealed Japanese bearings ensure frictionless sliding action for large-format lift-and-slide door panels rated for up to 100,000 continuous operation cycles.
4. Enterprise Advantages: Why Partner with Meric Window Systems
As a specialized OEM/ODM manufacturer in China, Meric Window Systems Co., Ltd. offers overseas clients a comprehensive technical delivery infrastructure designed to de-risk overseas procurement:
Engineering-First Project Evaluation
Every commercial query undergoes rigorous structural wind load calculations, shop drawing validation, and thermal modeling prior to order sign-off.
Strict Factory QC & Pre-Assembly
100% of finished window and door units undergo test assembly, diagonal alignment checks, and water tightness verification prior to export crating.
Export-Grade Protective Packaging
Units are fully wrapped with protective surface films, corner guards, EPDM padding, and locked inside IPPC ISPM-15 certified fumigated plywood crates or steel racks.
Procurement Guidance
Frequently Asked Questions (FAQ) for Overseas B2B Buyers
Detailed answers to technical, logistical, and commercial inquiries commonly raised by global contractors and distributors.
What is an ultra-narrow sightline aluminium system?
An ultra-narrow sightline aluminium sliding system reduces the visible profile width at vertical interlocks to between 20mm and 30mm. Structural loads are accommodated by deep profile depth, steel interlock stiffeners, and structural silicone glass bonding, delivering maximum daylight transparent area with architectural minimalism.
Can Meric Window systems be tested and certified to local standards?
Yes. Our production lines fabricate products according to international building standards including Australian standard AS2047 / AS1288, European CE EN14351-1, and North American NFRC / ASTM guidelines. Project-specific testing reports for structural air, water, and wind pressure can be provided during technical submittals.
Which aluminium alloy and thermal break materials are used?
We exclusively extrude high-grade primary 6063-T5 aluminium alloy profiles. Thermal break barrier systems utilize imported Polyamide PA66GF25 (25% glass fiber reinforced) insulation strips, which maintain mechanical strength under extreme hot and cold climatic cycles.
What information is required to receive a comprehensive project quotation?
To provide an exact engineering quotation, please supply architectural elevation drawings or a window/door schedule indicating opening dimensions, sliding configuration (e.g., 2-track 2-panel, 3-track pocket door), glass unit performance specs (double/triple Low-E), frame finish color code (RAL/PVDF), and destination site location.
How are large glass sliding doors packaged for ocean freight transportation?
Finished window and door assemblies are wrapped in multi-layer protective foam, edge protectors, and shrink film. Heavy panels and frames are secured vertically into custom-built, heavy-duty fumigated wooden crates or steel A-frame racks equipped with lifting straps for safe forklift unloading at project sites.
Partner with China's Premier Aluminium Sliding Door Manufacturer
Submit your project schedules, CAD drawings, or wholesale specifications to receive an engineering review, structural evaluation, and competitive factory quotation.
