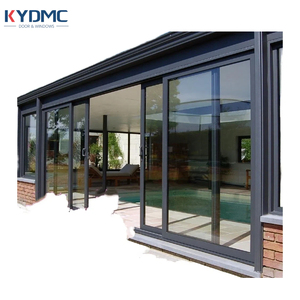

Courtyard Thermal Insulation Double Glass Sliding Door

Courtyard Entry Thermal Break Double Glazed Patio Sliding Doors

Get Catalog
Aluminium Frame Glass Cabinet Door MR201

Precision Engineered Aluminium Frame Glass Cabinet Profile MR201

Get Catalog
NFRC Hurricane Proof 4 Tracks Sliding Balcony Door

NFRC Outdoor Hurricane Proof 4-Track Balcony Sliding Door

Get Catalog

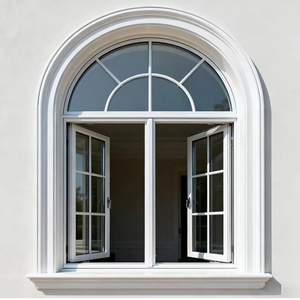

Retro Arched Top Aluminium Casement Window

Retro Architectural Arched Top Aluminium Security Casement Window

Get Catalog
Outdoor Exterior Bifold Doors Double Tempered Glass

Modern Design Exterior Heavy-Duty Aluminium Bi-Folding Patio Doors

Get Catalog

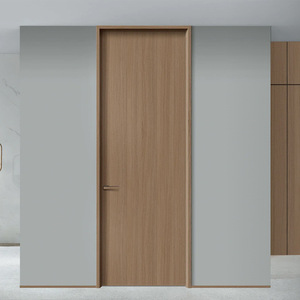

Aluminium Wood Grain Italia Style Waterproof Interior Door

Italia Style Wood Grain Finished Waterproof Aluminium Internal Door

Get Catalog

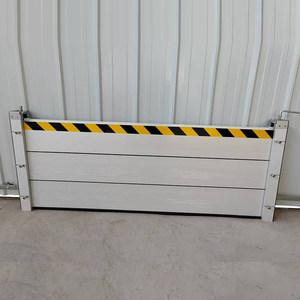

Control Barrier Modular Flood Protection Barrier

Modular Water Protection Flood Gate Barrier Aluminium Alloy System

Get Catalog
Technical Whitepaper & Sourcing Specification

Executive Overview: The Evolution of China Aluminium Jali Windows in Global Architecture

In contemporary architectural design, the Aluminium Jali Window (incorporating integrated security mesh, perforated lattice grills, and architectural decorative screens) has transformed from a regional design preference into a globally recognized building envelope standard. Modern commercial developments, luxury residential villas, and coastal resorts increasingly specify thermal break aluminium Jali systems to achieve three critical structural objectives simultaneously: uncompromised physical security, optimal micro-climatic ventilation, and high-performance thermal insulation.

As a leading hub for global fenestration manufacturing, China wholesale aluminium Jali window manufacturers have pioneered the convergence of 6063-T5/T6 architectural-grade extrusions, advanced powder coating metallurgy, and precision CNC laser-cut mesh integration. Unlike legacy steel security grills or uninsulated iron lattice windows, modern engineered aluminium Jali window systems incorporate multi-chamber polyamide thermal barrier strips (PA66GF25), structural silicone glazing pockets, and high-tensile 304/316 marine-grade stainless steel woven wire mesh (commonly specified as "King Kong Mesh").

Information Gain Insight: Standard window procurement often evaluates frame aesthetics alone. However, high-tier architectural specs mandate structural wind load resistance calculated under ASTM E330 / EN 12210 standards. Advanced China Jali window profile extrusions feature structural wall thicknesses ranging from 1.6mm to 3.0mm, allowing for continuous frame heights exceeding 3.5 meters without structural deflection under severe typhoon conditions.

Enterprise Manufacturing & Engineering Capabilities

Why international architects, building developers, and trade importers partner with Meric Window Systems for large-scale procurement.

6063-T5 Structural Alloy Precision

Profiles extruded exclusively from primary billet 6063-T5 architectural aluminium alloy, offering high tensile strength, superior surface grain, and resistance to environmental stress cracking.

PA66GF25 Thermal Break Barriers

Engineered with 25% glass fiber reinforced polyamide insulating strips, drastically cutting U-values down to 1.1–1.6 W/m²K for extreme heat, desert, or cold weather compliance.

100% Factory Pre-Shipment Inspection

Every finished Jali window unit undergoes rigorous factory testing including air tightness (EN 12207), water penetration (EN 12208), corner joint shear tests, and hardware torque checks.

10+
Architectural Series Systems
0.8-1.4
Engineered U-Value Range
100%
Traceable QC Pre-Shipment
3000Pa+
Wind Pressure Resistance

Structural Deep-Dive: Material Science of Aluminium Jali Windows

When procuring wholesale aluminium Jali windows from China factories, procurement directors must understand the critical performance metrics that separate low-cost consumer units from institutional architectural grade fenestration.

1. Profile Extrusion & Surface Treatment Standards

High-grade aluminium Jali profiles utilize alloy composition 6063 with a T5 or T6 artificial aging treatment, ensuring a ultimate tensile strength of no less than 160 MPa and yield strength exceeding 110 MPa. For coastal exposure (corrosion resistance category C4/C5 under ISO 12944), surface finishing specifies Fluorocarbon PVDF coating (Kynar 500 resin minimum 70% content, 3-coat system ≥ 40 microns) or Qualcomm-certified AkzoNobel powder coating (film thickness 60–80 microns), resisting salt spray corrosion up to 3,000 hours per ASTM B117 standards.

2. High-Security Jali Mesh & Decorative Lattice Integration

The core value of an aluminium Jali window lies in its integrated dual-layer functionality. The outer sash or integrated mesh frame utilizes 0.7mm–1.0mm wire diameter SS304 / SS316 High-Tensile Mesh woven with a 12-mesh or 14-mesh precision weave. This mesh withstands knife shear tests (AS5041) and heavy impact tests (AS5049) while preserving 75% natural sunlight transmission and insect filtration. Alternatively, CNC-milled decorative aluminium alloy Jali plates (3mm to 6mm solid plate thickness) can be customized with geometric, Islamic, or modern minimalist lattice patterns, providing customized exterior solar shading (shading coefficient SC 0.35–0.50).

3. Multi-Point Locking & Security Hardware Matrix

Security Jali casement and sliding windows incorporate heavy-duty multi-point gearboxes driven by concealed transmission rods made of stainless steel 304. German-engineered hardware systems (such as Siegenia, HOPPE, or high-tier domestic hardware like HOPO) lock the sash to the frame at 4 to 8 anchor points simultaneously. This eliminates frame twist and provides burglar resistance up to European RC2 / RC3 certification standards.

Architectural Engineering Comparison Matrix

Comparative technical metrics across standard security Jali, thermal-break Jali, and motorized panoramic systems.

System Classification Profile Alloy & Thickness Jali Screen / Mesh Type Glazing Specification Thermal Insulation (U-Value) Primary Application
Standard Security Jali Casement 6063-T5 Aluminium (1.6mm) 0.8mm SS304 High-Tensile Mesh 5mm + 12A + 5mm Tempered Glass 2.2 - 2.8 W/m²K Residential Villas, Apartment Complexes
Thermal Break High-Security Jali 6063-T5 with PA66GF25 (2.0mm) 0.9mm SS316 Marine-Grade Mesh 6mm Low-E + 16Ar + 6mm Double IGU 1.3 - 1.7 W/m²K Luxury Coastal Estates, High-Rises
CNC Laser-Cut Decorative Jali 6063-T6 Heavy Extrusion (2.5mm) 4mm CNC Aluminum Decorative Plate 6mm + 12A + 6mm Tinted / Low-E 1.5 - 2.0 W/m²K Hotels, Resorts, Cultural Facades
Motorized Panoramic Jali Sliding Ultra-Slim Frame Profile (3.0mm) Motorized Retractable Concealed Mesh 8mm Triple Silver Low-E + 18Ar + 8mm 0.9 - 1.2 W/m²K Penthouse Suites, Luxury Showrooms

Future Procurement Trends (2025–2030)

Strategic market forces shaping the next generation of wholesale aluminium Jali window manufacturing in China.

1. Micro-Sightline Engineering & Hidden Frame Jali

Architectural demand is rapidly moving towards ultra-narrow sightlines (20mm–35mm visible vertical interlocks). Future Jali windows feature completely concealed sash profiles where the stainless steel security screen sits flush within the outer frame track, maintaining zero visual bulk without sacrificing security.

2. Smart Automation & Motorized Jali Screen Actuation

Integration with Smart Building Management Systems (BMS) is becoming standard for luxury hospitality projects. Direct-current linear electric actuators allow motorized Jali mesh screens to slide or fold automatically based on wind, rain, and solar irradiation sensor feedback.

3. Decarbonization & Recycled Billet Sourcing

With global green building certifications (LEED, BREEAM, EDGE) enforcing low embodied carbon, Chinese extruders are transitioning to low-carbon primary aluminum powered by hydro-electric smelters, reducing carbon intensity below 4.0 kg CO2/kg Al extruded profile.

4. Parametric CNC Laser Jali Customization

Moving away from rigid stock designs, modern factories offer 5-axis CNC laser cutting directly linked to architectural CAD/BIM models. Real estate developers can specify proprietary signature pattern motifs across thousands of window units without requiring expensive custom extrusion dies.

B2B Procurement Frequently Asked Questions

Direct technical answers for commercial purchasing managers, importers, and structural engineers.

1. What structural specifications are required for custom aluminium Jali window extrusion tooling?

To initiate custom extrusion tooling for wholesale aluminum Jali windows, our engineering department requires detailed DWG/DXF CAD files specifying wall thicknesses, thermal break cavity placement, gasket retention slots, and hardware groove dimensions (e.g., standard Euro-groove Type 15.5mm). New die creation typically requires 10 to 14 business days, accompanied by initial T1 sample extrusion inspection and dimensional tolerance reports meeting GB/T 5237 / EN 755 standards.

2. How do Chinese manufacturers guarantee salt-spray and corrosion resistance for coastal projects?

For marine and island environments (within 1km of ocean shorelines), standard anodizing or architectural powder coat is insufficient. We apply a chromate-free pre-treatment conversion layer followed by Qualicoat Class 2 or Class 3 super-durable powder coating, or a 3-coat Fluorocarbon PVDF resin system. Furthermore, all assembly hardware, screws, corner brackets, and Jali screen retainers are specified in Grade 316 stainless steel to prevent galvanic corrosion between dissimilar metals.

3. How are fully glazed Jali window units packaged to prevent damage during containerized ocean freight?

Export packing compliance involves a 5-layer protective protocol: 1) Surface protective polyethylene film applied to all coated aluminum faces; 2) High-density EPDM rubber corner protectors on all 4 corners; 3) Bubble-wrap vapor barrier seal; 4) Fully enclosed fumigated wooden crates or heavy-duty A-frame steel shipping racks; 5) Desiccant pack insertion inside glass crates to absorb humidity during ocean transit. Each crate is labeled with project elevation codes matching your architectural schedule for seamless site sorting.

4. Can your aluminium Jali window systems achieve international building code certification (AS2047, CE, NFRC)?

Yes. Our fenestration systems are engineered for global compliance. For the Australian market, profiles and glazed units are tested to AS2047 (Windows in buildings) and AS1170 (Structural design actions). For North America, selected systems feature NFRC thermal certification and Florida AAMA impact ratings. For European destinations, full CE marking is available under EN 14351-1, covering air permeability, water tightness, wind load resistance, and acoustic STC ratings.

5. What is the standard minimum order quantity (MOQ) and lead time for wholesale project orders?

For standard profile systems with stock powder coating finishes (such as Matt Black, Charcoal Grey, Pure White), our project MOQ starts at 100 square meters. For custom architectural colors, wood-grain sublimation, or specialized laser-cut Jali patterns, the minimum order is typically 300 square meters or one 20GP container load. Production lead times range from 25 to 35 calendar days after shop drawing approval and deposit receipt.
