Engineered Aluminium Doors & Windows Catalog
Factory-direct high-security architectural systems manufactured from premium 6063-T5 aluminium alloy with advanced multi-point hardware integration.
American Modern Design Aluminum Clad Wood Tilt Turn Casement Windows with Tempered Glass Magnetic Screen for Villa & Hotel Use
Exterior Conceal Stacking Sliding Patio Door Large Double Tempered Aluminumdoor Hidden Glass Pocket Slide Doors Inside

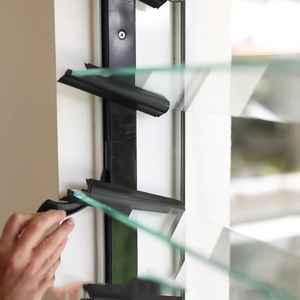

Australian Standard Window Glass Louver Automated Glass Jealousy Louvers Aluminium windows Airier Louvre windows Blades Glass

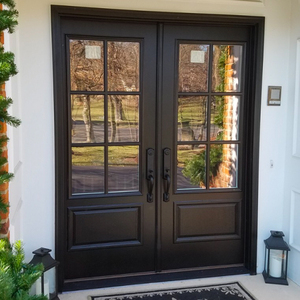

Custom Villa Main Entrance Door Aluminum Casement Door Double Tempered Glass Thermal Insulation For Front Entry Doors

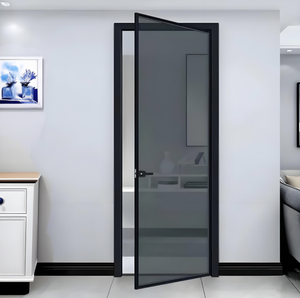

A60 Fire Rated Aluminum Casement Door 60Min Fire Resistance Tempered Glass for Commercial Fire Exit Villa Factory Test Report
Waterproof Aluminum Interior Internal Doors Custom Minimalist Flat Panel For Apartment
High Traffic Modern Aluminum Glass Swing Door with Sound Insulation for Retail Store Supermarket Convenience Shop Commercial Use
SJUMBO Customization Modern Commercial Security Double-Layer Aluminium Swing Exterior Entrance Smart Door
Engineering Principles of Modern Aluminium Security Doors
Why leading global developers, architects, and procurement heads source architectural aluminium security systems directly from Chinese manufacturing hubs.
Structural Integrity & Alloy Selection
Unlike standard residential grade profiles, high-security aluminium doors utilize virgin 6063-T5 or 6061-T6 extruded aluminium alloys with a minimum wall thickness ranging from 2.0mm to 3.0mm. The metallurgical composition ensures superior tensile strength (>= 180 MPa) and yield strength (>= 145 MPa), rendering the frame resilient against mechanical attacks, prying, and heavy impact.
Advanced Thermal Insulation (PA66)
Security no longer requires sacrificing thermal comfort. Modern profiles integrate polyamide 66 reinforced with 25% glass fiber (PA66-GF25) thermal break strips. This dual-chamber structure reduces the frame thermal transmittance (U-factor) down to Uf <= 1.6 W/m²K, preventing thermal bridging, heat transfer, and moisture condensation in extreme ambient climates.
Multi-Point Security Locking Hardware
Security door assemblies feature precision-engineered multi-point locking mechanisms (3 to 7 locking bolts) driven by gear-assisted transmission gearboxes. Systems incorporate anti-drill steel protection plates, anti-snap euro cylinders, and motorized smart access controls compatible with biometrics, RFID, and automated building management systems (BMS).
Information Gain: Standards & Certification Guide for Wholesale Procurement
When importing architectural security doors from Chinese suppliers, structural compliance must align with destination market standards. High-performance aluminum security entrance doors are tested according to EN 1627-1630 (European Burglar Resistance Classes RC2, RC3, and RC4), PAS 24 (UK Security Requirements), and ASTM E1300 / NFRC standards. Standard commercial doors resist manual force, but certified security assemblies withstand attacks using heavy hand tools, crowbars, and mechanical drills for set time intervals.
Future Procurement & Sourcing Trends in Aluminium Security Doors
Strategic insights for global importers, project developers, and building material distributors.
1. Convergence of Smart IoT & Invisible Security
Future security doors are stepping away from bulky external security grilles. The market demands ultra-narrow sightlines with concealed multi-point electric drop bolts, 3D facial recognition cameras embedded seamlessly inside the thermal break profile, and motorized automatic locking upon closure. Wholesale buyers must partner with manufacturers offering pre-wired frame channels and universal smart lock prep.
2. Carbon Footprint & Low-Carbon Aluminium (Green Sourcing)
With Europe's CBAM (Carbon Border Adjustment Mechanism) and global ESG policies coming into full effect, leading Chinese manufacturers are adopting hydro-powered recycled aluminium billets (carbon emissions lower than 4.0 kg CO2/kg Al). Sourcing doors certified with Environmental Product Declarations (EPD) grants developers significant LEED and BREEAM project credits.
3. Hybrid Glazing: SGP Laminated Security Glass
Traditional tempered glass is being replaced by double or triple insulated glass units (IGU) featuring SentryGlas® (SGP) ionoplast interlayers. SGP interlayers are 5 times tougher and up to 100 times stiffer than standard PVB interlayers, ensuring that even if glass shatters under forced entry or extreme storm blasts, the panel remains structurally rigid inside the aluminium rebate.
Security Door Specification Comparison Matrix
Evaluating door materials and structural configurations for high-end residential and commercial projects.
| Performance Metric | Extruded Thermal Break Aluminium | Standard Non-Thermal Aluminium | Solid Steel / Wrought Iron | Aluminium-Clad Timber |
|---|---|---|---|---|
| Security Resistance (EN 1627) | RC2 to RC4 Certified | RC1 to RC2 Basic | RC3 to RC5 Heavy Duty | RC2 to RC3 Standard |
| Thermal Insulation (U-Value) | 1.2 - 1.8 W/m²K (Excellent) | 3.5 - 5.0 W/m²K (Poor) | 2.8 - 4.2 W/m²K (Moderate) | 0.9 - 1.4 W/m²K (Superior) |
| Corrosion & Coastal Resistance | PVDF / Anodized (25+ Yrs) | Powder Coated (10 Yrs) | Prone to Rusting (Needs Maintenance) | Weather-Exposed (Needs Maintenance) |
| Weight to Strength Ratio | Optimal (Low Hardware Wear) | Lightweight | Extremely Heavy (Hinge Sagging Risk) | Moderate to Heavy |
| Architectural Customization | Ultra-Narrow / Flush Finishes | Standard Profiles | Traditional / Bulky Frames | Premium Luxury Interior Aesthetics |
Factory Strengths & Technical Quality Control
Precision CNC Fabrication
Utilizing 5-axis CNC machining centers for automatic corner crimping, lock mortising, and hardware slot milling, ensuring dimensional tolerances within +-0.5mm across bulk orders.
Dual-Component Corner Jointing
Frame corners are secured with solid cast aluminium corner keys injected with dual-component epoxy resin adhesive, establishing gas-tight sealing and maximum structural frame rigidity.
Export-Grade Container Crating
Every unit is wrapped with protective surface film, fitted with impact-resistant corner guards, and secured inside fumigated solid wooden crates or customized steel container racks.
Frequently Asked Questions (FAQ) for Procurement Officers
Essential technical and commercial clarity before issuing Purchase Orders (PO).
What is an ultra-narrow sightline aluminium security door system?
It is an advanced architectural window or door system where the visible face width of the aluminium frame at the interlock or mullion is minimized (typically down to 20mm–30mm). Structural load-bearing and security functions are transferred to high-tensile 6063-T5 alloy profiles and SGP laminated glazing units, maximizing natural daylight without sacrificing forced-entry resistance.
Can your aluminium security doors be tested and certified to local regional standards?
Yes. Third-party performance testing for air tightness (ASTM E283), water penetration resistance (ASTM E331), structural wind load (ASTM E330), and forced entry resistance (EN 1627 RC2/RC3 or PAS 24) can be arranged with recognized international testing labs (Intertek, SGS, or TUV) prior to bulk container dispatch.
What aluminium alloy and thermal break configurations are specified for international projects?
Extrusions utilize 6063-T5 primary aluminium alloy for crisp surface finishes and high mechanical strength. Thermal insulation is achieved through imported Polyamide PA66-GF25 thermal break strips, paired with double or triple insulated glass units (Low-E coated with Argon gas fills) to fulfill strict local energy code requirements (Title 24, NCC Australia, or EU Energy Performance of Buildings Directive).
What critical information is required to receive a fast, accurate OEM quote?
Please supply architectural elevation drawings, door schedule details including clear rough opening sizes, opening direction (inward/outward swing, slide, or fold), glass technical specs, surface treatment preference (RAL powder coat, PVDF, or anodized finish), and hardware grade requirements (e.g., German Siegenia/HOPPE or custom smart lock integrations).
How are doors protected against damage during international ocean transport?
Finished units undergo a 5-layer protective packaging procedure: electro-static protective surface film, heavy-duty EPE foam wraps, rigid corner guards, waterproof plastic shrink film, and fully enclosed plywood crates reinforced with internal steel banding designed for safe forklift unloading at project sites.
Ready to Engineer Your Project's Security Doors?
Connect directly with our engineering department for shop drawing reviews, structural calculations, thermal simulations, and direct factory wholesale pricing.
