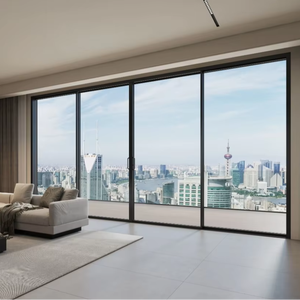

Durable Four Panel Aluminum Alloy Sliding Door With Anti Rust Coating for Bedroom Bathroom Wardrobe

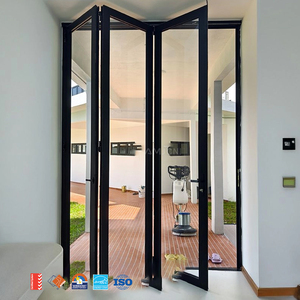

AMJ Australian Project AS2047 Standards Commercial High Quality Balcony Exterior Villa House Aluminum Folding Door
Partition Aluminium Fiber Glass exterior Sliding Door System and Doors Catalogue List
Luvindow Aluminum Doors for House Security Front Entrance Door With Smart Lock
Strategic Sourcing of Chinese Wholesale Aluminium Single Hung Windows: Manufacturing Standards, Metallurgy, and Structural Mechanics
In modern B2B fenestration procurement, evaluating a China wholesale aluminium single hung windows factory extends far beyond unit pricing. Real project success requires rigorous examination of structural profile alloy composition, thermal break cavity thermodynamics, constant-force balance spring longevity, and compliance with stringent regional building envelopes such as North American AAMA/WDMA/CSA 101/I.S.2/A440 standards and European EN 14351-1 codes.
Single hung aluminium window systems represent a cornerstone of contemporary residential, multi-family, and commercial architectural envelope designs. Unlike double hung variants where both sashes operate vertically, a single hung configuration features a fixed top panel and a movable lower sash. This design inherently minimizes weatherstrip wear points, enhances structural deflection performance ($L/175$ or $L/240$), and significantly increases long-term water penetration resistance ($Pa$). As global building energy performance mandates accelerate toward Net-Zero Energy (NZE) benchmarks, Chinese manufacturing clusters in Foshan, Guangdong, and Shandong have undergone a sophisticated technological revolution—transitioning from basic commodity extrusions to high-precision, thermally broken, CNC-milled architectural fenestration systems.
Anatomy of an Export-Grade Single Hung Aluminium Window System
Extrusion & Profile Alloys
Top-tier Chinese factories utilize primary billet 6063-T5 or 6063-T6 extruded aluminium alloy profiles with nominal wall thicknesses ranging from 1.4mm to 2.0mm for commercial structural integrity, preventing frame racking under wind loads.
Thermal Break Cavity Physics
By incorporating imported Polyamide 66 reinforced with 25% fiberglass (PA66-GF25) strips, the thermal bridge between exterior and interior profile chambers is severed, reducing linear thermal transmittance ($\lambda \le 0.3 \text{ W/m}\cdot\text{K}$).
Constant-Force Spring Balances
Heavy-duty sashes weighing over 40kg rely on stainless steel coil or block-and-tackle balance systems, calibrated for minimum manual operating force (< 20 N) and tested for over 20,000 smooth vertical operation cycles.
Technical Insight: Calculating Wind Load & Deflection Resistance
Structural integrity is verified using wind load pressure formulas $P = 0.5 \cdot \rho \cdot V^2 \cdot C_p$. Modern OEM factories calculate section modulus ($W_x$) and moment of inertia ($I_x$) across vertical mullions to guarantee zero permanent deformation under extreme hurricane pressure zones ($DP \ge 50 \text{ psf}$).
Global Sourcing Trends & Future Technology Trajectories (2025–2030)
Procurement heads and real estate developers must align their supply chain matrix with upcoming environmental mandates and architectural technological innovations.
1. Ultra-Narrow Sightlines & Structural Adhesive Glazing
Architectural demand has shifted dramatically toward minimal visible frame profiles. Leading Chinese manufacturing plants are deploying structural silicone glazing (SSG) technology where glass panels are directly bonded to slim extruded frames, maximizing daylight transmission while maintaining high structural resistance.
2. Triple Glazing & Warm Edge Spacer Integration
To conform with aggressive carbon reduction goals (such as Title 24 in California and EU Energy Performance of Buildings Directive), wholesale supply lines are transitioning from standard double IGU (Insulated Glass Units) to argon-filled triple-glazed units featuring warm-edge composite spacers and soft-coat Low-E glass combinations.
3. Automated CNC Precision & Corner Crimping Integrity
The transition from manual assembly to automated 5-axis CNC machining centers ensures corner joint milling tolerances of $\le 0.1 \text{mm}$. Corner joints are injected with structural two-component epoxy sealants, guaranteeing 100% water seal integrity at vulnerable frame intersections.
4. Advanced Surface Treatments (AAMA 2605 PVDF Coatings)
Coastal high-salinity applications now mandate 3-coat Fluorocarbon (PVDF) resin finishes compliant with AAMA 2605 specifications. This surface treatment delivers extraordinary salt spray corrosion resistance exceeding 4,000 hours, preventing chalking, blistering, and color fading.
Comparative Performance & Specification Engineering Matrix
Use this technical benchmark table to evaluate structural and energy trade-offs when choosing between Single Hung, Double Hung, Casement, and Slim Sliding window platforms for global projects:
| System Configuration | Structural Wind Load (DP) | Air Infiltration (cfm/ft²) | Water Tightness (Pa) | Thermal U-Value (W/m²·K) | Acoustic Rating (STC) | Relative Cost Index |
|---|---|---|---|---|---|---|
| Thermal Break Single Hung | DP 50 - DP 70 | ≤ 0.12 | 450 - 600 Pa | 1.3 - 1.8 | 35 - 42 dB | Optimal (Base 100%) |
| Double Hung System | DP 35 - DP 50 | ≤ 0.20 | 300 - 450 Pa | 1.5 - 2.0 | 32 - 38 dB | +18% to +25% |
| Outward Casement Window | DP 60 - DP 90 | ≤ 0.05 | 600 - 900 Pa | 1.1 - 1.5 | 38 - 45 dB | +25% to +40% |
| Slim Line Sliding Window | DP 40 - DP 60 | ≤ 0.15 | 350 - 500 Pa | 1.4 - 1.9 | 30 - 36 dB | +15% to +30% |
| Ultra-Narrow Curtain Wall Window | DP 70 - DP 100+ | ≤ 0.03 | 700 - 1000+ Pa | 0.9 - 1.4 | 40 - 48 dB | +60% to +100% |
Meric Window Systems Co., Ltd. — Engineering-Driven Manufacturing Ecosystem
As a specialized engineering manufacturer of ultra-narrow aluminium windows, thermal break sliding doors, and curtain wall systems, Meric Window operates under rigid international quality assurance parameters to support global architects, project contractors, and commercial developers.
- In-House Custom Profile Extrusion: High-precision dies for specialized architectural sightlines.
- Advanced Thermal Breaking: Integrated PA66-GF25 insulating strips engineered for extreme thermal gradients.
- Fully Certified Testing Protocols: Rigorous pre-shipment verification for air tightness, water tightness, and structural wind pressure.
- Global Hardware Integration: Compatible with Hoppe, Siegenia, CMECH, and heavy-duty custom spring balances.
- Export Packaging Standards: Reinforced steel/wooden crates engineered for zero-damage container shipping.
- B2B Technical Support: Complete BIM/CAD shop drawing verification prior to mass production.
Frequently Asked Questions for B2B Single Hung Window Sourcing
What are the structural performance differences between single hung and double hung windows?
Single hung windows feature a fixed top sash and a single movable bottom sash. Because the upper glass pane is glazed directly into the perimeter frame, there are fewer moving joint interfaces and weatherstripping seams compared to double hung units. This structural rigidity allows single hung windows to achieve higher Design Pressure (DP) ratings, superior air infiltration sealing, and enhanced long-term water resistance at a lower unit manufacturing cost.
Which aluminium alloy and heat treatment temper are recommended for commercial fenestration?
Extruded aluminium profiles should conform to 6063-T5 or 6063-T6 alloy specifications. 6063-T5 offers excellent surface finish capabilities for powder coating and anodizing with sufficient yield strength (≥ 110 MPa). For high-rise commercial structures requiring higher wind load resistance, 6063-T6 heat treatment provides superior tensile strength (≥ 205 MPa) and enhanced structural rigidity.
How do thermal break profiles prevent interior condensation?
Non-thermal break aluminium exhibits high thermal conductivity ($K \approx 200 \text{ W/m}\cdot\text{K}$), causing interior frame surface temperatures to drop below the dew point in cold weather. By embedding Polyamide 66 thermal break strips ($K \approx 0.25 \text{ W/m}\cdot\text{K}$), the thermal pathway between external and internal aluminium walls is broken. This maintains interior frame temperatures above the condensation threshold, preventing moisture accumulation and mold growth.
What documentation is needed for custom B2B architectural project quotes?
To receive precise engineering quotations, buyers should provide architectural window schedules detailing opening dimensions, sash configurations, glass specifications (Low-E coating, laminated, double/triple IGU), frame finish standards (AAMA 2604/2605), targeted DP/U-factor values, and building elevation project location for wind load calculation.
What balance mechanisms are utilized for heavy vertical sashes?
Modern Chinese factories utilize spiral balances, block-and-tackle balances, or constant-force coil spring balances. For large-format single hung windows with double or triple glazing exceeding 35kg sash weight, constant-force stainless steel coil balances are preferred due to their smooth vertical travel, adjustable tension, and fatigue resistance exceeding 20,000 operational cycles.
How are oversized aluminium window orders packaged for international sea freight?
Commercial export packaging involves multi-layer protective packaging: surface protective film applied to aluminium profiles, corner guards, plastic shrink wrapping, and high-density foam block cushions. Assembled units are packed vertically inside custom-built fumigated plywood crates or welded steel transport racks designed for forklift unloading and zero-movement container stowage.
