Featured Commercial & Residential Aluminum Systems
Precision-engineered white powder-coated and anodized aluminum windows and doors manufactured to international structural and thermal compliance standards.
Modern Large Panoramic Micro Ventilation Window Aluminum Window Double Tempered Glass for House Living Room Villa View
Send an Inquiry
4 Panel Center Opening Europe Exterior Aluminium Sliding Patio Doors With Screen
Send an Inquiry

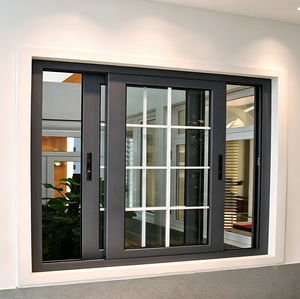

WANJIA AS2047 NFRC Sliding Windows FRAME House Optional Electric Automatic Windows Aluminium Glass Horizontal Sliding Windows
Send an Inquiry

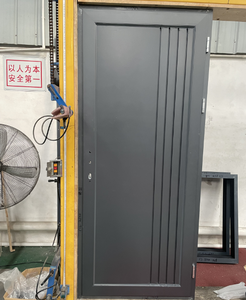

Aluminium Swing Door Aluminium Casement Door Aluminium Side Hung Door
Send an Inquiry

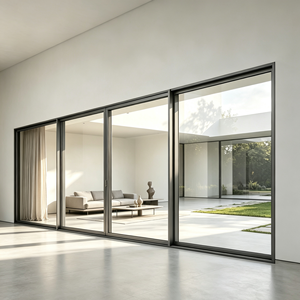

Australian Certificate AS2047 Thermal Break Aluminium Alloy Profile Double Glazed Tempered Glass Modern Horizontal Sliding Doors
Send an Inquiry
Nfrc Outdoor Hurricane Proof Patio Impact 4 Tracks Large Glass Exterior Balcony Thermal Break Aluminum Sliding Doors
Send an Inquiry
Modern Storm-Proof Double-Glazed Aluminum Partition Sliding Door for Commercial Exterior Use in Hotels & Malls
Send an Inquiry

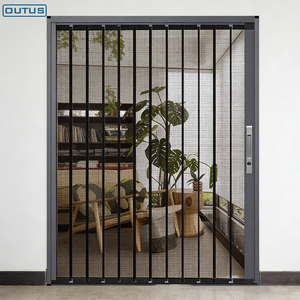

OUTUS Aluminum Alloy Push Pull Diamond Mesh Security Screen Door Anti Theft Sliding Mosquito Net Door for Home
Send an InquiryGlobal Market Dynamics of Chinese Wholesale Architectural White Aluminum Windows
Material Science, Surface Finishing & Thermal Performance Architecture
To specify aluminum windows for coastal, tropical, or sub-zero environments, B2B procurement managers must understand the metallurgical and chemical processes that govern long-term structural life and color retention. White aluminum windows face unique environmental stressors, including ultraviolet (UV) degradation, chalking, thermal expansion stress, and coastal salt-spray corrosion.
Extrusion Alloy & Tempering
Superior window profiles utilize 6063-T5 or 6063-T6 primary aluminum billets. Unlike recycled scrap aluminum which contains uncontrolled iron and silicon impurities, primary 6063 alloy offers superior tensile strength (≥ 160 MPa), yield strength (≥ 110 MPa), and uniform grain structure essential for flawless powder adhesion and high wind-load resistance.
Architectural White Coating
White powder coatings must comply with Qualicoat Class 2 / AAMA 2604 or AAMA 2605 (PVDF/Fluorocarbon) specifications. Pre-treatment involves chromate-free zirconium conversion chemistry to prevent filiform corrosion, ensuring zero chalking or yellowing under high UV index exposures over a 20-year service lifecycle.
Thermal Break & Insulation
Thermally broken systems employ PA66 GF25 (25% glass-fiber reinforced polyamide) structural insulating strips. These strips separate the interior and exterior aluminum profiles, stopping conductive heat transfer, eliminating interior condensation, and achieving frame thermal transmittance values as low as Uf 1.3 W/m²K.
Commercial Fenestration Standard Comparison
Evaluating manufacturer capabilities requires a comparative analysis of system benchmarks across major global export destination standards:
| Performance Standard | Target Region | Air Permeability | Water Tightness | Wind Load Resistance | Key Testing Protocol |
|---|---|---|---|---|---|
| AS2047 / AS1288 | Australia & New Zealand | Class 300 / 150 Pa | 450 Pa - 600 Pa (N4/N5) | Up to 3000 Pa (Ultimate) | Deflection, Air Infiltration, Water Penetration, Ultimate Strength |
| AAMA / WDMA / CSA | North America (USA/Canada) | ≤ 0.1 cfm/ft² | 540 Pa (DP60 - DP80) | Structural Test Pressure (STP) | ASTM E283, ASTM E331, ASTM E330, NFRC Thermal Simulation |
| EN 14351-1 (CE) | European Union & UK | Class 4 (600 Pa) | Class E900 (900 Pa) | Class C5 (2000 Pa) | EN 1026 (Air), EN 1027 (Water), EN 12211 (Wind Load) |
| BS 6375 | United Kingdom & Middle East | 600 Pa Exposure | 600 Pa Dynamic | 2400 Pa Structural | Operation & Strength, Weather Tightness Verification |
Future Sourcing & Engineering Trends in Aluminum Fenestration
As building regulations evolve toward Zero Energy Buildings (ZEB) and decarbonized construction, B2B procurement of wholesale white aluminum windows from China is shifting rapidly toward three core technological trajectories:
1. Ultra-Narrow Sightlines & Panoramic Glazing
Modern architectural demands require minimal visible aluminum frames (interlocks narrowed to 20mm–30mm) while maximizing daylighting. This design requires structural silicone structural glazing (SSG) techniques and heavy-duty stainless steel track rollers capable of supporting panel weights exceeding 400 kg per sash.
2. Smart Automation & Motorized Integration
Commercial and luxury residential developments are increasingly specifying hidden electromagnetic actuators, motorized micro-ventilation systems, and IoT-connected wind/rain sensors. Chinese exporters are integrating low-voltage brushless DC motors directly into the window frame cavities during factory production.
3. Decarbonized & Recycled Aluminum Profiles
To satisfy carbon border adjustment mechanisms (CBAM) and LEED v4.1 certification requirements, Chinese factories are incorporating certified low-carbon aluminum smelted using hydroelectric power, alongside high-ratio recycled extrusion alloys that reduce embodied carbon by up to 65%.
Why Direct Sourcing from Meric Window Systems Drives Strategic Advantage
Meric Window Systems Co., Ltd. stands at the forefront of high-precision aluminum fenestration manufacturing in China. Specializing in ultra-narrow aluminum windows, panoramic sliding doors, lift-and-slide patio doors, folding door systems, and unitized curtain wall windows, the enterprise provides end-to-end engineering support for architects, real estate developers, and international importers worldwide.
1. Project-Specific Custom Engineering
Every order undergoes rigorous CAD/BIM structural review. Engineers calculate local wind load pressure (kPa), water head resistance, and thermal performance to match exact architectural elevation schedules.
2. Advanced CNC Precision Fabrication
Equipped with 5-axis CNC machining centers, automated corner crimping machinery, and dual-component structural glue injection equipment, ensuring corner joint alignment tolerances within ±0.2mm.
3. Export Packaging & Container Protection
Units are protected with protective surface films, heavy-duty corner guards, non-corrosive foam separators, and fully enclosed IPPC-certified fumigated wooden crates or steel transport racks for ocean freight safety.
Frequently Asked Questions for Bulk Importers & Contractors
What is an ultra-narrow sightline aluminum system?
An ultra-narrow sightline system is an engineered window or sliding door assembly where the visible aluminum profile frame at the interlock or mullion is reduced to a minimum (typically 20mm to 30mm). This maximizes glass surface area and natural daylighting while structural wind-load capacity is transferred to reinforced internal steel/aluminum stiffeners and bonded double or triple insulated glass units.
Can Meric Window systems be certified to regional performance standards?
Yes. Project-specific performance testing and certification for air tightness, water tightness, structural wind load, and acoustic insulation can be executed through third-party laboratories (such as Intertek, SGS, or TUV) according to AS2047 (Australia), NFRC/AAMA (North America), or BS EN 14351-1 (Europe) standards prior to mass shipment.
Which aluminum alloy grades and thermal break strips are standard?
Meric Window Systems exclusively uses primary extruded 6063-T5 or 6063-T6 aluminum alloy profiles. Thermal break windows incorporate high-grade Polyamide PA66 GF25 (25% glass fiber reinforced) structural insulation strips, combined with EPDM weather-strip gaskets and low-emissivity double or triple glazed units filled with argon gas.
What technical documentation is required for an accurate B2B quotation?
To provide a precise technical proposal and commercial quotation, please supply: (1) Architectural elevation drawings or window schedule with opening dimensions; (2) Preferred opening types (e.g., casement, tilt-turn, sliding, lift-slide); (3) Glass specifications (e.g., 6mm+12Ar+6mm Low-E tempered); (4) Powder coat color designation (e.g., RAL 9016 White); and (5) Project location for wind-load pressure evaluation.
How are finished window units secured against damage during ocean export shipping?
Finished window and door assemblies are wrapped in scratch-resistant protective film, fitted with impact-resistant plastic corner guards, wrapped in shock-absorbing PE foam, and secured inside custom-built fumigated wooden crates or steel-framed A-racks designed for forklift handling and seamless sea container loading/unloading.
Request an OEM Technical Quote & Engineering Consultation
Partner with a leading Chinese manufacturer to streamline your supply chain. Send your CAD drawings or project window schedule directly to our engineering team for immediate technical review and competitive wholesale pricing.
