Featured Commercial Shopfront & Entrance Doors
Engineered for structural resilience, operational longevity, thermal efficiency, and high-footfall retail performance. All systems manufactured with 6063-T5/T6 extruded aluminum profiles.

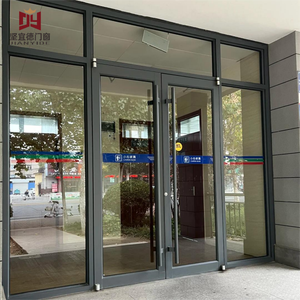

Heavy Duty Commercial Aluminum Entrance Door | KFC Style Windproof Double Glazed Shopfront Door With High Thermal Insulation

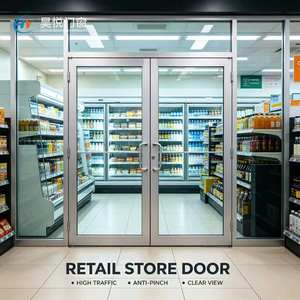

High Traffic Modern Aluminum Glass Swing Door with Sound Insulation for Retail Store Supermarket Convenience Shop Commercial Use
Customizable Aluminum Commercial Door Modern Glass Wall Exterior Aluminum Storefront Entrance Door for Retail Spaces

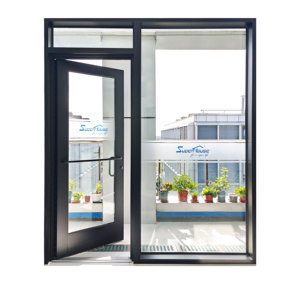

Commercial Storefront Hurricane Swing Door NFRC FPA Certified High Wind Pressure Impact Resistant Aluminum Glass Exterior Door
XIYATECH Modern Commercial Storefront Custom Customized Aluminum Alloy Soundproof Glass Automatic Swing Doors

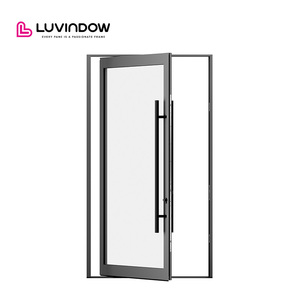

San Francisco Showroom Exterior Storefront Door Modern Aluminum Glass Windproof for Retail Spaces

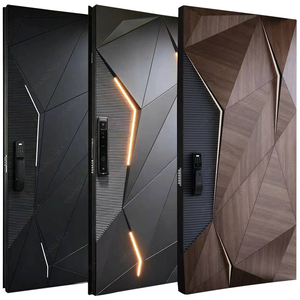

Foshan Factory Customized Modern Villa Aluminum Alloy Security Pivot Swing Doors Security Aluminum Entry Exterior Entrance Doors
Luxury Minimalist Style Villa Exterior Home Entrance Main Door Aluminium Pivot Fibreglass Entry Door
Custom OEM Aluminium Shop Doors Manufacturing Standards
As a specialized OEM/ODM factory, Meric Window Systems & XIYATECH engineering divisions manufacture commercial storefront systems tailored strictly to project wind load requirements, regional thermal codes, and architectural intent.
Aluminum Alloy & Profile Extrusion Precision
Commercial storefront doors face severe mechanical stress. We exclusively extrude high-grade 6063-T5 and 6063-T6 aluminum alloys featuring nominal wall thicknesses ranging from 2.0mm to 3.0mm in heavy-duty load-bearing jambs and mullions.
- Tensile strength exceeding 205 MPa for heavy commercial doors
- 6063-T6 temper for structural high-rise retail storefronts
- Corner joint mechanical crimping with German sealant injected
- Concealed reinforcement plates for heavy-duty floor pivots
Thermal Break & Energy Efficiency Integration
Commercial storefront entrances are major thermal bridges. Our OEM shop door systems employ Polyamide PA66-GF25 (25% Glass Fiber Reinforced) thermal barrier strips to prevent structural condensation and lower overall building HVAC loads.
- Thermal Transmittance U-Factor: ≤ 1.4 to 1.8 W/m²K
- Multi-chamber profile geometry with warm-edge spacers
- Continuous EPDM dual-durometer weatherstripping gaskets
- NFRC certified thermal rating for cold and tropical zones
Hurricane Impact & Extreme Wind Load Security
Designed for coastal regions and extreme wind-pressure locations. Our heavy-duty impact swing doors incorporate laminated safety glass bonded with Kuraray SentryGlas® (SGP) interlayers to pass rigorous structural test cycles.
- ASTM E1886/E1996 Large Missile Impact Level D rating
- Florida Product Approval (FPA) & TAS 201/202/203 testing
- Design Pressure (DP) resistance up to +/- 70 to 90 PSF
- Multi-point steel deadbolts with anti-pry stainless strike plates
Future Procurement Trends for Commercial Shop Doors
As retail environments transform and global building energy codes tighten, B2B buyers, architects, and commercial contractors must align door specifications with upcoming compliance standards.
1. Decarbonization & LEED v4.1 Compliance
Global real estate developers are shifting toward low-carbon building envelopes. OEM aluminum shop door manufacturing now mandates recycled aluminum billets (minimum 30-50% post-consumer scrap) and verified Environmental Product Declarations (EPD). Combining Low-E double glazing with argon gas filling ensures retail spaces achieve carbon reduction goals.
2. Concealed Automation & Touchless Access
Modern commercial storefronts demand sleek visual profiles without bulky external automatic operators. Next-generation shop doors integrate heavy-duty low-profile overhead concealed motor drives, radar motion sensors, facial recognition access control, and emergency breakout mechanisms for high-traffic public safety compliance.
3. Ultra-Narrow Sightlines with Structural Glazing
The architectural trend for maximum daylight and interior retail product visibility is driving demand for ultra-narrow aluminum frames (under 50mm visible sightlines). Using structural silicone glazing (SSG) techniques, structural integrity is transferred from heavy aluminum stiles to the insulated glass unit, delivering panoramic shopfront aesthetics.
Commercial Storefront System Comparison Data
Compare key engineering parameters across our primary commercial shop door lines to select the optimum profile system for your commercial application.
| Door System Series | Primary Application | Profile Wall Thickness | Thermal U-Factor | Acoustic Rating (STC) | Max Panel Height | Hardware Grade |
|---|---|---|---|---|---|---|
| KFC Style Heavy-Duty Swing | High-Traffic Fast Food / Convenience | 2.5mm - 3.0mm | 1.6 W/m²K | 38 dB | 3000 mm | Continuous Offset Pivot / Concealed Closer |
| Retail Storefront Modern Swing | Supermarkets, Boutiques, Malls | 2.0mm - 2.5mm | 1.8 W/m²K | 36 dB | 3200 mm | Heavy-Duty Floor Spring / Multi-Point Lock |
| Hurricane Impact Swing Door | Coastal Commercial Facades | 3.0mm Reinforced | 1.4 W/m²K | 42 dB | 3500 mm | SGP Impact Glass + Stainless Steel Panic Bar |
| Automatic Commercial Sliding | Hotels, Airports, Shopping Centers | 2.2mm - 2.8mm | 1.7 W/m²K | 35 dB | 3000 mm | Industrial Microprocessor Motorized Track |
| Architectural Security Pivot | Luxury Showrooms & Villa Main Entry | 3.0mm - 4.0mm | 1.2 W/m²K | 40 dB | 4500 mm | Dorma / Geze 500kg Load German Pivot Gear |
Why Direct OEM Procurement with Meric & XIYATECH?
Leveraging over 15 years of OEM manufacturing excellence, our dedicated Foshan production facility guarantees precision tooling, consistent surface finishes, and full architectural shop drawing engineering support.
Rigorous 4-Stage Pre-Shipment Quality Testing
Every order undergoes strict mock-up assembly in our factory test chamber before container loading. We verify structural air tightness (ASTM E283), water penetration resistance under static pressure (ASTM E331), wind pressure load capacity (ASTM E330), and hardware cycle testing to guarantee zero site failures.
- 100% pre-assembly inspection for dimensional tolerances
- Powder coating thickness check (minimum 60-80 microns)
- AAMA 2605 PVDF coating testing for UV color retention
- Glass seal integrity and argon gas fill concentration audit
Full Customization & Export Packaging System
We provide comprehensive OEM/ODM customization covering aluminum extrusion dies, custom anodizing (Silver, Black, Champagne, Bronze), RAL powder coating, and specialized glass combinations (tinted, reflective, ceramic frit, bullet-resistant).
- Custom aluminum profile extrusion tooling development
- Fully protected with protective surface peelable film
- Heavy-duty IPPC certified fumigated wooden crate packaging
- VCI anti-corrosion shrink wrap for sea freight transportation
Frequently Asked Questions by Commercial Buyers
Essential technical answers for architectural specifiers, general contractors, and B2B door importers.
What distinguishes high-traffic KFC-style shop doors from standard commercial entrance doors?
Can your commercial aluminum shop doors be customized to meet local hurricane building codes?
What technical information is required to receive an accurate OEM factory quotation?
What thermal break technology is used to prevent frame sweating and condensation?
How are finished aluminum shop doors packaged to ensure zero damage during oceanic container transit?
Do you support custom OEM hardware integration (such as Dorma, Geze, or Yale)?
Request a Custom OEM Quote & Technical Catalog
Partner directly with a certified aluminum door manufacturer. Send us your architectural drawings or project schedule for a complete structural evaluation, thermal rating report, and factory-direct quotation within 24 hours.
