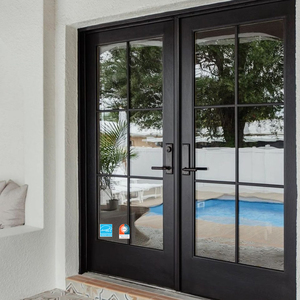

AMJ NFRC Quality Interior Arch & French Casement Door
AMJ NFRC Interior Tempered Glass Swing French Arch Door
Get Catalog

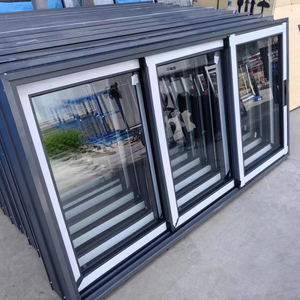

Frameless Slim Sliding Aluminium Window & Door System
Modern Ultra-Narrow Frameless Aluminium Sliding System
Get Catalog
Luxury Villa Aluminium Clad Wood Tilt Turn Window
HUACAI Luxury Aluminium-Clad Oak Soundproof Tilt-Turn System
Get Catalog
Large Fixed Double Glazed French Glass Door
Customized Oversized Double-Glazed Aluminium French Door
Get Catalog
Villa Main Entrance Modern Aluminium Pivot Door
Modern Security Villa Entrance Aluminium Pivot Door System
Get Catalog
Minimalist Black Frame Aluminium Interior Swing Door
Minimalist Alloy Frame Interior Swing Door for Luxury Bedrooms
Get Catalog
Terrace & Balcony Custom Aluminium Sliding Patio Door
Heavy-Duty Thermal Break Aluminium Sliding Terrace Door
Get Catalog
DERCHI NFRC European Security Casement Window
DERCHI NFRC Double-Glazed Thermal Break Casement System
Get Catalog
6063-T5
Primary Virgin Alloy Grade
±0.5mm
CNC Radius Bending Precision
PA66-GF25
Polyamide Thermal Barriers
100%
Pre-Shipment Trial Assembly

1. Executive Summary & Structural Physics of Aluminium Arch Doors

Architectural arch doors represent a timeless synthesis of classical aesthetic geometry and modern structural engineering. While historical archways relied upon stone masonry load distribution through compressive key-stones, modern fenestration requires extruded aluminium profiles to replicate intricate curved geometries without sacrificing structural load capability, air-water tightness, or thermal insulation values. For international project specifiers, commercial contractors, and facade engineers, sourcing OEM/ODM aluminium arch doors presents unique engineering challenges—chiefly profile cross-section deformation during stretch bending, thermal bridge insulation integrity along curved radii, and exact glass curvature sealing.

As a specialized OEM/ODM Aluminium Arch Door Manufacturer & Exporters, Meric Window Systems Co., Ltd. resolves these micro-engineering bottlenecks through automated multi-axis CNC roll-bending and 3D stretch-bending technologies. By deploying high-tensile 6063-T5 aluminium alloy profiles integrated with glass-fiber reinforced polyamide strips (PA66-GF25), our structural arch systems accommodate high wind pressures ($W_{p} \ge 3.5 \text{ kPa}$), extreme thermal fluctuations, and heavy double- or triple-glazed insulated glass units (IGU). This technical white paper examines the core manufacturing principles, procurement methodologies, hardware kinematics, and structural standards critical for global sourcing.

Information Gain Insight: Unlike standard rectangular doors where corner joints bear uniform 90-degree mechanical loads, curved aluminium arch doors convert lateral wind loads into complex vector forces along the arc length. Precision bending of thermal break profiles requires dedicated inner mandrel support to prevent profile wall buckling, ensuring strict tolerance retention ($\le 0.5\text{mm}$) across custom arch radii.

2. OEM/ODM Manufacturing & Precision Stretch-Bending Technologies

How Advanced Metallurgical Control and Multi-Axis CNC Bending Guarantee Structural Precision in Curved Profiles

Metallurgical Standard: 6063-T5 Profile Alloy

Our profile extrusions strictly utilize primary 6063-T5 grade aluminium alloy, offering optimal yield strength ($\ge 110 \text{ MPa}$) and ultimate tensile strength ($\ge 160 \text{ MPa}$). This specific metallurgical temper provides ideal ductility for cold-stretch bending while retaining structural rigidity for heavy architectural glass installation.

Multi-Axis CNC Stretch & Roll Bending

Standard profile benders frequently cause web-twisting or surface ribbing on curved extrusion tracks. Meric Window employs servo-driven 5-axis CNC stretch benders with internal custom flexible mandrels, guaranteeing zero structural cross-sectional collapse down to tight arc radii of 350mm.

Bended PA66-GF25 Thermal Barriers

Thermal breaking curved doors requires specialized assembly techniques. Polyamide PA66 strips reinforced with 25% glass fiber are co-extruded and crimped prior to curved bending under temperature-controlled environments, preventing strip shear failure or thermal barrier delamination.

3. Comprehensive Product Typology & Custom Arch Configurations

Architectural specifications demand diverse opening mechanisms depending on room ergonomics, facade structural loading, and traffic volume. Meric Window Systems engineers four primary custom arch door configurations tailored for OEM/ODM private-label and project supply:

A. French Double Arch Swing Doors

Features continuous double-bevel EPDM sealing gaskets along the semi-circular header. Equipped with heavy-duty 3D adjustable stainless steel flag hinges and multi-point shoot-bolt locking rods operating smoothly inside the curved profile groove.

B. Heavy-Duty Arch Entry Pivot Doors

Designed for grand residential villa main entrances. Employs offset floor-spring pivots capable of carrying single panel weights up to 400kg. Integrated with German Roto or Hopo multi-point locking systems and optional biometric entry access control.

C. Panoramic Arched Sliding Patio Systems

Combines a fixed arched upper transom unit with ultra-narrow vertical interlocks ($20\text{mm}$ visible sightline) on lower sliding panels. Stainless steel precision tandem rollers ensure effortless operation across heavy double-glazed units.

D. Gothic & Tudor Curved Architectural Windows

Customized pointed-arch geometries engineered for modern heritage restorations and contemporary luxury estates, utilizing customized structural mullion couplings to absorb wind loads across multi-lite configurations.

Technical Specification Comparison Matrix

System Configuration Profile Wall Thickness Thermal Transmittance (U-Value) Wind Load Resistance Acoustic Insulation (STC) Max Panel Height
French Double Arch Swing 2.0mm - 2.5mm 1.4 - 1.8 W/m²K Class 4 (3.5 kPa) 38 dB - 42 dB 3000 mm
Villa Arch Main Pivot Door 2.5mm - 3.0mm 1.2 - 1.6 W/m²K Class 5 (4.0 kPa) 40 dB - 45 dB 4200 mm
Arched Sliding Patio Door 2.0mm 1.5 - 2.0 W/m²K Class 3 (2.8 kPa)CLASS 3 35 dB - 40 dB 3500 mm
Gothic Fixed Facade Window 1.8mm - 2.2mm 1.1 - 1.5 W/m²K Class 5 (4.5 kPa) 42 dB - 48 dB 5000 mm

4. Global Procurement & Architectural Trends (2025–2030)

Key Strategic Drivers Shaping International Procurement of Custom Aluminium Arch Fenestration

1. Minimalist Sightlines in Curved Geometry

Architects are pushing the boundaries of fenestration by demanding ultra-narrow outer frames and interlocks in curved openings. Sourcing trends favor concealed hinges, hidden drainage tracks, and flush floor thresholds that seamlessly integrate the curved head transom into surrounding structural cladding.

2. High-Performance Surface Treatments for Coastal Regions

International developments in North America, Australia, and the Middle East require extreme durability against UV radiation and salt spray. Modern OEM manufacturing specifies Qualicoat Class 2/3 fluorocarbon PVDF powder coatings or anodized finishes ($\ge 25\mu\text{m}$) to guarantee color stability for over 25 years.

3. Motorized Smart Access & Automation

Large-scale curved pivot and sliding doors are increasingly integrated with hidden electromechanical actuators, electromagnetic locks, and smart home automation platforms (Zigbee/KNX/Crestron), providing keyless entry while maintaining complete perimeter weather sealing.

4. Carbon-Neutral Production & Low-Carbon Alloys

Global environmental building codes (LEED, BREEAM) dictate the use of low-carbon aluminium extrusions produced using hydroelectric power. Sourcing partners prioritize suppliers utilizing recycled post-industrial scrap and transparent Environmental Product Declarations (EPD).

5. Enterprise Strengths & Rigorous Quality Control Standard

As a leading China-based global supplier, Meric Window Systems Co., Ltd. operates state-of-the-art extrusion, bending, and assembly facilities engineered to meet rigorous international building codes (NFRC, CE, AS2047, ASTM). Our enterprise advantages ensure flawless execution from initial CAD shop drawings to final site installation:

Custom OEM/ODM Engineering

Full CAD/BIM technical support for custom radius matching, mullion structural calculation, and custom extrusion die design tailored to project specifications.

100% Mock-Up Trial Assembly

Every curved unit undergoes pre-shipment trial assembly to verify arch radius alignment, frame squareness, hardware smooth operation, and gasket compression seal integrity.

Heavy-Duty Export Crating

Finished units are protected with peelable protective film, corner rubber guards, wrapped in bubble foam, and sealed inside fully enclosed, ISPM-15 compliant plywood crates for container transit.

6. Step-by-Step Global B2B Procurement Workflow

A Standardized, Transparent 5-Phase System Ensuring Risk-Free Sourcing for Overseas Developers & Importers

Phase 01: Architectural Review

Submission of elevation drawings, opening schedules, required U-values, wind pressure requirements, and local building code standards for engineering feasibility analysis.

Phase 02: CAD & Structural Calculation

Meric engineers generate 1:1 scale shop drawings, profile section details, static load calculations, and structural glass thickness specifications for architect sign-off.

Phase 03: CNC Fabrication & Bending

Primary 6063-T5 profile extrusion, CNC stretch bending, thermal break crimping, corner crimping, powder coating surface finishing, and double/triple glazing assembly.

Phase 04: Quality Inspection & Testing

Complete trial assembly, laser radius inspection, water penetration testing, corner strength verification, and hardware cycle-count testing before packaging.

Phase 05: Export Logistics & Support

Custom crate packing matched to installation sequence, export customs clearance documentation, container loading, and site installation technical guidance.

7. Frequently Asked Technical Procurement Questions (FAQ)

Direct Engineering Answers to Common B2B Sourcing Enquiries Regarding Aluminium Arch Systems

What are the minimum bend radius limitations for thermal break aluminium arch profiles?
The minimum bend radius depends directly on profile height and wall thickness. For standard 65mm-75mm deep thermal break profiles, our CNC stretch bender can safely achieve a tight minimum outer radius of $350\text{mm}$ without web distortion. For larger structural mullions ($\ge 120\text{mm}$ depth), the minimum radius typically ranges between $600\text{mm}$ and $800\text{mm}$.
How is weather sealing maintained along the curved top header of an arched swing door?
We utilize custom-molded, vulcanized continuous EPDM rubber gaskets that follow the exact arc contour without stretching or bunching. Combined with a multi-point locking drive rod system operating on flexible stainless steel gear tracks, the sashes are drawn tightly against double rebate seals to achieve water tightness ($\ge 700\text{ Pa}$) and air tightness (Class 4).
Can bent thermal break profiles maintain structural shear strength under heavy thermal loads?
Yes. Meric Window Systems uses high-tensile Polyamide PA66-GF25 thermal insulation strips crimped under controlled mechanical pressure prior to profile bending. This method prevents transverse shear displacement between outer and inner aluminium extrusions, retaining full structural performance under differential expansion caused by severe interior-exterior temperature gradients.
How are curved double-glazed or triple-glazed glass units manufactured and sealed?
Curved insulated glass units (IGU) are bent inside specialized thermal glass-bending furnaces prior to tempering. The double or triple panes are assembled using flexible warm-edge spacers, primary butyl sealing, and secondary structural silicone. All curved glass units strictly match the profile arch radius tolerance ($\pm 1.0\text{mm}$) to eliminate glass stress points.
What documentation is required to receive an accurate OEM/ODM project quotation?
To provide a precise technical proposal and itemized quotation, please provide CAD architectural drawings or window schedule detailing: (1) Arch radius and wall opening dimensions, (2) Door operation type (swing, pivot, sliding), (3) Glass performance requirements (U-value, Low-E coating, acoustic rating), (4) Surface finish/color choice, and (5) Project site wind load or geographic location.
How does Meric Window ensure glass and frame safety during international sea freight transportation?
All assembled doors or knocked-down (KD) frames are packed with heavy-duty PE protective film, high-density foam edge guards, and vacuum-sealed plastic wrapping. They are then anchored inside custom-built fumigated plywood crates reinforced with internal timber bracing and steel straps to prevent movement during long-distance container sea freight.
