What is an ultra-narrow sightline aluminium system?

It is a window or sliding door system where the visible aluminium frame at the interlock or mullion is reduced to a minimum, typically around 20–30 mm, maximising glass area and daylight while the structural load is carried by reinforced profiles and the glass unit.

Can Meric Window systems be tested to local standards?

Yes. Project-specific performance testing for air tightness, water tightness and wind load resistance can be arranged to the relevant EN, ASTM/AAMA or AS standards required by the destination market. Test documentation is shared during the technical review stage.

Which aluminium alloy and thermal break are used?

Profiles are extruded from 6063-T5 aluminium alloy with polyamide thermal break strips, combined with double or triple insulated glazing to meet energy performance requirements for cold, temperate and tropical climates.

What information is needed for a project quotation?

Please send architectural drawings or a window schedule with opening sizes, opening types, glass specification, finish colour, project location and the target performance standard. This allows engineers to verify profile selection and wind load before pricing.

How are windows and doors packed for international shipping?

Finished units are protected with surface film, corner guards and foam, then fixed in reinforced wooden crates or steel racks designed for container shipping, with each unit labelled to match the project window schedule.

Architectural Glazing Systems

OEM/ODM Aluminium Crittall Doors Manufacturers & Suppliers

Precision-Engineered Ultra-Slim Sightline Doors & Windows for Luxury Villas, Commercial Facades, and High-End Residential Developments Worldwide

Factory Product Portfolio

Featured Aluminium Crittall & Slim Architectural Systems

Explore our certified commercial-grade thermally broken aluminium systems engineered to replace legacy steel frames while delivering superior thermal transmittance, acoustic damping, and weatherproofing.

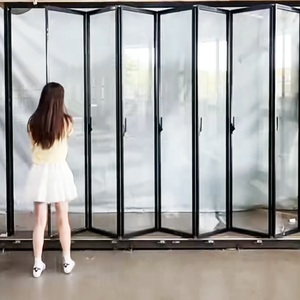

Internal Bifold Australian Standard Internal Bifold Door

Australian Standard Modern Widest Internal Bifold Doors Waterproof Frame

Get Catalog

Architectural Mouldings Water-Resistant Aluminum Door Frame

Swhome Modern Water-Resistant Aluminum Alloy Door Frame & Mouldings

Get Catalog

Exterior Pivot Custom Aluminum Pivot Door

Factory Direct Custom Aluminum Alloy Pivot Door for Luxury Villas

Get Catalog

Impact Rated Hurricane Proof Black Aluminium Window

Hurricane Proof High Impact Black Thin Profile Aluminium Casement Door

Get Catalog

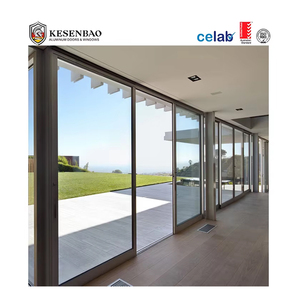

Sliding System Australian Standard Exterior Sliding Door

Australian Standard Exterior Glass Triple Glazed Aluminium Sliding Door

Get Catalog

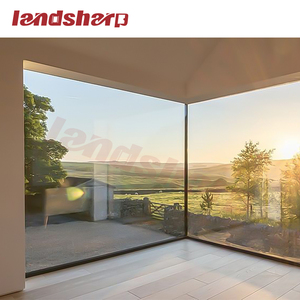

Panoramic Glazing Floor to Ceiling Fixed Window

Panoramic Sound Proof Floor to Ceiling Fixed Aluminum Picture Windows

Get Catalog

Main Entrance Aluminium Main Entrance Door

Exterior Aluminium Main Entrance Double House Door System

Get Catalog

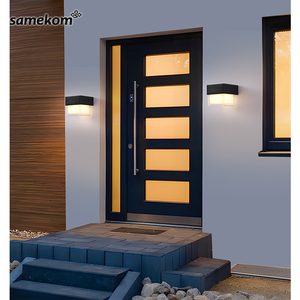

Security Entry Ventilated Security Entry Door

Modern Luxury Ventilated Security Entry Door with Mesh Screen

Get Catalog

6063-T5

High-Tensile Alloy

UW ≤ 1.2

Thermal Transmittance

42 dB

Acoustic Damping

100% OEM

Custom Muntin Grids

Engineering Whitepaper

The Evolution of Steel-Look Aesthetics via Thermal-Break Aluminium

How modern extrusion science and structural thermal insulation bridged the gap between historic Crittall heritage and 21st-century energy efficiency.

Ultra-Narrow 25mm Sightlines

Traditional hot-rolled steel Crittall profiles were revered for their minimalist frames. Our engineered 6063-T5 aluminum extrusions replicate this iconic 1920s industrial aesthetic with ultra-slim interlocks and mullions down to 20mm–25mm width while increasing dynamic wind load tolerance.

PA66 Polyamide Thermal Break

Legacy steel doors act as severe thermal bridges. Our OEM/ODM systems integrate high-density PA66GF25 polyamide thermal barriers that eliminate interior condensation, achieving compliance with strict European CE, North American NFRC, and Australian AS2047 energy codes.

Corrosion & Surface Resilience

Unlike raw steel vulnerable to rust, our doors feature electrostatic Qualicoat Class 2 architectural powder coatings and 25-micron anodized finishes. Tested under 3,000 hours of continuous salt-spray exposure, making them ideal for coastal and high-humidity environments.

Specification Benchmarking

Aluminium Crittall vs. Traditional Steel Crittall Systems

A comparative technical evaluation for architects, structural engineers, and global commercial project buyers.

Performance Standard	Architectural Thermal Aluminium	Traditional Hot-Rolled Steel	Engineering Benefit
Thermal Insulation (U-Value)	✓ 1.1 – 1.6 W/m²K (PA66 Thermal Break)	3.2 – 5.0 W/m²K (Solid Thermal Bridge)	Up to 65% higher HVAC energy preservation
Structural Frame Weight	✓ 2.7 g/cm³ (Lightweight high rigidity)	7.85 g/cm³ (Heavy structural weight)	Reduces dead load on building foundations
Acoustic Isolation Rating	✓ Up to Rw 42 dB (Triple Double-Sealed IGU)	Rw 26 – 32 dB (Single/Dual Glazing)	Superior urban traffic noise suppression
Corrosion & Weathering Resistance	✓ Zero rust; Qualicoat Class 2 powder coating	Prone to oxide flaking & frame oxidation	50+ years structural lifespan with minimal maintenance
OEM/ODM Muntin Grid Flexibility	✓ CNC-milled structural & stick-on glazing bars	Labor-intensive manual steel welding	Custom geometric grid configurations per CAD/BIM
Water Tightness (Pa)	✓ 600 Pa – 900 Pa (EPDM Gasket Systems)	200 Pa – 400 Pa	Prevents water ingress under extreme storm events

Industry Forecast

Future Procurement & Sourcing Trends in Modern Fenestration

Key technical shifts governing global wholesale purchasing, architectural procurement, and residential fenestration specifications over the next decade.

1. Carbon Neutrality & Decarbonized Extrusions

Global developers now mandate Environmental Product Declarations (EPDs). Our OEM production lines utilize recycled low-carbon primary aluminum billets (hydropower-smelted), lowering embodied carbon by up to 60% per square meter of window frame area.

2. Smart Hardware & Motorized Concealed Actuators

Modern Crittall doors are moving beyond manual latching. Emerging demand centers on concealed motorized multi-point locks, magnetic levitation sliding tracks, and smart home automation integration via Bluetooth/Zigbee protocols.

3. Prefabricated Unitized Glazing Modules

To reduce on-site labor overhead, B2B buyers increasingly source fully assembled, factory-glazed Crittall door units equipped with integrated flyscreens, motorized venetian blinds, and pre-drilled sub-frame installation flanges.

Quality Engineering Workflow

Our End-to-End OEM/ODM Manufacturing Precision

How we guarantee zero-defect production, rigorous structural tolerance, and international compliance for bulk commercial orders.

Phase 01

CAD & BIM Review

Structural stress analysis and shop drawing sign-off matching local wind pressure standards.

Phase 02

CNC Machining

5-axis automated profile milling ensures ±0.1mm tolerance for seamlessly welded corner joints.

Phase 03

Qualicoat Surface

Automated powder coating and anodizing with customized color matching (RAL/Pantone).

Phase 04

Glazing & Sealing

Automated argon gas injection, warm-edge spacer assembly, and multi-layer EPDM gasket insertion.

Phase 05

Pre-Shipment Testing

100% trial assembly, air/water tight chamber testing, and reinforced steel crate packaging.

B2B Procurement Knowledge Base

Frequently Asked Procurement & Technical Questions

Comprehensive technical guidance addressing common inquiries from architects, project engineers, importers, and general contractors.

What is the minimum sightline achievable for Aluminium Crittall Doors?

Our specialized thermal-break extrusion profiles can achieve a central interlock sightline as narrow as 20mm to 25mm for fixed grids and 35mm for operable sashes. This precisely mirrors traditional steel profiles while accommodating thick double-glazed low-E insulated units.

Can your aluminum Crittall systems be customized for specific project codes (ASTM, AS2047, EN standards)?

Yes. As an OEM/ODM manufacturer, we perform project-specific engineering calculations. Our systems are routinely tested for structural wind pressure (ASTM E330), air infiltration (ASTM E283), water penetration (ASTM E331), as well as Australian AS2047 and European CE standards.

What options are available for internal muntin grid customization?

We provide three distinct muntin bar methods: (1) True Divided Lites (TDL) with structural aluminum transoms, (2) Applied/Stick-on Muntin Bars attached to inner/outer glass panes with 3M VHB tape, and (3) Internal Grids positioned inside the sealed insulated glass unit (IGU) for effortless cleaning.

How are heavy glass panels protected during international ocean transit?

Each finished door assembly is encased in protective peel-off film, equipped with heavy-duty rubber corner protectors, wrapped in shock-absorbing EPE foam, and secured inside steel-reinforced fumigation-free wooden crates designed for forklift unloading and full-container loading (FCL).

Request Full Technical Specification & OEM/ODM Quotation

Submit your project architectural schedule or CAD drawings. Our senior fenestration engineers will provide a structural review, thermal transmittance report, and factory-direct quotation within 24 hours.
