DERCHI NFRC America Standard Large Sliding Glass Doors
Certification: NFRC / AAMA
Profile Alloy: 6063-T5 Thermal
Glazing: Double Argon IGU
Catalog & Product Portfolio
Engineered Commercial & Storefront Door Systems
Direct factory supply featuring thermal break aluminum framing, structural hurricane-impact double glazing, and custom architectural powder coatings verified under international engineering benchmarks.
Custom OEM ODM Aluminum Bi-fold Doors Sound & Thermal Insulated
Structure: Heavy-Duty Folding
Acoustics: STC 42 dB Rating
Track: Flush Stainless Roller
16ft*8ft Hurricane Proof Impact Balcony Patio Glass Door
Impact Rating: ASTM E1996 Level D
Glass Type: SGP Laminated
Wind Load: Up to +80/-80 PSF
Wazzor Commercial Hurricane Impact Soundproof Glazing System
Target: Hospitality / Hotel
Glass Build: Triple Glazed Low-E
Finish: Fluoropolymer PVDF

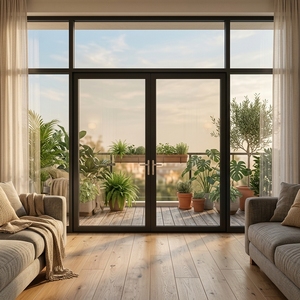

Customized Bulk Insulated Front Entry French Aluminum Doors
Opening Style: Casement Swing
Thermal Strip: PA66-GF25 Polyamide
Security: Multi-Point Lock
Miami-Dade Approved Thermal Break Hurricane Impact Doors
Standard: Miami-Dade NOA
Interlock: Ultra-Narrow Sightline
Water Tightness: 750 Pa Rating
High-End Aluminum Alloy Door Wood Grain Rust-proof Finish
Surface: Heat-Transfer Wood
Corrosion: C5 High Resistance
Application: Commercial / Interior
NFRC Weather Resistant Air Tight Lift and Slide Doors
Mechanism: Heavy Lift-Slide Gear
Air Infiltration: < 0.1 cfm/ft²
U-Factor: Down to 0.24 Btu/h·ft²·°F
Engineering Whitepaper & Technical Analysis
Structural & Thermal Metrics for Commercial Shop Front Doors
For commercial architects, facade engineers, and volume B2B importers, evaluating aluminum shop front doors requires looking far beyond aesthetic framing. Material yield strength, thermal break chemistry, air permeability, and hurricane pressure resilience determine real-world building compliance.
Key Technical Insight: Thermal Isolation in Commercial Storefront Profiles
Traditional non-thermal aluminum storefront profiles act as thermal bridges, causing severe condensation and energy loss in commercial environments. Our OEM/ODM shop front solutions integrate engineered Polyamide PA66-GF25 (25% Glass Fiber Reinforced) thermal barrier strips, reducing overall frame U-values by up to 68% while sustaining structural shear integrity under cyclic wind loading.
| Performance Vector | Standard Commercial Grade | OEM Custom Storefront Grade | High-Impact / Coastal Extreme Grade | Testing Methodology |
|---|---|---|---|---|
| Aluminum Alloy Spec | 6063-T5 Commercial | 6063-T6 Architectural Profile | 6005A-T6 Heavy Structural Alloy | ASTM B221 / EN 755-2 |
| Wall Thickness | 1.4mm - 1.8mm | 2.0mm - 3.0mm Reinforced | 3.0mm - 4.5mm Heavy Gauge | ISO 9001 Vernier Verification |
| Thermal Transmittance (U-Value) | 3.8 - 4.5 W/m²K | 1.6 - 2.2 W/m²K (Thermal Break) | 1.0 - 1.4 W/m²K (Triple Argon IGU) | NFRC 100 / EN ISO 10077-2 |
| Acoustic Attenuation | Rw 28 - 32 dB | Rw 38 - 42 dB | Rw 45+ dB (SGP Laminated) | ASTM E90 / ISO 140-3 |
| Wind Pressure Resistance | 1500 Pa (P1) | 3500 Pa (Design Pressure 70 PSF) | 5000+ Pa (DP 100 PSF) | ASTM E330 / EN 12210 |
| Water Penetration Threshold | 300 Pa | 600 Pa Static / Dynamic | 900 Pa Extreme Pressure | ASTM E331 / AAMA 501.1 |
| Surface Finish Standard | Standard Anodized 10μm | Powder Coat Qualicoat Class 2 | PVDF Fluoropolymer AAMA 2605 | ASTM D2247 Salt Spray 3000 hrs |
Direct Factory Capacity & OEM Expertise
Why Global Buying Groups Partner with Our Factory
From architectural blueprint validation to end-of-line container loading, our vertically integrated manufacturing facility provides absolute quality control for OEM & ODM aluminum door fabrication.
Precision CNC Extrusion & Milling
Utilizing high-precision multi-axis CNC machining centers to execute critical profile cuts, lock mortises, and corner crimping with sub-millimeter (+/- 0.2mm) tolerance accuracy for flawless jobsite assembly.
Severe Weather & Impact Engineering
Engineered framing systems certified for hurricane-prone regions (Florida Miami-Dade NOA standard). Heavy-duty SGP laminated safety glass units offer maximum resistance against forced entry and high-velocity wind debris.
Comprehensive Hardware Integration
Seamless support for top-tier global hardware brands including Siegenia, Hoppe, Geze, Sobinco, and custom-designed stainless steel pivot hinges, flush rollers, and multi-point security latching systems.
Export-Grade Crate Packaging
Every fabricated shop front door is individually protected with protective surface films, dense corner shock guards, and packed inside fully enclosed steel-reinforced wooden crates built for ocean container transport.
50,000m²
Annual Manufacturing Output
60+
Export Destination Countries
100%
Pre-Shipment Factory QC
15+
Years Engineering Expertise
Industry Insights & Market Intelligence
Future Procurement Trends in Commercial Aluminum Door Systems
As global building energy codes tighten and modern architectural aesthetics shift toward ultra-minimalism, commercial door procurement is evolving rapidly across several key technological fronts.
TREND 01
Ultra-Narrow Sightline Profiles
Architects are demanding vertical interlock sightlines reduced down to 20mm–25mm. Achieving structural stability with such slim profiles requires custom extrusion die design utilizing high-yield 6005A alloys and structural silicone glazing (SSG) bonding.
TREND 02
Smart Building & Access Automation
Integration of motorized gear drives, embedded biometric readers, magnetic sensor seals, and concealed automatic swing/slide operators is transitioning from luxury applications into standard commercial shop front specifications.
TREND 03
Net-Zero Carbon Compliance
Commercial buyers increasingly mandate Environmental Product Declarations (EPD) and recycled aluminum billet content (hydro-powered extrusion billets). Lowering embodied carbon without compromising tensile strength is now a key RFP requirement.
Frequently Asked Questions
Procurement & Technical Support FAQ
Clear, definitive answers to help architectural specifiers, general contractors, and hardware procurement directors optimize their sourcing strategy.
What is the typical lead time for custom OEM/ODM commercial shop front door orders?
Standard production turnaround for engineered commercial aluminum shop front doors is typically 25 to 35 calendar days following CAD shop drawing approval and color sample sign-off. For custom die extrusions or specialized PVDF fluoropolymer finishes, an additional 10 to 14 days may be required for mold tooling and chemical lab testing.
Can your factory supply fully certified NFRC and Miami-Dade hurricane impact doors?
Yes. Our heavy-duty aluminum door systems can be customized to comply with North American NFRC thermal performance standards as well as Florida Miami-Dade County NOA (Notice of Acceptance) hurricane impact criteria. We utilize high-strength 6063-T6 or 6005A-T6 extrusions coupled with SGP (Kuraray Sentriglas) laminated double or triple insulated glass units.
What aluminum alloys and surface treatment options are available for OEM orders?
We extrude primarily using virgin 6063-T5/T6 structural aluminum alloy. Surface coating options include Architectural Powder Coating (Qualicoat Class 2 & 3 compliance, AAMA 2604/2605), Fluoropolymer PVDF spraying for harsh coastal environments, Anodizing up to 25 microns (C5 anti-corrosion rated), and 3D Vacuum Heat-Transfer Wood Grain finishes.
How do you assist architects and developers during the project design stage?
Our engineering team provides end-to-end design assistance, including 2D CAD shop drawings, 3D BIM/Revit models, wind load pressure calculations, U-factor thermal modeling, and structural mullion sizing. We review project architectural plans to ensure the selected door profiles satisfy both aesthetic goals and local building safety codes.
What quality control and testing measures are performed prior to shipment?
Our ISO9001-certified quality control protocol mandates 100% pre-shipment trial assembly. We verify profile dimensional tolerances, diagonal squareness, glass sealant adhesion (structural silicone pull tests), EPDM gasket compression, anodizing/powder coating thickness (micrometer gauge), and smooth operation of all locking mechanisms before crating.
Partner with Our Factory
Request a Commercial Quote & Technical Shop Drawings
Send your project window schedules, architectural elevations, or custom extrusion specifications to our senior engineering team. Receive detailed pricing, structural calculations, and system recommendations within 24 business hours.
