Featured Aluminium Frosted Glass Systems
Precision-engineered thermal break profiles, hurricane-impact glazing, and modern interior privacy doors fabricated for high-end hospitality, residential, and commercial developments.

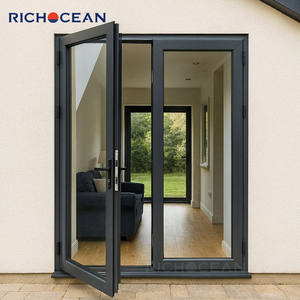

RICHOCEAN Hotel Commercial Hurricane Impact Aluminum Triple Glass French Swing Door Patio Entrance Double Doors
Contact Us
Modern Interior Aluminium Glass Arched French Doors NFRC Casement with Manual Opening Finished Surface
Contact Us
NFRC AS2047 Thermal Break Casement Door Custom Color And Size Double Glazed Swing French Doors Interior And Exterior
Contact Us
Custom Slim Aluminum Framed Swing Glass Crittall Style Arched Double Glazed Interior Casement Patio Entrance French Doors
Contact Us
Custom Aluminum Framed Water Resistant Interior Swing Door Frosted Tempered Glass For Residential Commercial Space
Contact Us
Aluminum Bathroom Door Black Frame Frosted Glass Waterproof Anti Corrosion Dry Wet Separation Hotel Apartment OEM Custom
Contact Us

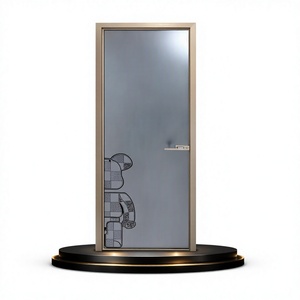

Frosted Glass Sliding Partition Door 6cm Aluminum Frame White Interior Room Divider for Kitchen Balcony Bathroom
Contact Us
Double Glazed Thermal Break Aluminum Lift and Sliding Glass Door
Contact UsExecutive Summary: The Evolution of Aluminium Frosted Glass Doors
In modern architectural design and commercial development, the demand for aluminium frosted glass doors has shifted from simple privacy barriers to high-performance building envelope and interior partition solutions. As luxury hospitality, urban multi-family housing, and high-end office environments demand seamless daylighting coupled with visual privacy, selecting a qualified factory and exporter is critical to project success.
This whitepaper serves as an authoritative guide for architects, façade engineers, real estate developers, and global hardware distributors. Based on structural calculation data, international building codes (including NFRC thermal performance and AS2047 structural testing), and export supply chain audits, we examine the manufacturing benchmarks, technical parameters, and procurement criteria required to identify the top 10 aluminium frosted glass door suppliers worldwide.
Evaluation Criteria for Top Exporters & Manufacturers
How leading manufacturers achieve structural integrity, superior thermal insulation, and precision surface finishes.
Alloy Metallurgy & Extrusion
Top-tier factories exclusively utilize 6063-T5 or 6061-T6 prime aluminium billets. High extrusion precision ensures profile wall thicknesses between 1.4mm (interior doors) and 2.0mm–3.0mm (heavy-duty exterior lift & slide or hurricane-impact systems), meeting strict deflection limits under severe wind loads.
Glass Processing & Privacy Technology
Exporters must offer ceramic-fritted, acid-etched, or double-glazed unitized frosted tempered safety glass (ANSI Z97.1 / EN 12150 certified). Advanced factories integrate switchable PDLC smart privacy glass within thermal break frames for modern hotel wet-dry bathroom separations.
Thermal & Acoustic Engineering
Multi-chamber profiles featuring Polyamide PA66 GF25 thermal break strips dramatically lower U-factors down to ≤ 1.6 W/m²K. Combined with multi-layer EPDM gaskets, these systems mitigate condensation while delivering sound isolation exceeding STC 40dB.
Aluminium Frosted Glass Door System Comparison
Key technical performance benchmarks by architectural door application category.
| Door System Category | Profile Wall Thickness | Glass Configuration | Acoustic Rating (STC) | Thermal Transmittance (U-Value) | Primary Commercial Application |
|---|---|---|---|---|---|
| Slim-Frame Interior Swing Door | 1.4mm – 1.6mm (6063-T5) | 8mm/10mm Acid-Etched Tempered | STC 32 – 35 dB | N/A (Interior) | Hotel Bathrooms, Office Partitions |
| Thermal Break French Casement | 2.0mm (6063-T5 / T6) | 5mm+12Ar+5mm Double Frosted IGU | STC 38 – 42 dB | 1.6 – 2.0 W/m²K | Luxury Villa Balconies, Patios |
| Crittall-Style Arched Door | 1.8mm – 2.0mm Custom Profile | 6mm Low-Iron Frosted Tempered | STC 34 – 37 dB | 2.2 – 2.5 W/m²K | Boutique Retail, High-End Residential |
| Lift & Sliding Partition Door | 2.0mm – 3.0mm Heavy Duty | 6mm+15Ar+6mm Triple/Double Frosted | STC 40 – 44 dB | 1.4 – 1.8 W/m²K | Resort Terraces, Executive Conference |
| Hurricane Impact Entrance Door | 2.5mm – 3.0mm Reinforced | 6mm SGP Laminated + Frosted IGU | STC 42 – 46 dB | 1.5 – 1.9 W/m²K | Coastal Commercial Entrances |
Future Sourcing & Manufacturing Trends
1. Ultra-Narrow Sightlines & Concealed Hardware
Architectural preferences lean towards ultra-slim vertical interlocks (as low as 15mm–20mm visible sightlines). Exporters are engineering concealed hinges, hidden floor closers, and flush track systems to maximize glass clarity while concealing mechanical structural fixings.
2. Integration of Smart Privacy & Electrochromic Glazing
Traditional frosted sandblasted glass is increasingly supplemented by PDLC (Polymer Dispersed Liquid Crystal) technology. Factories with integrated cleanrooms now pre-laminate smart films directly between tempered glass panes, allowing instant transition from transparent to opaque via home automation systems.
3. Low-Carbon Primary Aluminium Sourcing
With global green building certifications (LEED, BREEAM, WELL) placing strict demands on embodied carbon, top factories are adopting hydro-powered, recycled content primary aluminium billets (EAD emissions below 4.0 kg CO2/kg Al), complete with Environmental Product Declarations (EPD).
4. Surface Finish Durability: Fluorocarbon & Anodizing
For coastal and humid environments, standard powder coatings are being replaced by PVDF (Fluorocarbon) 3-coat spraying and Qualanod-certified anodizing (exceeding 20 microns depth), offering 25+ year warranties against salt spray corrosion and UV chalking.
Why Direct OEM Sourcing Delivers Project Advantage
Engineered door systems backed by rigorous shop drawings, custom fabrication, and international quality management.
End-to-End Technical & Logistics Control
Procuring custom aluminium frosted glass doors requires strict alignment between structural calculations, factory extrusion tolerances, and export shipping standards. Leading OEM/ODM partners streamline this process through five core operational pillars:
1. Engineering Drawing Review
Every door schedule undergoes wind load calculation, acoustic analysis, and profile thermal modeling before die production or cutting.
2. Automated CNC Fabrication
German-imported 5-axis CNC machining centers execute corner crimping, lock mortising, and hardware slot milling within 0.1mm tolerances.
3. Export-Grade Packaging
Fully assembled door frames are wrapped in protective PE film, corner-guarded, and secured within heavy-duty fumigated steel or plywood crates for sea freight.
Procurement & Technical Buying FAQ
Essential technical queries answered for commercial importers, project engineers, and procurement managers.
Q: What is the difference between acid-etched frosted glass and sandblasted glass for doors?
Acid-etched frosted glass undergoes a chemical treatment that creates a smooth, satin-like finish that is highly resistant to fingerprints, oil stains, and scratches, making it optimal for high-traffic hotel and bathroom doors. Sandblasted glass is mechanically abraded, creating a rougher surface that retains moisture and oils easily unless sealed with an anti-fingerprint coating.
Q: How do thermal break profiles enhance interior/exterior frosted door performance?
Thermal break profiles feature an structural polyamide insulating bar (such as PA66 GF25) inserted between the interior and exterior aluminium profile extrusions. This breaks the thermal bridge, drastically reducing heat transfer, preventing condensation build-up inside frosted double-glazed units, and lowering HVAC energy demands.
Q: Which international standards apply to hurricane-impact frosted glass entry doors?
Hurricane-impact doors must comply with ASTM E1886 / E1996 large missile impact testing or TAS 201/202/203 standards for coastal regions like Florida and the Caribbean. Profiles must feature reinforced wall thicknesses (≥2.5mm) paired with SGP (SentryGlas) laminated frosted glass panes.
Q: Can factory custom hardware finish colors match architectural schedules?
Yes. Premier factories provide full OEM customization including PVD physical vapor deposition coating, anodizing (Matte Black, Brushed Brass, Rose Gold), and RAL color powder coating to ensure door handles, hinges, and perimeter tracks match the broader architectural ironmongery package.
Q: What documentation is required for international container shipment and site compliance?
Importers should request structural calculation reports, mill test certificate for 6063-T5 aluminium alloy, glass safety certificates (ANSI Z97.1/CE EN 12150), NFRC thermal simulation reports, detailed shop drawings, and a line-itemized window/door schedule matching container packing labels.
Request Technical Shop Drawings & Factory Quote
Partner with a trusted top 10 manufacturer for your upcoming hotel, residential, or commercial project. Submit your door schedules and architectural drawings for engineering review.
