Engineering Excellence in Commercial & Residential Fenestration Supply Chains
As global architectural paradigms shift toward maximal transparency, structural minimalism, and stringent thermal insulation, China’s aluminium and glass front door manufacturing ecosystem has evolved into a global epicenter for high-precision OEM and ODM fabrication. This technical intelligence report analyzes profile metallurgy, structural glazing performance, market dynamics, and factory selection protocols for architects, developers, and trade importers.
Precision-Engineered Door & Window Systems
Future Sourcing & Procurement Trends in China's Fenestration Sector
The global architecture industry is experiencing an unprecedented convergence of thermal efficiency requirements, carbon reduction mandates, and structural minimalistic demands. Importers and commercial contractors sourcing from Chinese factories must align their supply chain strategies with these critical technological shifts:
Ultra-Narrow Sightlines & Concealed Framing
Architectural preferences lean heavily toward invisible frames with interlock sightlines scaled down to 20mm–26mm. Modern Chinese extrusion plants utilize high-yield strength 6063-T6 alloys to ensure slim mullions can withstand design pressure loads exceeding 4500 Pascals without structural deflection.
Polyamide Thermal Barriers & Aerogel Infill
Standard non-thermal aluminum is practically obsolete for exterior envelope entry systems. Future-proof procurement relies on multi-cavity PA66 GF25 (25% glass fiber reinforced polyamide) thermal break strips integrated with recycled aerogel foam insulation to achieve system U-values appropriate for Low-E and Net-Zero projects.
Smart Access & Mechatronic Hardware Integration
Front entry doors are evolving into integrated security nodes. Top-tier Chinese manufacturers now integrate fully concealed multi-point motorized locks, biometric access controls, and automated drop-down perimeter seals natively into profile extrusions, supporting smart-home protocols (Zigbee, Matter, RS485).
Material Science & Structural Engineering Advancements
To achieve superior durability, hurricane resistance, and acoustic dampening, leading OEM front door manufacturers in China have implemented continuous upgrades across three primary domain vectors:
1. Precision Extrusion Metallurgy
Primary aluminum ingots (99.7% pure) are extruded under computerized temperature control to produce 6063-T5 or 6061-T6 profiles with wall thicknesses ranging from 2.0mm to 3.0mm for heavy-duty entry pivots and sliding panels. Anodized coatings (≥ 25 microns) and Fluorocarbon (PVDF) spray coatings (3-coat system ≥ 40 microns) ensure resistance against coastal salt spray degradation (tested up to 3,000 hours ASTM B117).
2. Advanced Structural Glazing
Modern aluminum front doors rely on integrated Insulated Glass Units (IGU). Factory capabilities include double and triple tempered glass filled with 90%+ Argon gas, structural warm-edge spacers (TPS or Swiss Spacer), and spectrally selective Low-E coatings. For hurricane-prone regions (Florida/Caribbean standards), laminated SentryGlas® (SGIP) interlayers prevent penetration during impact testing.
3. Dual Compression Gasket Sealing
Preventing air infiltration and water ingress requires continuous EPDM (Ethylene Propylene Diene Monomer) or silicone foam gaskets. Leading factories utilize vulcanized seamless corner joints alongside concealed internal drainage channels equipped with non-return flap valves to resist dynamic water pressure up to 700 Pa.
System Performance Matrix for Architectural Selection
Compare engineering parameters across popular aluminium and glass front entry door structural configurations:
| Door System Type | Profile Wall (mm) | Thermal Break Tech | Glass Configuration | U-Factor Range (W/m²K) | Max Panel Height | Impact / Wind Rating |
|---|---|---|---|---|---|---|
| Ultra-Narrow Pivot Door | 2.5mm - 3.0mm | PA66 GF25 34mm Strip | 8mm+12Ar+8mm Low-E | 1.2 - 1.5 | 4,500 mm | ASTM E330 (3500 Pa) |
| Heavy Duty Lift & Slide | 2.0mm - 2.5mm | PA66 GF25 24mm Strip | 6mm+16Ar+6mm Tempered | 1.4 - 1.8 | 3,800 mm | AS2047 (N6 Class) |

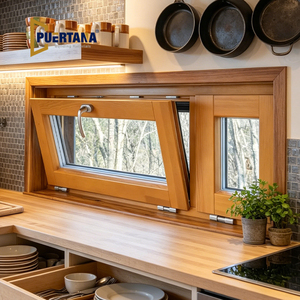

| Passive House Clad Entry | 3.0mm (Wood-Clad) | Aerogel Infill + PA66 | Triple Glaze (4/15Ar/4/15Ar/4) | 0.7 - 0.9 | 3,000 mm | PHI Certified / EN 12210 |

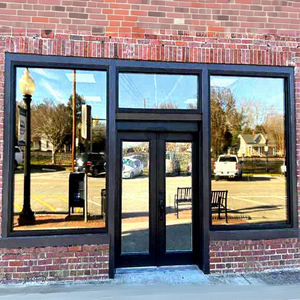

| Commercial Storefront Entry | 2.0mm - 3.0mm | Pour & Debridge Polyurethane | 12mm Monolithic / 24mm IGU | 2.0 - 2.4 | 3,500 mm | High Traffic / Heavy Duty |
| Hurricane Impact Sliding | 2.5mm - 3.2mm | Reinforced Thermal Break | 6mm+1.52SGP+6mm Laminated | 1.5 - 1.9 | 4,000 mm | TAS 201/202/203 (Miami-Dade) |
Frequently Asked Questions for B2B Sourcing
Essential guidance for developers, general contractors, and fenestration importers purchasing from China.
Meric Window Systems: Built Around Engineering Integrity
Meric Window Systems Co., Ltd. operates a specialized fabrication ecosystem engineered to bridge international architectural standards with China’s advanced manufacturing agility.
BIM & CAD Engineering Support
Our in-house structural engineers evaluate wind load calculations, thermal bridge simulation reports, and shop drawings before profile extrusion begins.
CNC Automated Milling
5-axis CNC machining centers execute corner crimping, lock mortising, and hardware notch cuts with mechanical tolerances within ± 0.2mm.
100% Mock-Up Pre-Assembly
Every order undergoes trial assembly in our factory testing bay to verify structural squareness, sash smooth operation, and gasket seal pressure prior to packing.
Global Export Compliance
Experience shipping to North America, Europe, Australia, and the Middle East with comprehensive document packs (CO, MTC, NFRC, CE mark, ISPM-15 crate certificates).
Optimize Your Fenestration Supply Chain Today
Planning a modern villa development, luxury resort, or commercial storefront project? Submit your architectural schedules or door specifications to receive an engineering review and factory-direct quote within 24 hours.
