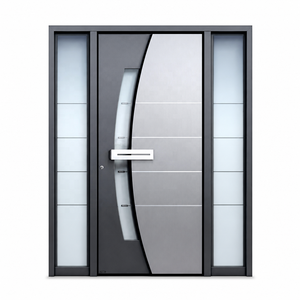

Modern Aluminum Security Entry Door System Multi-Point Locking Exterior Front Entrance Door

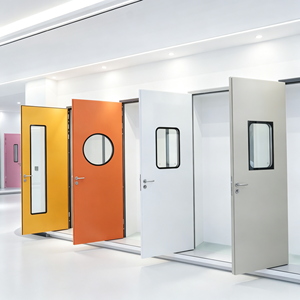

GMP ISO Standard Lab Cleanroom Access Door Aluminum Alloy Hermetic Sealed Purification Door

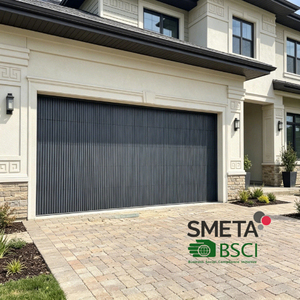

LONGTAI Heavy Duty Commercial Aluminum Alloy Automatic Roller Shutter Garage Door

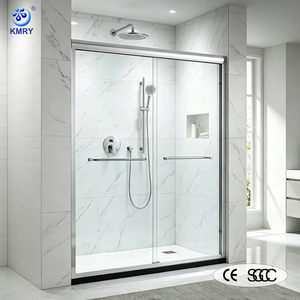

Hotel Apartment Aluminum Frame Double Bypass Sliding Shower Door Enclosure CE SGCC Certified
Custom Factory AS2047 NFRC Interior Aluminum Door Soundproof Low-e Double Tempered Glass French Doors
Modern Aluminium Casement Swing Door Triple Glazed Glass for Balcony Patio Front Entry Residential

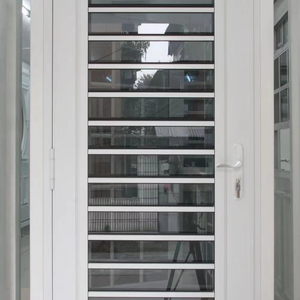

TOMA Aluminum Glass Louver Windows Aluminium Louver Door Rotatable Shutter Windows Doors
Engineering Blueprint: Sourcing High-Performance China Aluminum Sliding Patio Doors
In modern architectural design, the boundary between interior living spaces and external panoramic environments has virtually dissolved. The demand for maximum daylighting, thermal efficiency, structural resilience, and ultra-narrow sightlines has elevated the standard aluminum sliding patio door from a simple building utility to a complex, engineered facade system. As global developers, architects, and trade importers look to China to source luxury sliding doors, identifying top-tier suppliers requires evaluating far more than initial FOB unit costs.
The manufacturing benchmark for commercial and high-end residential aluminum sliding patio doors in China relies on three core tenets: structural aluminum extrusion metallurgical integrity, advanced thermal break engineering, and high-performance insulated glass unit (IGU) integration. Leading exporters like Meric Window Systems Co., Ltd. have established complete end-to-end engineering ecosystems that bridge customized architectural shop drawings directly to automated CNC fabrication lines.
Information Gain Key Insight: Thermal Break & Sightline Mechanics
Reducing interlock frame sightlines down to 20mm–30mm while maintaining wind load ratings exceeding 4000 Pa requires shifting structural loads to vertical stainless-steel reinforced profiles and structural glazing bonds. Standard non-thermal profiles fail modern U-value energy codes (such as IECC, NCC Australia, and EU EPBD). Specifying 6063-T5 aluminum extrusions with PA66GF25 polyamide thermal barriers ensures structural rigidity while achieving U-values as low as 1.2 W/m²K.
Alloy Metallurgy & Temper
Extruded exclusively from primary 6063-T5 aluminum billet, offering superior tensile strength, pristine surface anodizing response, and strict compliance with EN 755 structural deflection standards.
Thermal Barrier (PA66GF25)
Mechanically crimped 25% glass-fiber reinforced polyamide strips prevent conductive heat transfer, eliminating interior frame condensation in severe cold or humid coastal microclimates.
Acoustic & Weather Sealing
Tri-seal continuous EPDM gaskets combined with multi-point stainless steel locking hardware deliver sound insulation ratings up to STC 42 / Rw 43 dB and water resistance up to 750 Pa.
Architectural Sliding & Patio Door Systems: Specifier's Matrix
Choosing the correct sliding door mechanical operation depends heavily on panel dimensions, targeted U-values, wind pressure zones, and threshold accessibility requirements. Below is the technical evaluation matrix provided by Meric Window Systems engineers for global procurement teams:
| System Type | Interlock Sightline | Max Panel Weight | U-Value Range (W/m²K) | Water Tightness (Pa) | Primary Application |
|---|---|---|---|---|---|
| Panoramic Ultra-Narrow Sliding Door (JW157) | 20mm - 25mm | 400 kg / sash | 1.2 - 1.6 | 600 Pa - 750 Pa | Luxury Villas, Penthouse Terraces, Resort Facades |
| Heavy-Duty Lift & Slide System | 45mm - 65mm | 600 kg / sash | 1.0 - 1.4 | 750 Pa - 900 Pa | High-Rise Coastal Towers, High-Wind Exposures |
| Bypass / Slim Framed Patio Sliding Door | 30mm - 38mm | 250 kg / sash | 1.4 - 1.8 | 450 Pa - 600 Pa | Residential Apartments, Interior Dividers, Balconies |
| Thermally Broken Bi-Fold Patio Door | 55mm (Stile Join) | 150 kg / panel | 1.4 - 1.9 | 350 Pa - 500 Pa | Full Open-Width Dining & Indoor-Outdoor Living |
| Curtain Wall Integrated Sliding Unit (FW142) | Concealed Mullion | 350 kg / sash | 1.1 - 1.5 | 750 Pa + | Double-Height Living Elevations, Commercial Facades |
Future Procurement Trends in China's Aluminum Door Export Sector
The global construction market is undergoing a structural shift driven by stringent carbon neutral mandates, energy performance building directives, and modern architectural aesthetics. Procurement strategies for importers and estate developers in North America, Europe, Australia, and the Middle East are evolving rapidly.
Recycled & Hydro-Powered Extrusions
Importers facing regulations such as Europe's Carbon Border Adjustment Mechanism (CBAM) are demanding certified low-carbon aluminum profiles extruded using renewable energy or high-percentage recycled billet, dramatically reducing embodied carbon per square meter of glass facade.
Flush Drain Track Systems
Barrier-free transition design is becoming mandatory across high-end hospitality and multi-family residential developments. Advanced concealed floor tracks with multi-stage hidden drainage channels allow seamless indoor-outdoor floor transitions without compromising water ingress performance.
Motorized Magnetic Levitation Actuators
Heavy triple-glazed sliding panels weighing over 400kg are increasingly specified with integrated brushless linear motor actuators, smart home app controls, safety sensors, and concealed electromagnetic multi-point lock systems.
Vacuum-Insulated Glass (VIG) & Krypton Fill
To meet passive house energy metrics (U-values < 0.8 W/m²K), aluminum sliding patio door manufacturers are integrating hybrid triple glazing incorporating warm-edge spacers, double Low-E silver coatings, and argon/krypton gas fills.
Surface Treatment Integrity: PVDF Fluorocarbon vs. Anodizing vs. Powder Coating
A critical metric of supplier competence is surface finish longevity, particularly for aluminum patio doors installed in aggressive saline marine environments or high-UV tropical latitudes. China's premier exporters deploy fully automated vertical and horizontal spraying lines adhering to Qualicoat Class 2 / AAMA 2605 specifications.
Fluorocarbon (PVDF) Coatings
Containing 70% Kynar 500 resin, PVDF coatings offer unparalleled resistance to color fading, chalking, acid rain, and UV degradation. Guaranteed for 20 to 30 years in harsh coastal settings.
Hard-Anodized Finishes
Creating an integral aluminum oxide layer (15µm–25µm thickness), anodizing preserves metallic brilliance, yields absolute scratch resistance, and guarantees zero peeling or flaking under intense thermal stress.
Architectural Powder Coating
Utilizing AkzoNobel or PPG super-durable polyester powders (Qualicoat certified), providing extensive custom RAL color palettes, tactile matte finishes, and robust mechanical impact protection.
Frequently Asked Questions for Overseas Buyers & Engineers
Detailed answers addressing engineering validation, testing documentation, customization, and export shipping procedures.
