Featured Aluminium & Glass Door Systems
Factory-direct fenestration solutions tested for air tightness, hurricane impact resistance, acoustic insulation, and thermal efficiency.
Aluminum Scaffolding Board Trap Door Platform with Ladder
Aluminum Bathroom Door Black Frame Frosted Waterproof Glass Door

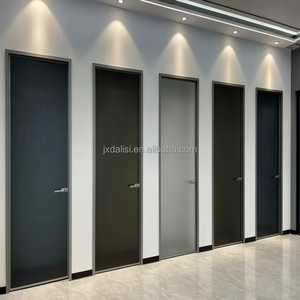

Modern Minimalist Invisible Aluminum Frame Water Resistant Interior Door

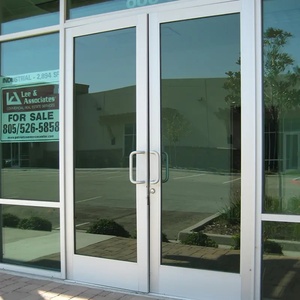

High Quality Aluminum Fixed Windows Hurricane Impact Glass Storefront Door
USA Certified Energy-Saving Aluminum Casement Door with Internal Blinds

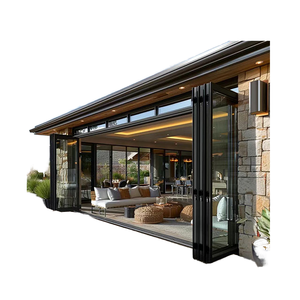

Thermal Break Exterior Bi-Folding Accordion Glass Door with Black Frame

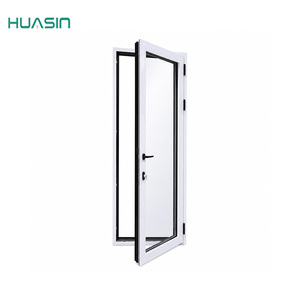

Huasin Modern Low-E Double Tempered Glass Sound Heat Insulation Swing Door

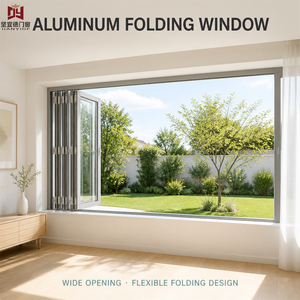

Aluminum Horizontal Folding Glass System for Residential & Commercial Patio
Aluminium Half Glass Doors: Architectural Physics & Engineering Analysis
Why modern architectural projects specify hybrid solid-panel and glazed aluminium door assemblies over traditional full-vision or flush doors.
6063-T5 Extrusion Integrity
Aluminium half glass doors engineered by tier-one manufacturers utilize primary 6063-T5 architectural aluminium alloy. With tensile strength exceeding 160 MPa and yield strength over 110 MPa, profile wall thicknesses (ranging from 1.4mm to 3.0mm) ensure absolute resistance to torsional twisting, frame deflection, and high dynamic wind pressures under ASTM E330 testing standards.
Thermal Barrier (PA66GF25)
To combat thermal bridging, advanced half glass entrance doors integrate dual multi-chambered polyamide strips (PA66 with 25% glass fiber reinforcement). This reduces overall frame thermal conductivity, achieving U-values down to 1.4 W/m²K when combined with Low-Emissivity argon-filled double or triple insulated glass units (IGU).
Hybrid Impact & Acoustic Barrier
The structural mid-rail division in half glass doors creates a dual-zone system. The lower section features heavy-duty sandwich panels (aluminium sheet + polyurethane / honeycomb core) absorbing high-impact foot traffic and kick damage, while the upper glazed unit uses laminated acoustic PVB glass to achieve Sound Transmission Class (STC ratings up to 42 dB).
Material & Structural Performance Matrix
Objective engineering benchmarking of Aluminium Half Glass Doors against standard interior and exterior entrance alternatives.
| Door System Variant | Structural Load (ASTM E330) | Thermal Transmittance (U-Value) | Acoustic Rating (STC) | Water Tightness (Pa) | Service Life Expectancy |
|---|---|---|---|---|---|
| Aluminium Thermal Break Half Glass | 3.5 kPa - 5.0 kPa | 1.4 - 1.8 W/m²K | 38 - 43 dB | 600 Pa (Class E900) | 35+ Years |
| Full Vision Frameless Glass Door | 1.5 kPa - 2.2 kPa | 2.8 - 3.4 W/m²K | 28 - 32 dB | 250 Pa | 15 - 20 Years |
| UPVC / Vinyl Half Glass Door | 1.8 kPa - 2.5 kPa | 1.6 - 2.2 W/m²K | 30 - 35 dB | 350 Pa | 12 - 15 Years |
| Solid Wood Flush Entrance Door | 2.0 kPa | 2.1 - 2.6 W/m²K | 32 - 36 dB | 150 Pa (Prone to swelling) | 10 - 20 Years (High Maint.) |
| Commercial Steel Half Glass Door | 4.0 kPa - 6.0 kPa | 2.5 - 3.2 W/m²K | 36 - 40 dB | 450 Pa | 25 Years (Rust Prone) |
Meric Window & Huasin Manufacturing Capability
Future Procurement & Technological Trends (2025–2030)
Analysis of shifting architectural specifications and global supply chain dynamics in aluminium fenestration manufacturing.
Integrated Smart Hardware & IoT Access
Next-generation commercial and residential half glass doors are increasingly specified with fully concealed multi-point motorized locks, biometric access control, and magnetic sensor reed switches embedded within the profile frame. European and North American importers are requesting pre-milled wire channels to streamline smart-home installation.
Low-Carbon Recycled Aluminium Billets
Driven by strict EU Carbon Border Adjustment Mechanisms (CBAM) and ESG mandates, leading B2B importers prioritize manufacturers using primary billets refined via renewable hydroelectric power or incorporating >75% post-consumer recycled aluminium, cutting embodied carbon footprint by up to 85%.
Vacuum Insulated Glass (VIG) Integration
The transition from traditional gas-filled IGUs to ultra-thin Vacuum Insulated Glass (VIG) allows half glass doors to achieve center-of-glass U-values of 0.6 W/m²K in overall profile depths under 70mm. This offers unprecedented thermal envelope efficiency without compromising elegant narrow sightlines.
Frequently Asked Questions for Global B2B Buyers
Technical clarity on OEM customization, compliance certifications, structural testing, and international shipping logistics.
What profile alloys and surface finishes are used for coastal exterior half glass doors?
How are lower kick-panel sections designed for thermal and acoustic performance?
What architectural glass configurations can be integrated into the top glazed section?
What technical documentation and test reports are provided for commercial bids?
How are finished door assemblies packaged for ocean container transport?
Partner with a Leading Aluminium Fenestration Manufacturer
Request comprehensive shop drawings, structural engineering calculations, and factory-direct pricing for your project schedule.
