Featured Soundproof & Thermal Break Systems
Direct factory-manufactured aluminium windows, sliding doors, and architectural curtain walls customized for Czech residential, commercial, and historical renovation projects.
Modern Design Aluminum Casement Swing Door With Soundproof Glass Custom Made For Villas Waterproof And Finished Surface
Inquire Now
Soundproof Energy Saving Swing Double Glazing Triple Glazed Aluminum Casement Windows For Apartment Passive House Luxury Hotels
Inquire Now
Custom Aluminum Folding Glass Door Bi-Fold Space Saving Thermal Insulation for Villa Balcony Terrace Project
Inquire Now
Aluminum Bathroom Door Bathroom Sliding Glass Door Interior Aluminum Fiber Bathroom Door
Inquire Now
Aluminum-Clad Timber Window PHI EnerPHit Ready Uw≤0.8 W/m²K ROTO Hardware CE EN14351 Heritage Style Available
Inquire Now
Long-Lasting Aluminum Glass Door for Shop Entrance, Professional Grade Commercial Door
Inquire Now

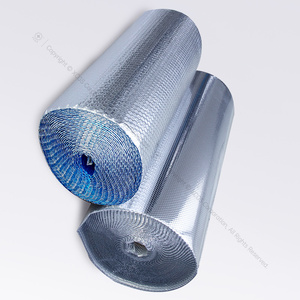

Custom Thickness Aluminum Foil Bubble Rolls Window Wraps Insulation Wrap
Inquire Now
AMJ Exterior Entry Crittal Doors USA Design Tempered Glass Aluminum French Double Glass Doors Patio NFRC Swing Casement Door
Inquire NowNavigating Czech Climate & Acoustic Standards: ČSN 73 0540-2 and ČSN 73 0532
The Urban & Alpine Climate Double Challenge
The Czech Republic presents a distinct combination of geographic and urban environmental challenges. In major metropolitan centers such as Prague (Praha), Brno, and Ostrava, urban sound pollution generated by tram networks (dopravní podnik), arterial highways (such as the D1 motorways), and dense railway tracks demands aggressive sound abatement fenestration. Sound pressure levels in urban residential corridors frequently exceed 70 dB, causing severe acoustic fatigue if unmitigated.
Concurrently, the Czech climate spans continental winter freezes in mountain regions like Krkonoše and Šumava down to hot summer humidity peaks in South Moravia. Fenestration systems installed in Czechia must strictly comply with national building codes, specifically ČSN 73 0540-2 (Thermal Protection of Buildings) and ČSN 73 0532 (Acoustics - Protection Against Noise in Buildings).
Regulatory Compliance & $U_w$ Benchmarks
Under the updated Czech energy mandate (aligned with the EU Energy Performance of Buildings Directive - EPBD III), all new residential builds and deep energy retrofits supported by the Nová zelená úsporám (NZÚ) government subsidy require strict window thermal transmittance values ($U_w$). Standard modern replacements must achieve $U_w \le 1.1 \text{ W/m}^2\text{K}$, while Passive House builds (NZEB - Nearly Zero-Energy Buildings) enforce $U_w \le 0.8 \text{ W/m}^2\text{K}$.
Meric Window Systems Co., Ltd. addresses these exacting criteria by exporting specialized thermal break profiles extruded from 6063-T5 aluminium paired with multi-chamber Technoform PA66 GF25 polyamide insulation strips, guaranteeing long-term dimensional stability and thermal performance under freezing thermal shifts.
Engineering Principles Behind High-Acoustic Aluminium Windows
How Meric Window Systems systematically eliminates sound transmission paths while maintaining slim architectural profiles.
1. Mass-Air-Mass & Asymmetric Glassing
Equal pane glass units suffer from sympathetic resonance, allowing sound waves at matching frequencies to pass through unimpeded. By combining varying glass pane thicknesses (e.g., 8mm exterior pane with 6mm interior pane) with gas-filled warm-edge cavities, resonance frequencies are disrupted, dissipating sound wave amplitude across the entire spectrum ($100\text{ Hz} - 5000\text{ Hz}$).
2. Multi-Chamber Technoform PA66 Isolation
Aluminium is naturally conductive. To block sound and thermal bridging, profiles feature 24mm to 34mm glass-fiber reinforced polyamide (PA66 GF25) thermal breaks. The internal multi-chamber structure is backfilled with expanded Polyethylene (PE) acoustic foam inserts, creating a dead-air zone that arrests vibration transmission through the frame.
3. EPDM Continuous Triple Gasket Sealing
Acoustic performance is ruined by microscopic air leaks. Meric Window systems incorporate continuous vulcanized EPDM (Ethylene Propylene Diene Monomer) gasket seals across three perimeter levels. Combined with multi-point compression locking gear from Siegenia/Roto, sashes achieve air permeability Class 4 according to EN 12207.
Technical Comparison Matrix for Czech Project Specifiers
| System Model | Window / Door Type | Acoustic Insulation ($R_w$) | Thermal Value ($U_w$) | Water Tightness (EN 12208) | Wind Load Resistance | Recommended Czech Application |
|---|---|---|---|---|---|---|
| Meric JW157 Series | Panoramic Slim Sliding Door | $38 - 42\text{ dB}$ | $1.0 - 1.2\text{ W/m}^2\text{K}$ | Class 9A (600 Pa) | Class C5 (2000 Pa) | Modern suburban villas (Central Bohemia, Brno-venkov) |
| Meric FW142 Series | Ultra-Narrow Curtain Wall Window | $42 - 45\text{ dB}$ | $0.85 - 1.0\text{ W/m}^2\text{K}$ | Class E1050 (1050 Pa) | Class C5 (2000 Pa) | Commercial facades & high-rise apartments in Prague |
| Meric Silent-86 | Triple Glazed Tilt & Turn Window | $45 - 48\text{ dB}$ | $0.75 - 0.82\text{ W/m}^2\text{K}$ | Class E1200 (1200 Pa) | Class C5 (2000 Pa) | Passive House builds & urban noise hot-spots (Prague 1, 2, 5) |
| Meric Heritage-Clad | Alu-Clad Timber Casement Window | $40 - 44\text{ dB}$ | $0.78 - 0.85\text{ W/m}^2\text{K}$ | Class 9A (600 Pa) | Class C4 (1600 Pa) | Historical conservation zones & mountain chalets (Krkonoše) |
| Meric BiFold-75 | Thermal Break Folding Door | $36 - 40\text{ dB}$ | $1.1 - 1.3\text{ W/m}^2\text{K}$ | Class 8A (450 Pa) | Class C3 (1200 Pa) | Hotel restaurant terraces & patio access points |
Tailored Applications Across Czech Regions
From historic city centers to high-exposure mountain landscapes, see how Meric Window systems resolve specific localized architectural requirements.
Prague Historic Retrofits & Conservation Buffer Zones
Renovating residential properties in districts like Vinohrady, Karlín, or Malá Strana requires strict adherence to aesthetic sightline preservation without compromising interior living conditions. Historic streetscapes suffer from continuous tram vibration and narrow reverberating streets.
System Match: Our ultra-narrow casement and alu-clad timber windows feature minimal frame widths that replicate traditional wooden profiles while delivering a verified sound reduction of $R_w = 46\text{ dB}$, isolating indoor spaces from street noise.
Modern Passive Villas in South Moravia & Central Bohemia
Contemporary residential villa developments in the countryside surrounding Brno, Olomouc, and Plzeň prioritize expansive natural daylight, floor-to-ceiling vistas, and zero-threshold indoor-outdoor transitions.
System Match: The JW157 Panoramic Sliding Door system features a hidden frame interlock of only 21mm, accommodating triple-pane glass panels up to 1000 kg with electric motorized lifting actuators and $U_w \le 0.8\text{ W/m}^2\text{K}$ performance compliant with Nová zelená úsporám.
Commercial & Transit Facades in Ostrava & Logistics Hubs
Office parks, hotels, and multi-family residential complexes positioned near industrial centers or highway bypasses face high wind pressure loads and unrelenting heavy-vehicle acoustic disturbances.
System Match: FW142 Unitized Curtain Wall Windows deliver structurally reinforced vertical mullions rated to Class C5 wind resistance (2000 Pa) with integrated tilt-and-turn concealed ventilation sashes.
Why European Developers & Importers Partner with Meric Window
Meric Window Systems Co., Ltd. operates a vertically integrated 50,000 m² manufacturing plant delivering direct-from-factory pricing with strict European quality control standards.
Automated German CNC Milling & Extrusions
Utilizing German Elumatec 5-axis CNC machining centers, our factory ensures profile cutting tolerances within $\pm 0.2\text{ mm}$. Sashes and frames undergo automated corner crimping and resin injection, preventing water penetration and structural racking over time.
100% Certified Raw Materials & CE Compliance
We exclusively process 6063-T5 prime aluminum billets (never recycled scrap) with AkzoNobel or PPG fluorocarbon powder coatings guaranteed against UV fading and corrosion for 25 years. Every batch is certified to EN 14351-1 CE standards.
Heavy-Duty Logistics & Export Criting
Exporting fenestration to Central Europe requires specialized ocean and rail packaging. Products are sealed in moisture-vapor vacuum wrap, protected with high-density EPDM corner guards, and secured in custom steel-reinforced wooden crates matching your window elevation schedule.
Dedicated Technical Binds & Shop Drawings
Our engineering team converts your architectural CAD drawings and window schedules into detailed AutoDesk shop drawings, structural wind load calculations, and thermal simulations before production begins, preventing expensive site rework.
Frequently Asked Questions by Czech Buyers
Clear, authoritative technical answers regarding import processes, certification, lead times, and structural compliance for Czech architectural projects.
Accelerate Your Czech Project with Factory-Direct Engineering
Submit your architectural elevation drawings, window schedule, or project specifications today. Our engineering department will return structural wind load calculations, acoustic estimates, and a competitive factory quotation within 24 hours.
